User's Guide ______________________________________________________________________
70 __________________________________________________________________ M210933EN-C
2.
Proceed to the Equipment view; see
a.
Scroll down the Available list box for USA-1.
b.
Click on the Add button to select USA-1.
c.
Double-click the Connector list for USA-1 in the I/O
Connections frame in order to select the COM port.
0711-136

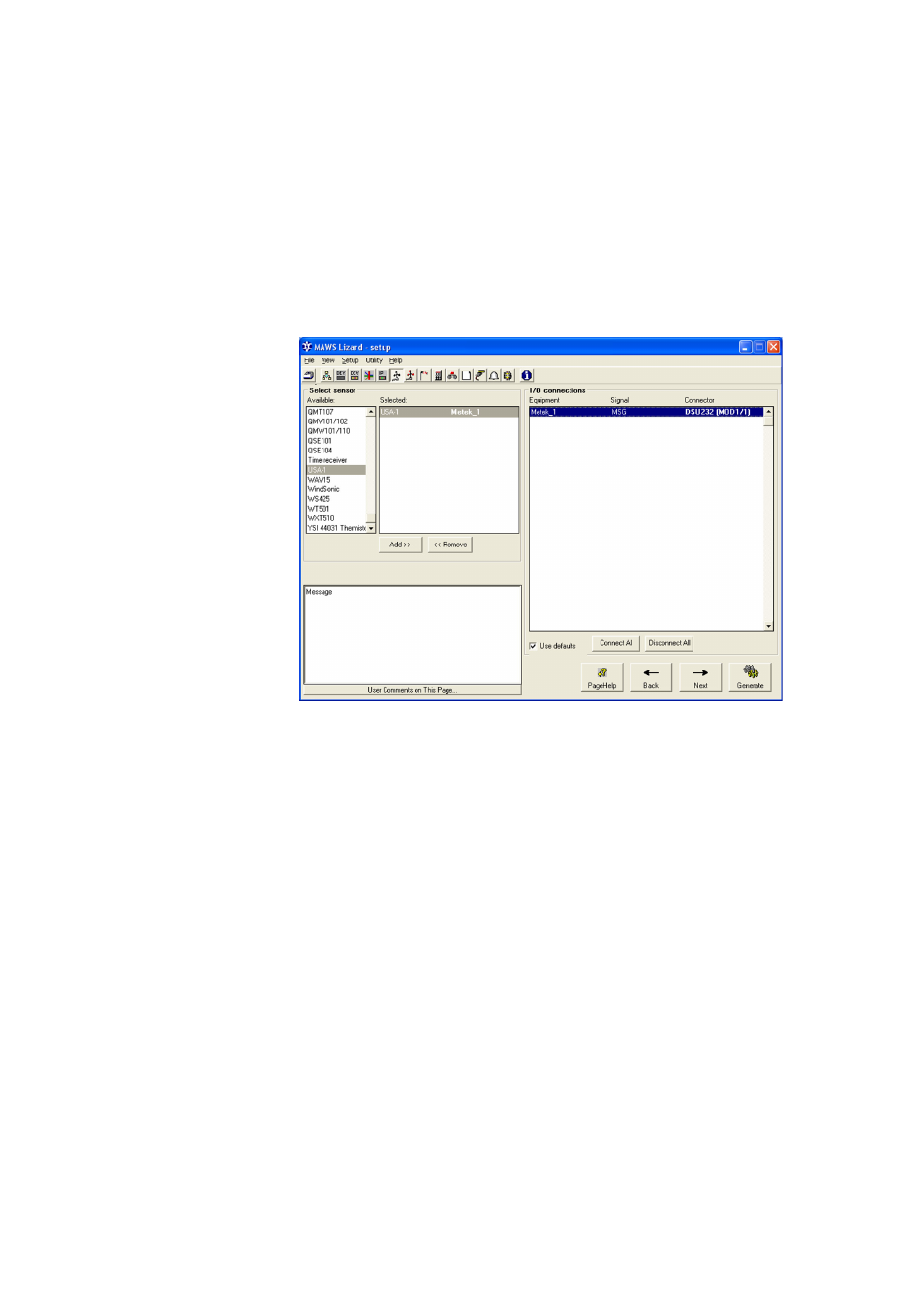

Figure 29
Equipment View: Selecting I/O Connection for
Ultrasonic Anemometer
Using Sensor Variables in Reports
You can use the variables received from the ultrasonic anemometer in
Lizard Setup Software like those from any other sensor.
To check which variables are available, proceed as follows:
1.
Select the Reports view; see
.
2.
Create a new report or select an existing one to include the
variables for the ultrasonic anemometer (Metek_1).
3.
Click Metek_1 in the Available list box in the Select variables
frame.
