Virtual COM Ports over Ethernet
Connection
This example illustrates a setup for using virtual COM ports over an
Ethernet connection provided by Ethernet Communication Module
DSE101. The configuration includes the following items:
-
Sending reports to a data acquisition system with a raw socket
interface
-
Reading data from a sensor via COM Server Module DXE421
-
Accepting an incoming IP service connection

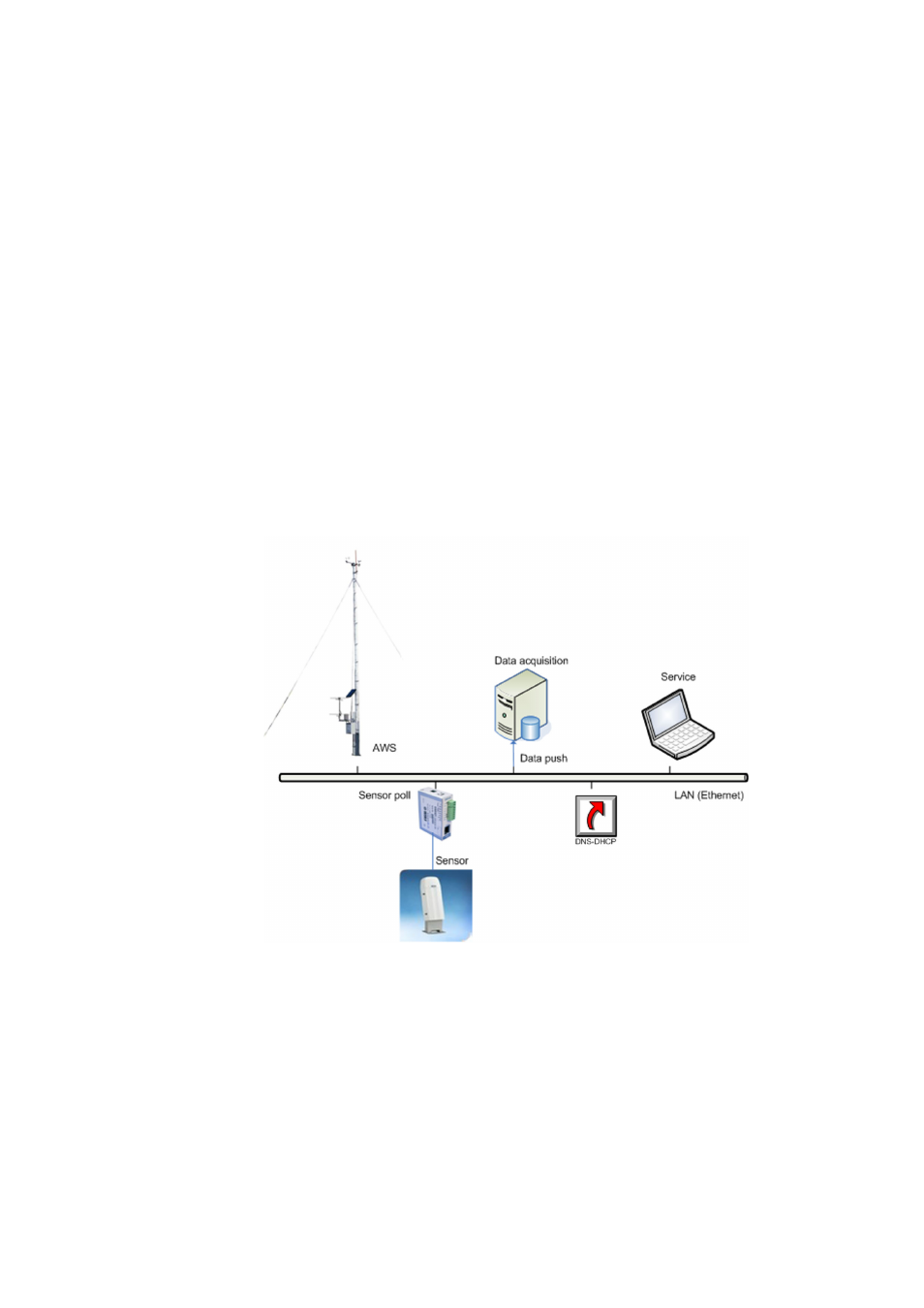

The network setup to be configured is illustrated in
0710-099
Figure 149
Weather Station with Ethernet Networking
