77
AIMB-210 User Manual
Appendix B
I/O Pin
A
ssignments

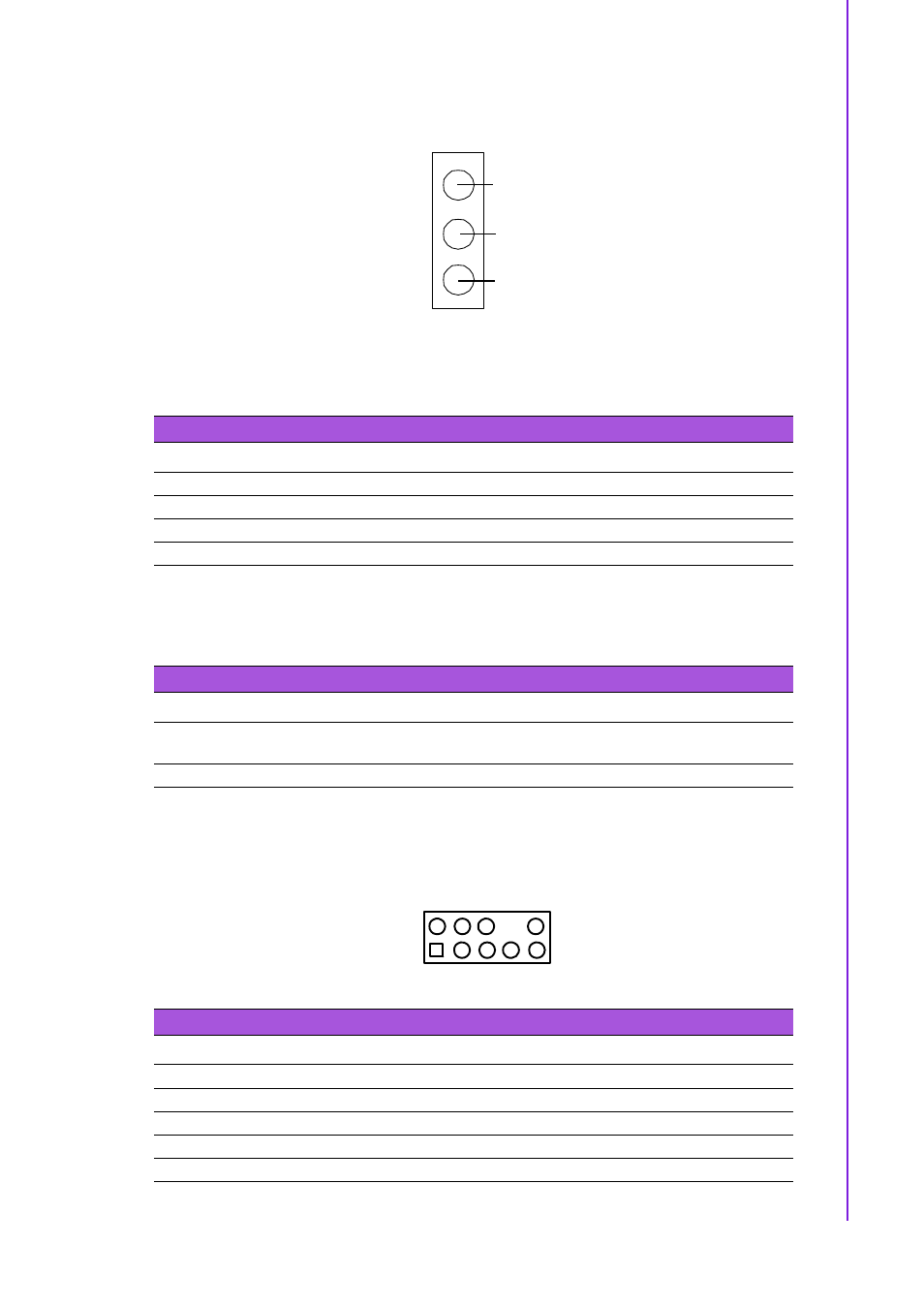

B.15
Line In, Line Out, Mic In Connector (AUDIO1)
B.16
Serial ATA0/1 (SATA1/SATA2)
B.17
AT/ATX Mode (PSON1)
B.18
AC-97 Audio Interface (FPAUD1)
Line Out
Mic In
Line In
Table B.16: Serial ATA 0/1 (SATA1/SATA2)
Pin
Signal
Pin
Signal
1
GND
2
SATA_0TX+
3
SATA_0TX-
4
GND
5
SATA_0RX-
6
SATA_0RX+
7
GND
8
Table B.17: AT/ATX Mode (PSON1)
Pin
Signal
Pin
Signal
1
#PSON_SIO
(to super IO)
2
#PSON
(to power supply)
3
GND
Table B.18: AT/ATX Mode (PSON1)
Pin
Signal
Pin
Signal
1
MIC-IN
2
GND
3
MIC_VCC
4
VCC
5
LRR
6
LOUT_R
7
JDO
8
NC
9
LRL
10
LOUT_L
1
9
1
