11
AIMB-210 User Manual
Chapter 1
G
eneral
Information
1.8.5

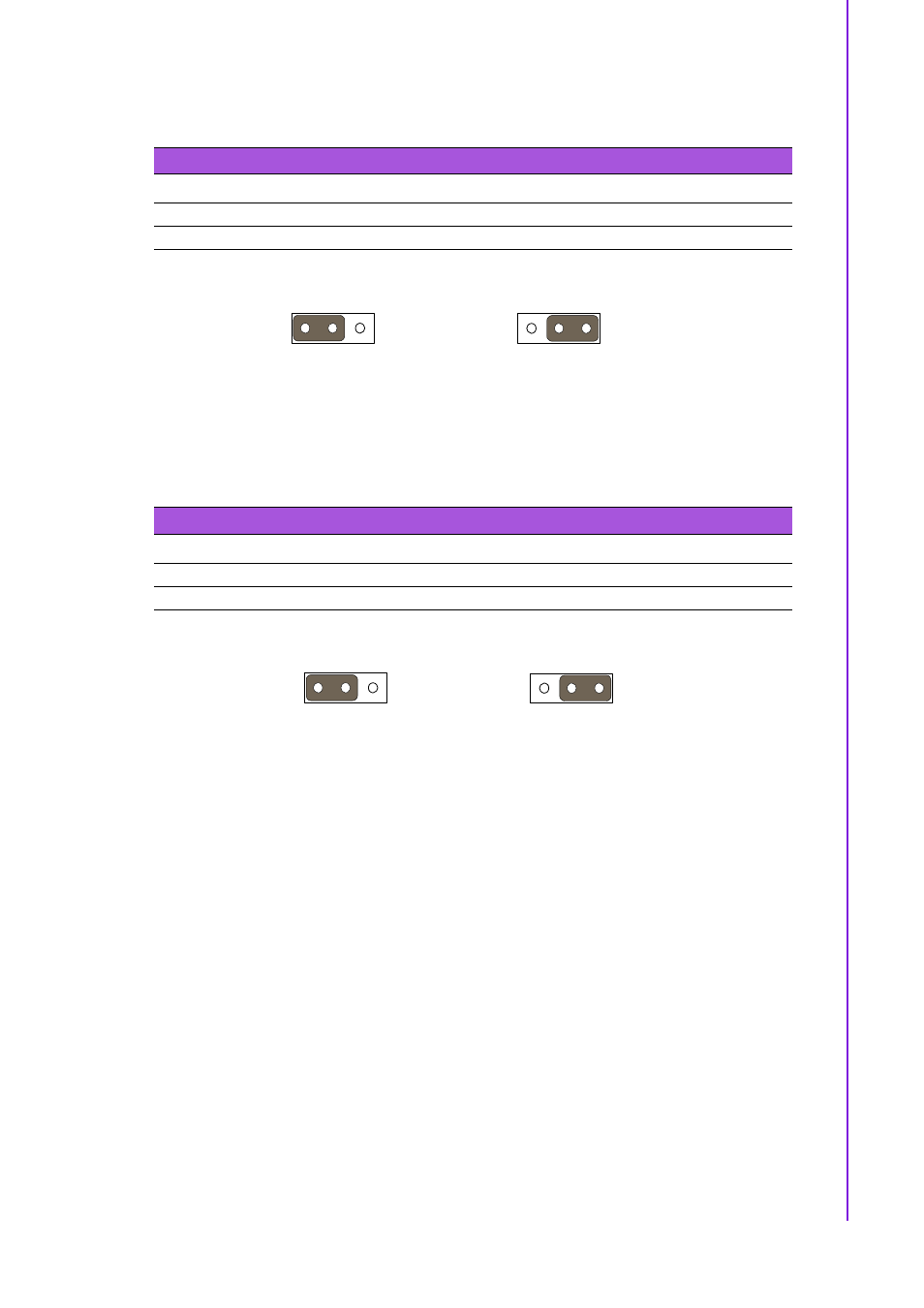

JPSON1: ATX, AT Mode Selector
*
Default
1 1
1.8.6
JWDT1: Watchdog Timer Output Option
*
Default
1 1
Table 1.6: JPSON1: ATX, AT Mode Selector
Closed Pins
Result
1-2
AT Mode
2-3*
ATX Mode
AT Mode
1-2 closed
ATX Mode
2-3 closed
Table 1.7: JWDT1: Watchdog Timer Output Option
Closed Pins
Result
1-2
NC
2-3*
System Reset*
NC
1-2 closed
System Reset
2-3 closed
