AIMB-210 User Manual 46

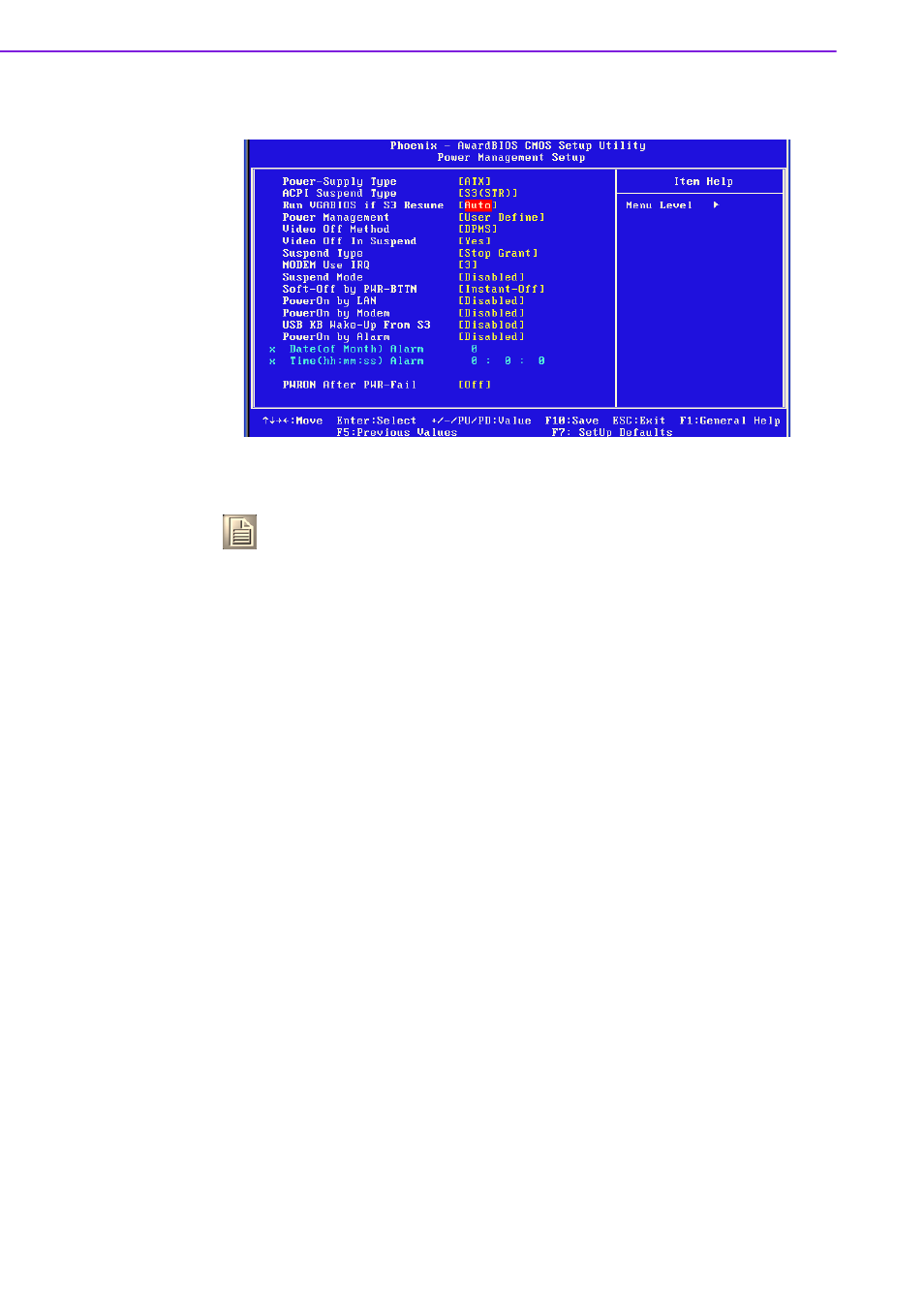

3.2.9 Power Management Setup
! Power-Supply Type [ATX]
This item allows user to set power-supply type, ATX or AT mode.
! ACPI Suspend Type [S3(STR)]
This item allows user to select sleep state when in suspend.
! Run VGA BIOS if S3 Resume [Auto]
This item allows system to reinitialize VGA BIOS after system resume from
ACPI S3 mode.
! Power Management [User Define]
This item allows user to select system power saving mode.
! Video Off Method [DPMS]
This item allows user to determine the manner is which the monitor is blanked.
! Video Off In Suspend [Yes]
This item allows users to turn off video when system is in suspend mode.
! Suspend Type [Stop Grant]
This item allows users to determine the suspend type.
Note! Adjust “Power management Setup” to configure the system to most
effective energy savings still consistent with the intended style of use.
S1(POS) The suspend mode is equivalent to a software power down;
S3(STR) The system shuts down with the exception of a refresh current to
the system memory.
Min Saving Minimum power management. Suspend Mode=1 hr.
Max Saving Maximum power management. Suspend Mode=1 min.
User Define Allows user to set each mode individually. Suspend Mode= Dis-
abled or 1 min ~1 hr.
V/H SYNC+Blank This option will cause system to turn off vertical and horizontal syn-
chronization ports and write blanks to the video buffer.
Blank Screen This option only writes blanks to the video buffer.
DPMS Initial display power management signaling.
