73
AIMB-210 User Manual
Appendix B
I/O Pin
A
ssignments

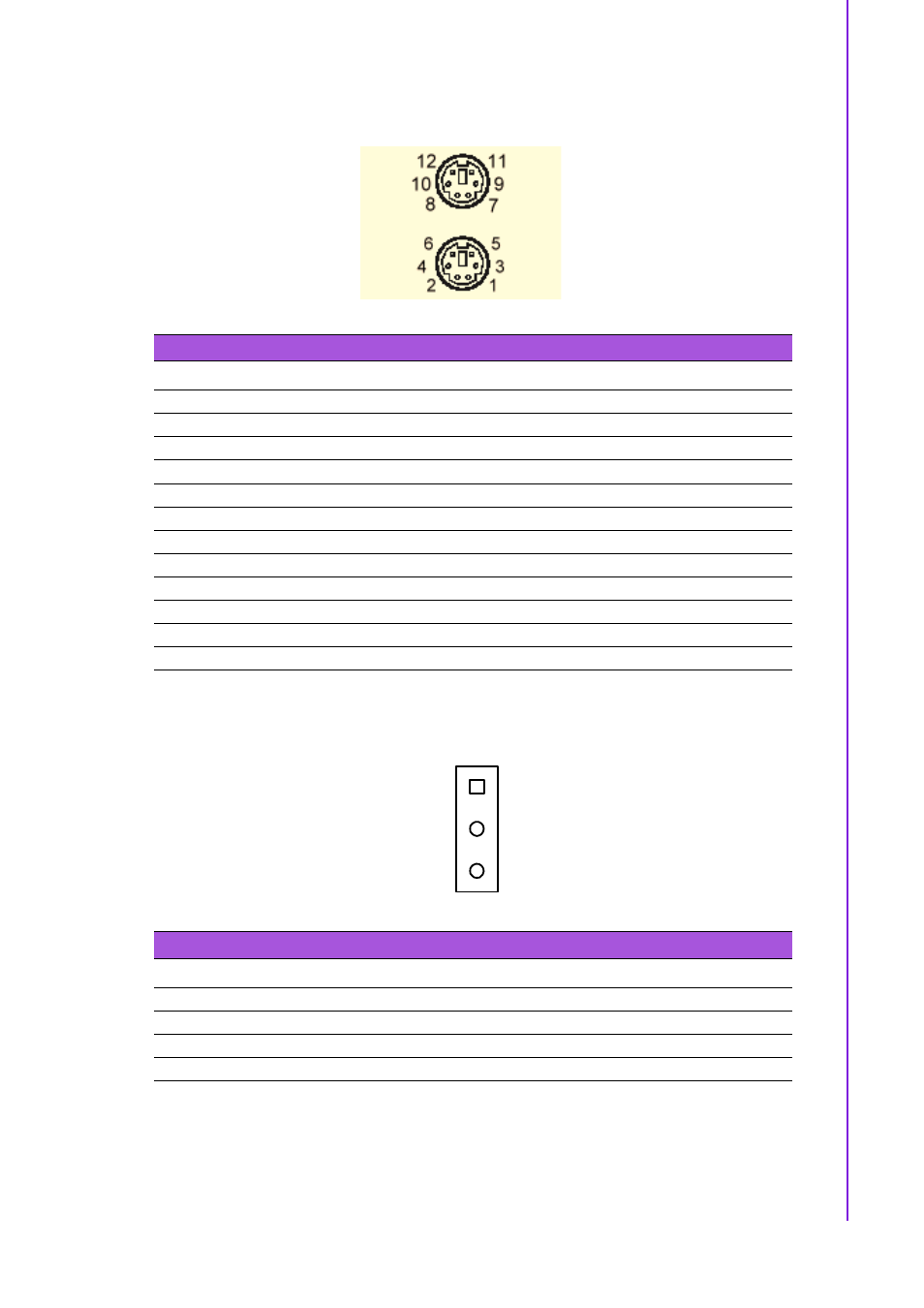

B.7
PS/2 Keyboard and Mouse Connector (KBMS1)
B.8
CPU Fan Power Connector (CPU_FAN1)
Table B.7: PS/2 Keyboard and Mouse Connector (KBMS1)
Pin
Signal
1
KB DATA
2
N/C
3
GND
4
KB VCC
5
KB CLK
6
N/C
7
M_DATA
8
N/C
9
GND
10
M_VCC
11
M_CLK
12
N/C
Table B.8: CPU Fan Power Connector (CPU_FAN1)
Pin
Signal
1
GND
2
+12 V
3
DETECT
4
PWM
1
2
3
