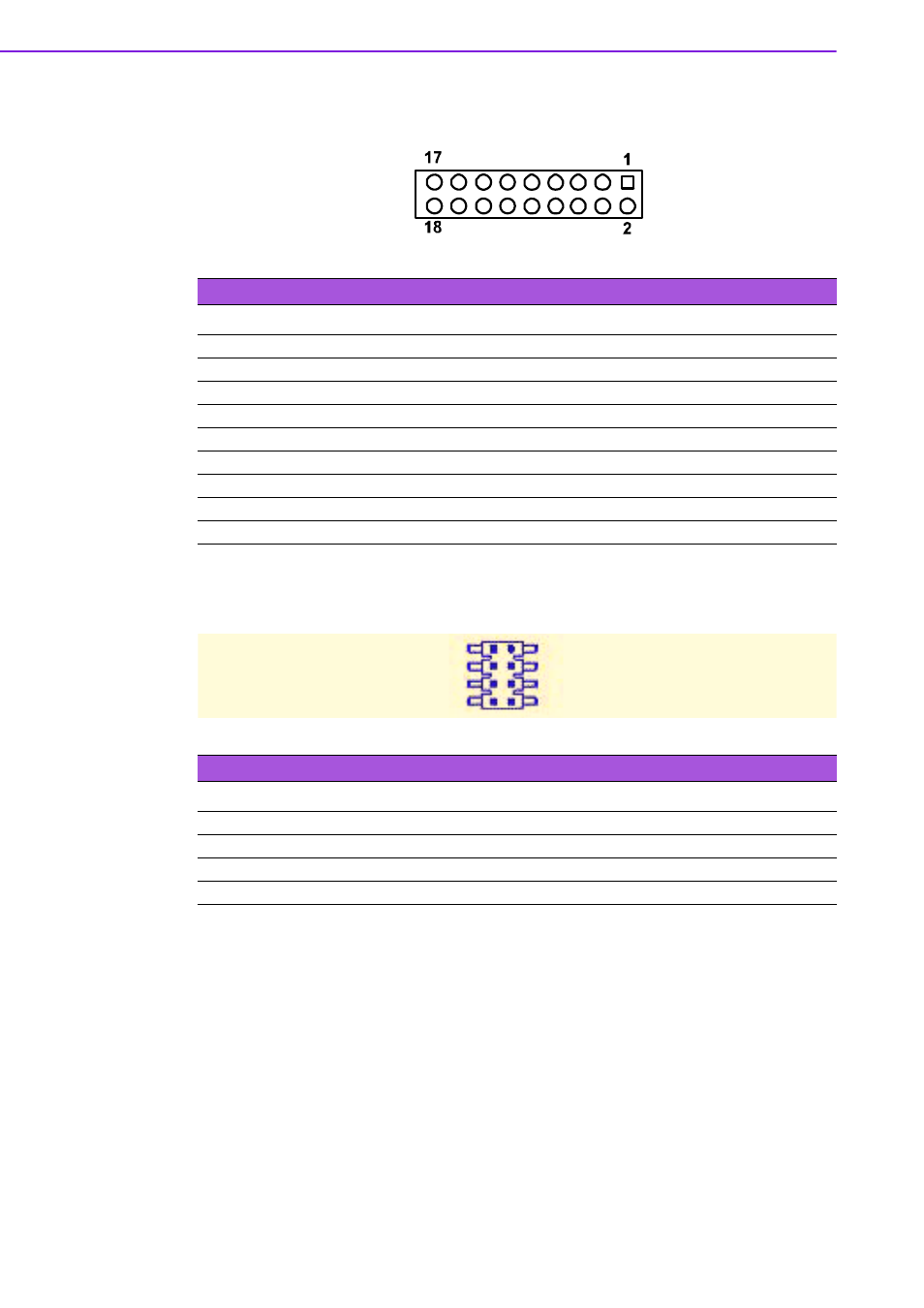

B.5
RS-232/422/485 Setting Interface (JETCOM2)
B.6
SPI_CN1: SPI Fresh Card Pin Connector
Table B.5: RS-232/422/485 Setting Interface (JETCOM2)
Pin
Signal
Pin
Signal
1
R_SINA
2
RXD485_1
3
R_SINA
4
RXD422_1
5
R_SINA
6
RXD232_1
7
DCDA
8
SOUTA
9
COM1_DCD#
10
COM1_SOUT
11
COM1_TXD485N
12
COM1_RXD485P
13
SINA
14
DTRA
15
COM1_SIN
16
COM1_DTR#
17
COM1_TXD485P
18
COM1_RXD485N
Table B.6: SPI_CN1:SPI Fresh Card Pin Connector
Pin
Signal
Pin
Signal
1
+F1_3V
2
GND
3
F1_SPI_CS#_Q
4
F1_SPI_CLK_Q
5
F1_SPI_MISO_Q
6
F1_SPI_MOSI_Q
7
NC
8
NC
1
2
8
7
