AIMB-210 User Manual
76
B.13
ATX Power Connector (EATXPWR1)

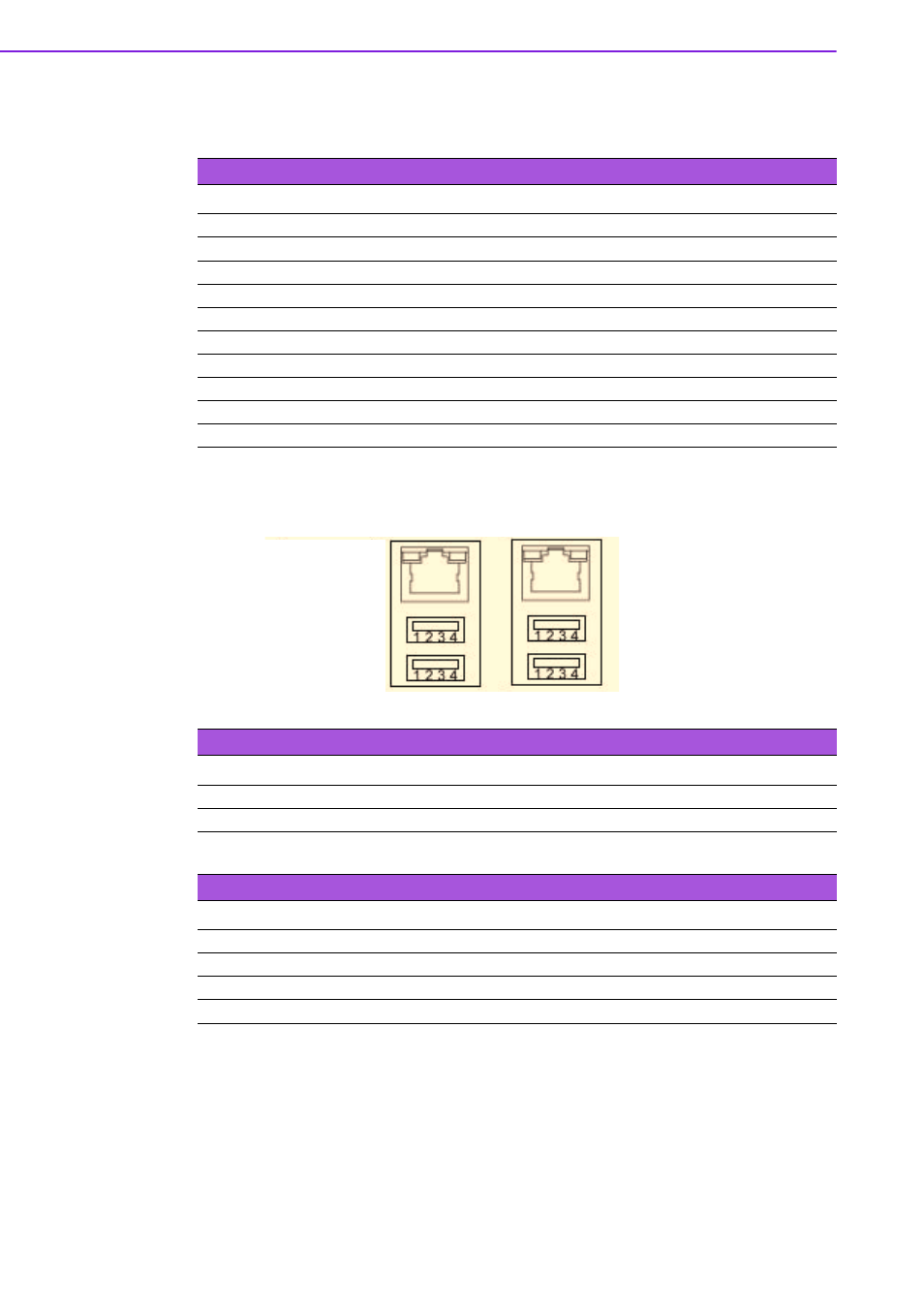

B.14
USB/LAN ports (LAN1_USB12/LAN2_USB34)
Table B.13: ATX Power Connector (ATX2)
Pin
Signal
Pin
Signal
1
+3.3 V
2
+3.3 V
3
GND
4
+5 V
5
GND
6
+5 V
7
GND
8
POK
9
5 VSB
10
12 V
11
+3.3 V
12
-12 V
13
GND 14
PSON
15
GND
16
GND
17
GND
18
-5 V
19
+5 V
20
+5 V
Table B.14: USB Port
Pin
Signal
Pin
Signal
1
VCC
3
Data0+
2
Data0-
4
GND
Table B.15: Ethernet 10/100 Mbps RJ-45 Port
Pin
Signal
Pin
Signal
1
XMT+
5
N/C
2
XMT-
6
RCV-
3
RCV+
7
N/C
4
N/C
8
N/C
