AIMB-210 User Manual

22

2.10

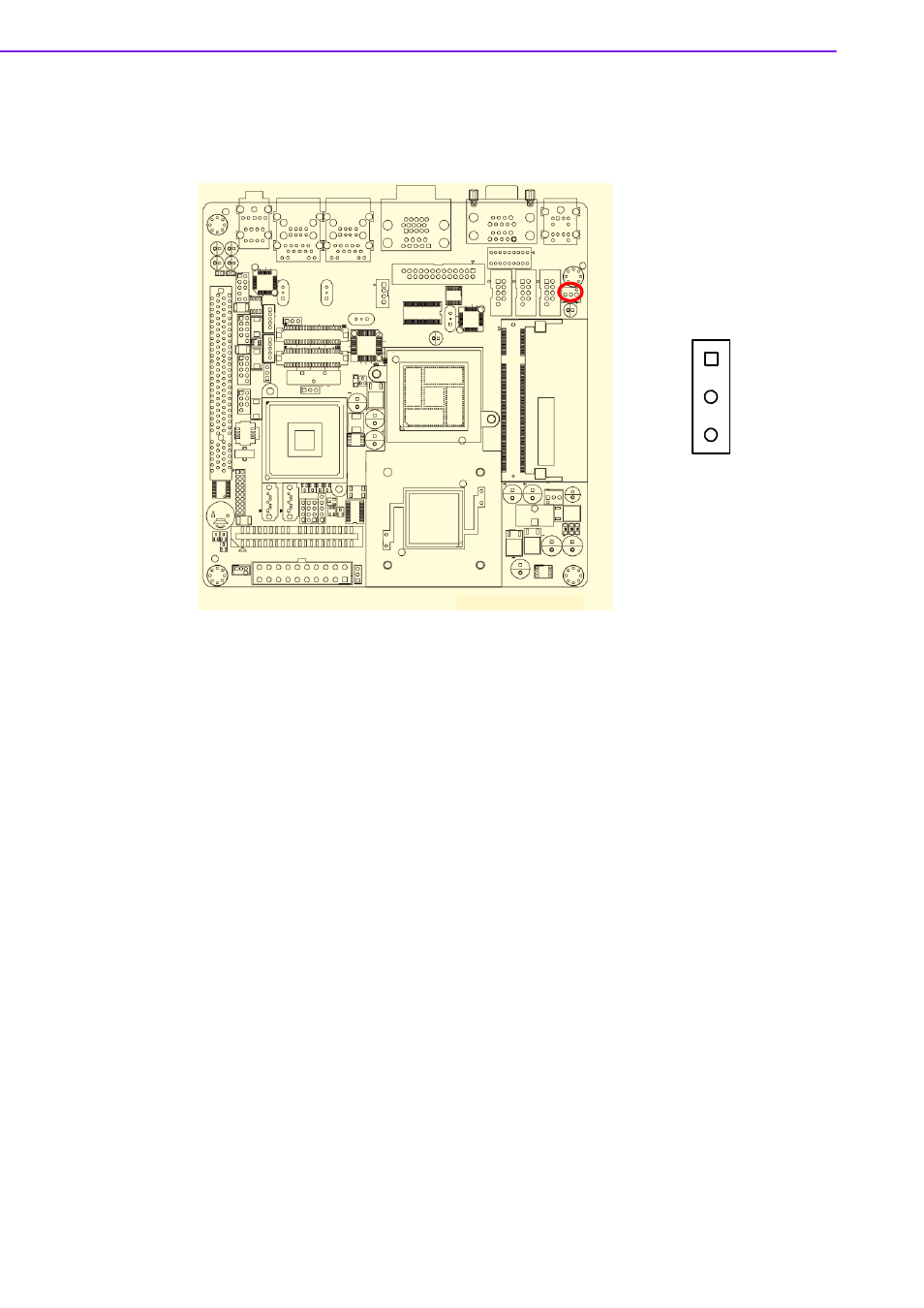

System FAN Connector (CHA_FAN1)

If fan is used, this connector supports cooling fans of 500 mA (6 W) or less.

1

2

3
