17

AIMB-210 User Manual

Chapter 2

C

onnecting

Peripherals

2.5

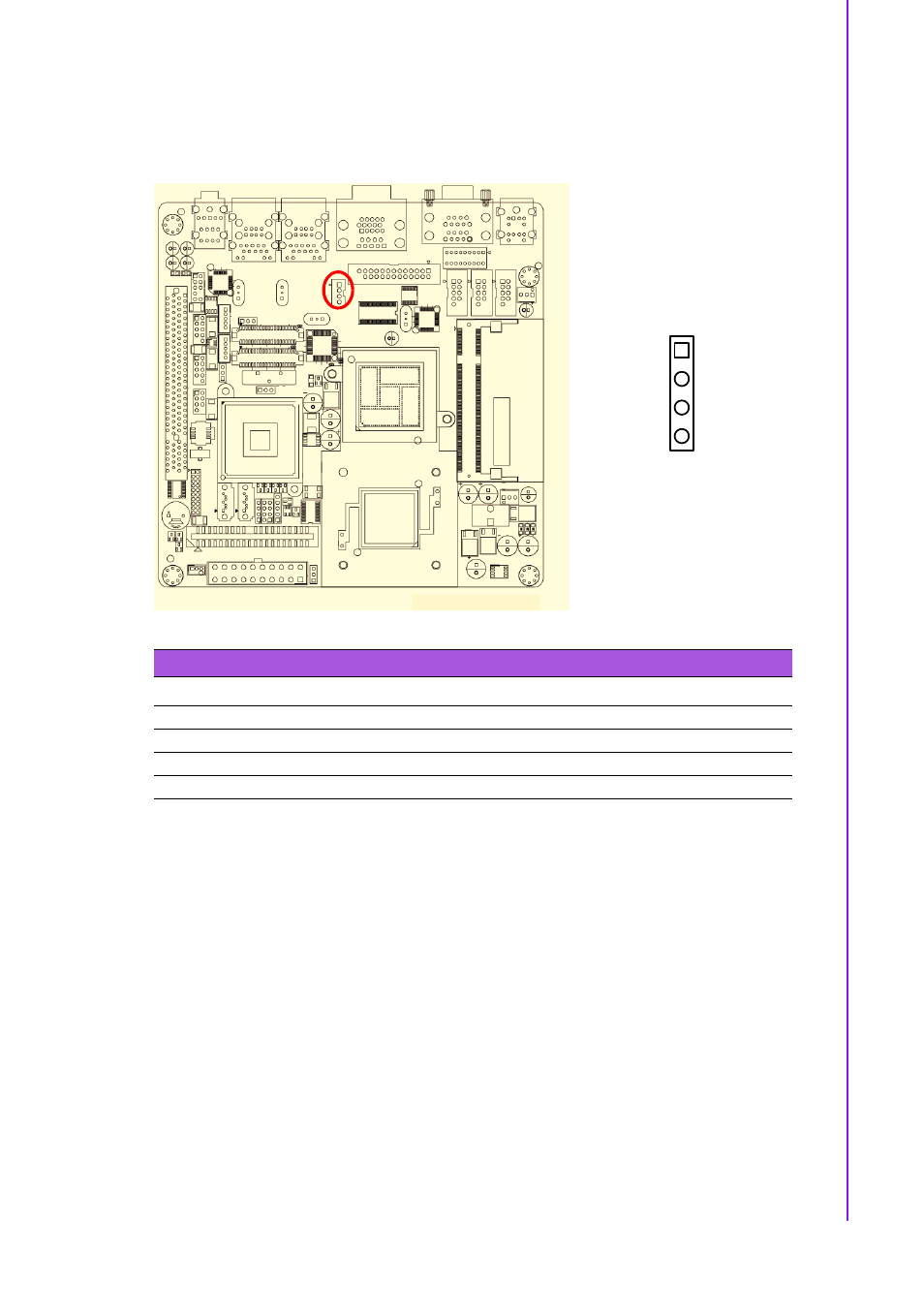

TV-Out Connector (TVOUT1)

Table 2.2: TV-Out Connector (TVOUT1)

Pin

Signal

1

TV_Pb

2

TV_Y

3

TV_Pr

4

GND

1

2

4

3
