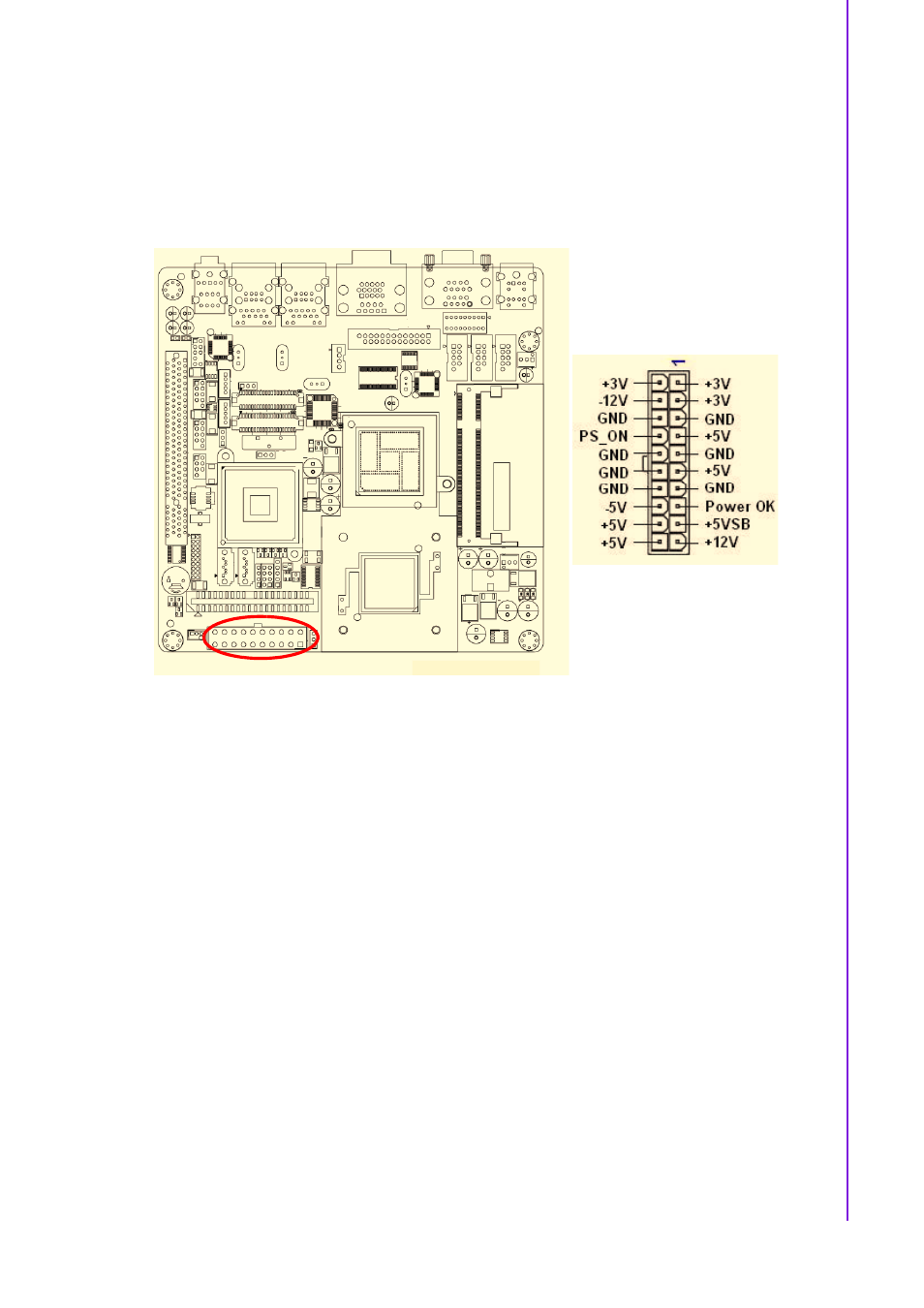

ATX Power Connector (EATXPWR1)
This connector is for an ATX Micro-Fit power supply. The plugs from the power sup-
ply are designed to fit these connectors in only one orientation. Find the proper orien-
tation and push down firmly until the connectors completely fit.
