21

AIMB-210 User Manual

Chapter 2

C

onnecting

Peripherals

2.9

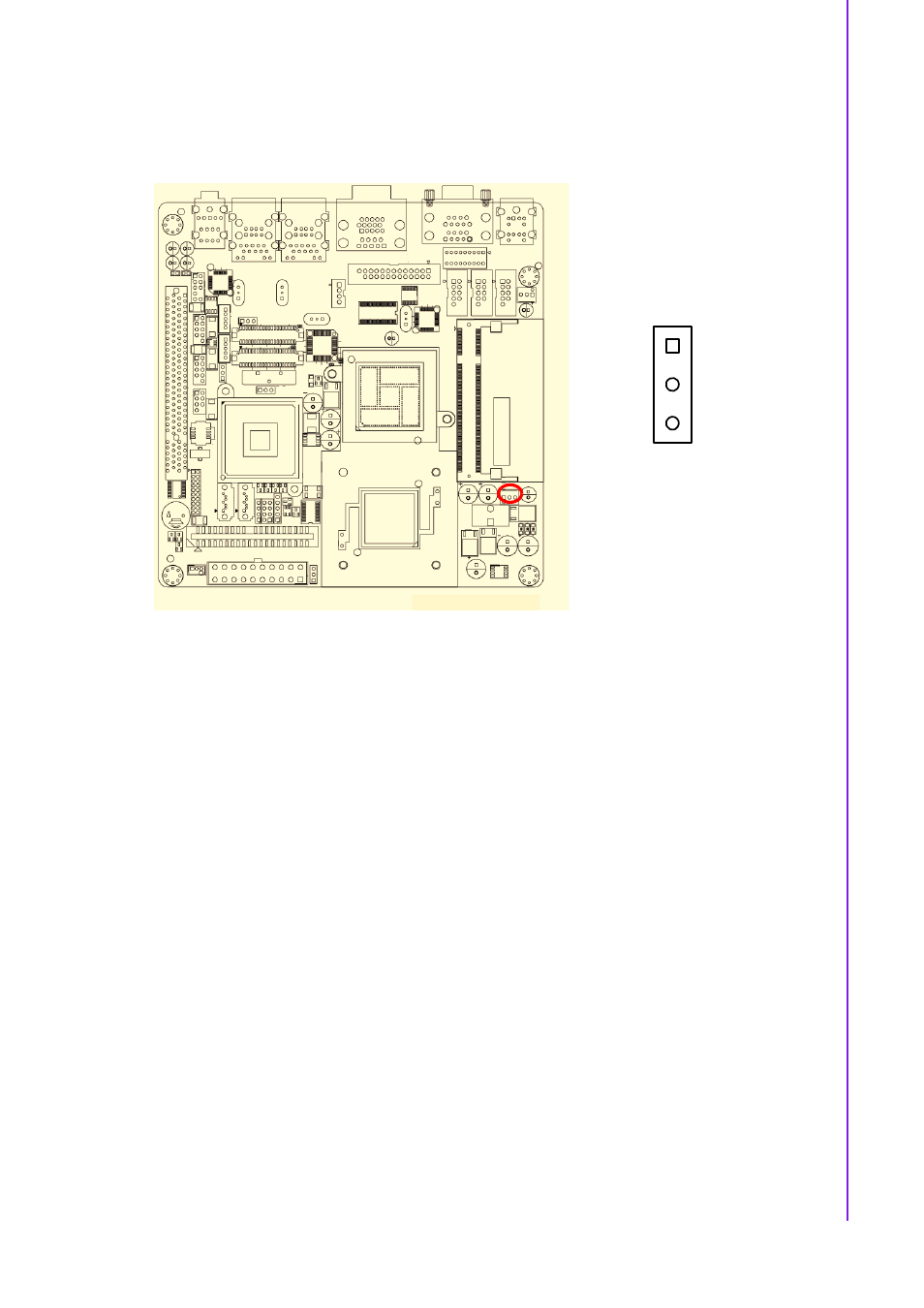

CPU Fan Connector (CPU_FAN1)

If fan is used, this connector supports cooling fans of 500 mA (6 W) or less.

1

2

3
