AIMB-210 User Manual
Chapter 2
C
onnecting
Peripherals
2.18

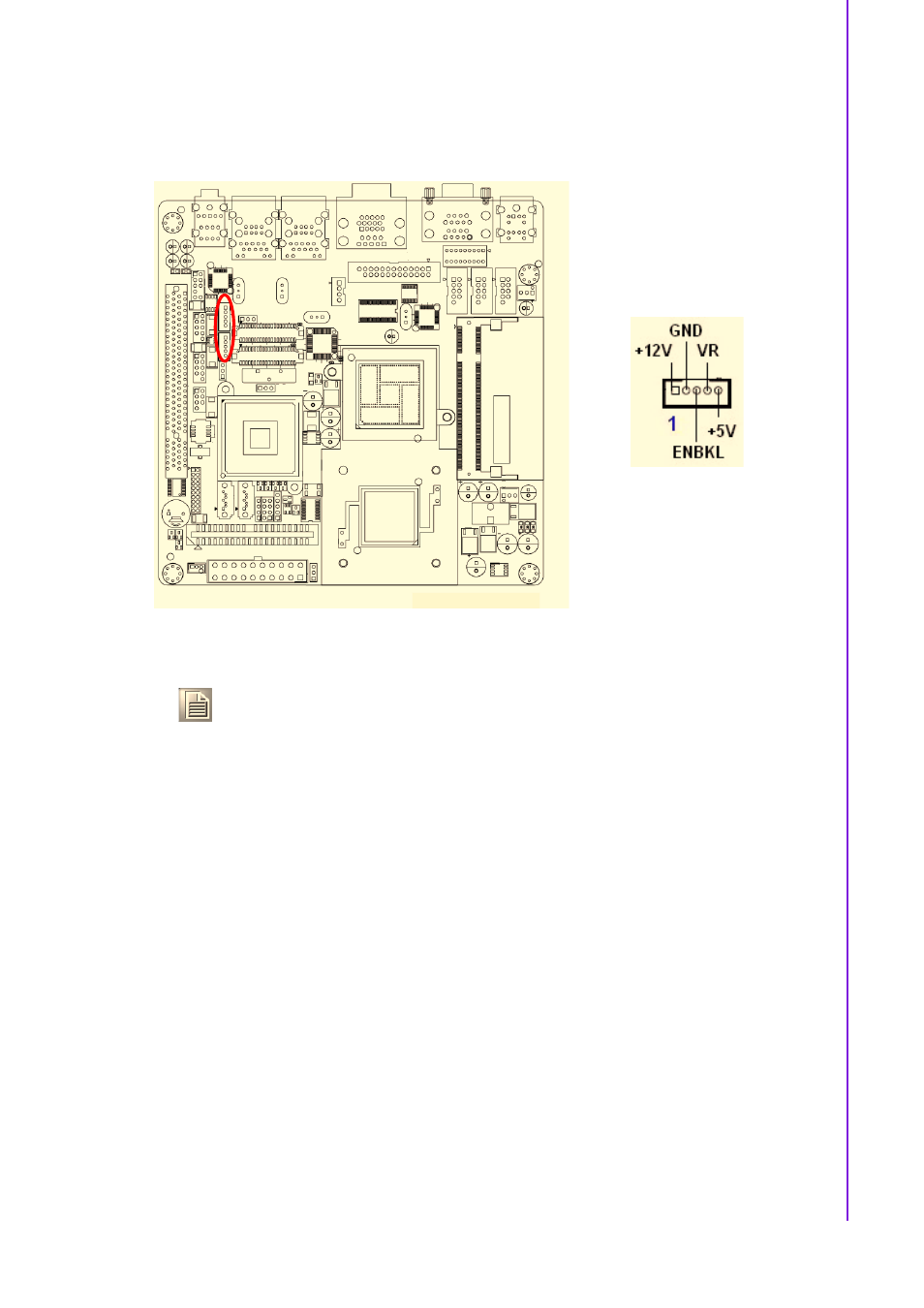

LCD Inverter Connector INV1 & INV2 (Optional)
Note!
!
Signal Description
Signal Signal Description
VR Vadj=0.75 V
(Recommended: 4.7 K
Ω
,
>
1/16 W)
ENBKL LCD backlight ON/OFF control signal
