Attaching the Anemometer

Page 11

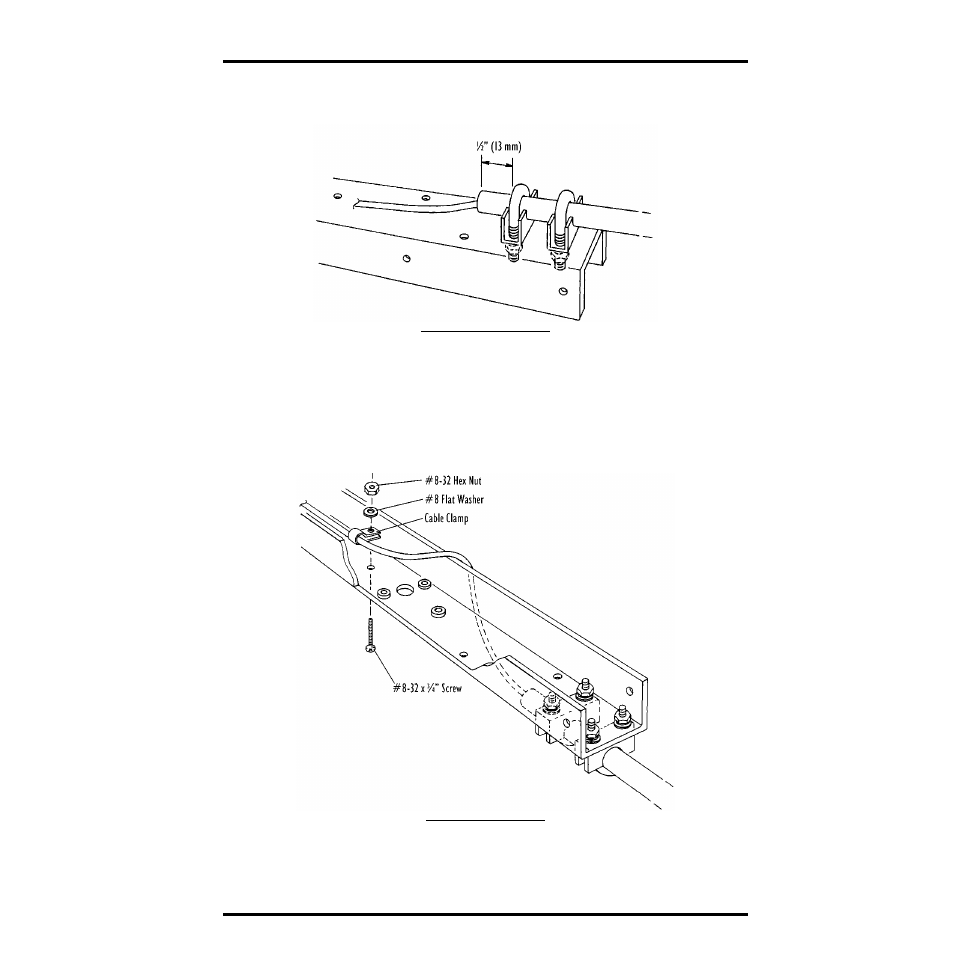

10. Slide the anemometer arm backwards/forwards until the end of the anemometer arm

extends just 1/2” past the second U-bolt/saddle.

P

OSITION

A

NEMOMETER

A

RM

11. Once the anemometer arm is correctly positioned, tighten the hex nuts.

In order to keep the anemometer arm steady in high winds, tighten the hex
nuts until you notice the anemometer arm just begin to buckle underneath
the U-Bolt.

12. Place a cable clamp around the anemometer cable.

13. Slide a #8-32 x 3/4”screw down through the indicated hole on the sensor arm.

A

TTACH

THE

C

ABLE

C

LAMP

14. Run the anemometer cable underneath the sensor arm and slide the hole in the cable

clamp over the end of the #8-32 x 3/4” screw.
