13

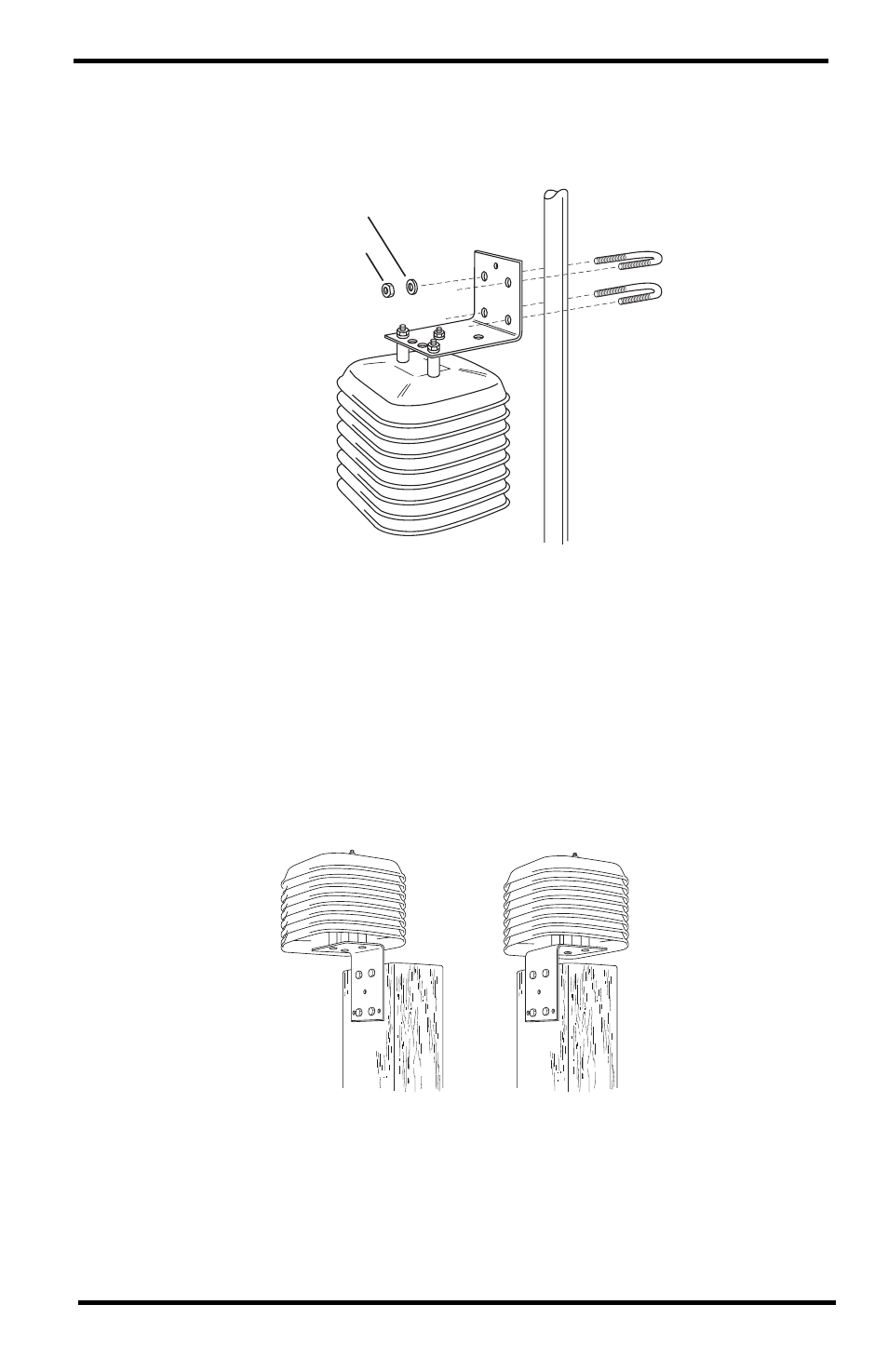

4. Secure the mounting bracket to the pipe using a 1/4” flat washer and a 1/4” hex
nut on each end of the 1/2” U-bolts.
Tighten until the mounting bracket is firmly attached to the pipe.
Mounting on Top of a Post:
In order to mount the radiation shield onto the top of a post, you will need the
radiation shield assembly (with mounting bracket already attached). You will need
to supply four 1/4” x 1 1/2” (6.4 mm x 38.1 mm) lag screws.
Mount the radiation shield by using the lag screws (not included) to attach the
mounting bracket to the mounting surface in the desired location.
1-1/2" U-Bolts
1/4" Flat Washer
1/4" Hex Nut
Complete
Plate
Assembly
