Maintenance – JKS OGS170 User Manual
Page 4
JKSOGS170
JKS Rear Tackbar Relocation Bracket Installation
4 Page

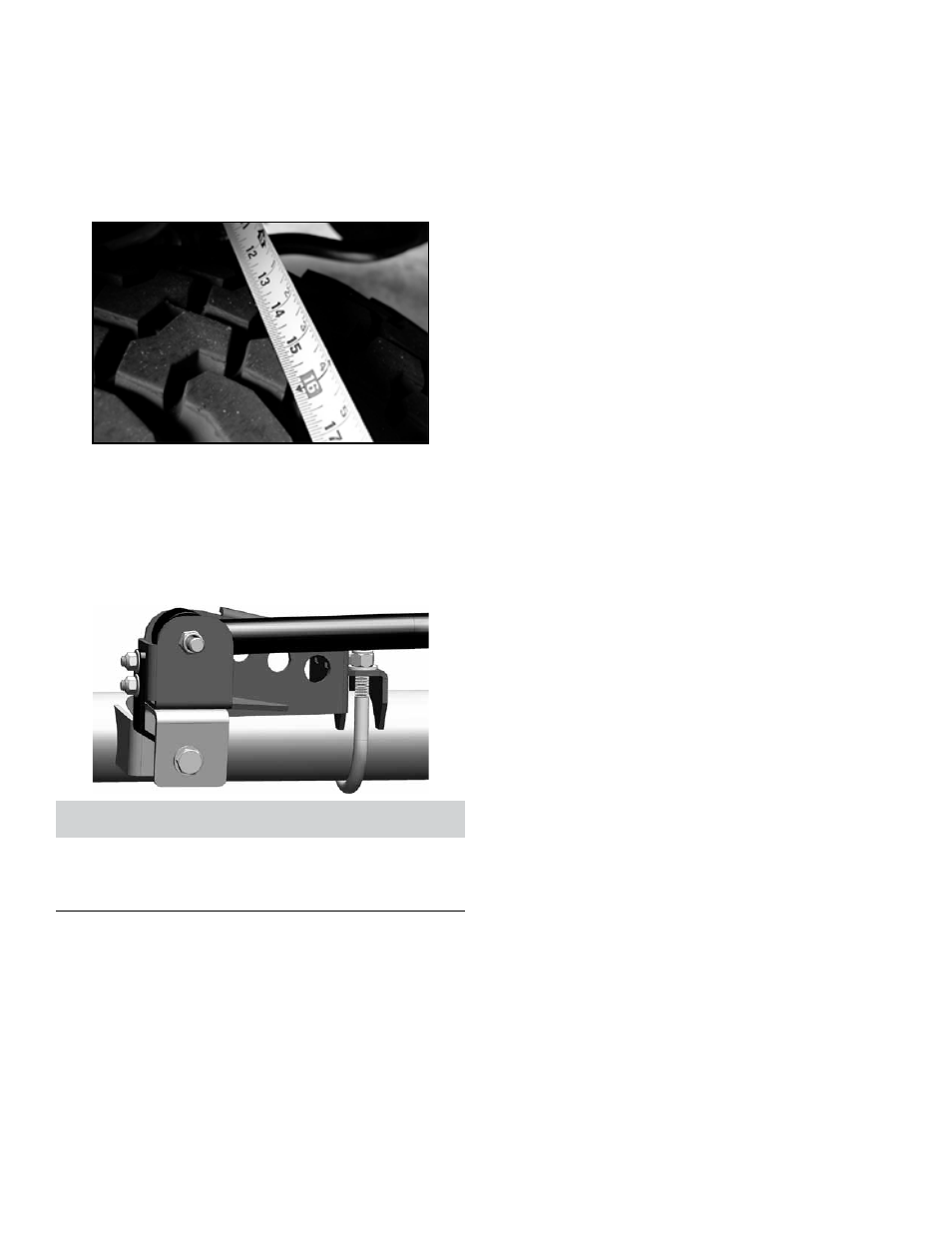

Determine if the axle housing is centered by mea-
suring the distance between the tire and chassis,
using the exact same points on each side of the
vehicle to ensure accuracy.
HINT: For example,
measure from the edge of a tire tread lug to the
outboard side of the chassis, then repeat the mea-
surement on the other side of vehicle using exact
same points.
The rear axle housing must be in perfect lateral
alignment with vehicle chassis before you proceed
with installation.
Using a torque wrench, tighten track bar bolt at the
frame bracket to 125 ft-lbs.
Tighten M14 Nylock Nut (J) at axle end of track bar
to 125 ft-lbs.
Maintenance
Check all torque specifications regularly.
©2013 JKS Manufacturing, Inc & Aftermarketing, LLC
Revision Date 11/1/2013
