,QVWDOODWLRQ,QVWUXFWLRQV
,167$//7+(&22.723
E/(&75,&$/&211(&7,21
(OHFWULFDOUHTXLUHPHQWV
120-volt, 60-Hertz, individual, properly grounded
branch circuit protected by a 15-amp circuit
breaker or time-delay fuse.
G5281',1*
,03257$17 (Please read carefully.)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
The power cord of this appliance is equipped with
a three-prong (grounding) plug which mates with
a standard three-prong grounding wall receptacle
to minimize the possibility of electric shock hazard
from this appliance. The customer should have
the wall receptacle and circuit checked by a
qualified electrician to make sure the receptacle is
properly grounded and has correct polarity.
Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the customer to have it replaced
with a properly grounded three-prong wall
receptacle in accordance with the National
Electrical Code.
'R1RW8QGHU$Q\&LUFXPVWDQFHV&XW2U
5HPRYH7KH7KLUG*URXQG3URQJ)URP7KH
3RZHU&RUG
Do not use an extension cord with this appliance.
Plug the power cord into an approved wall outlet.
16
,167$//7+(&22.723

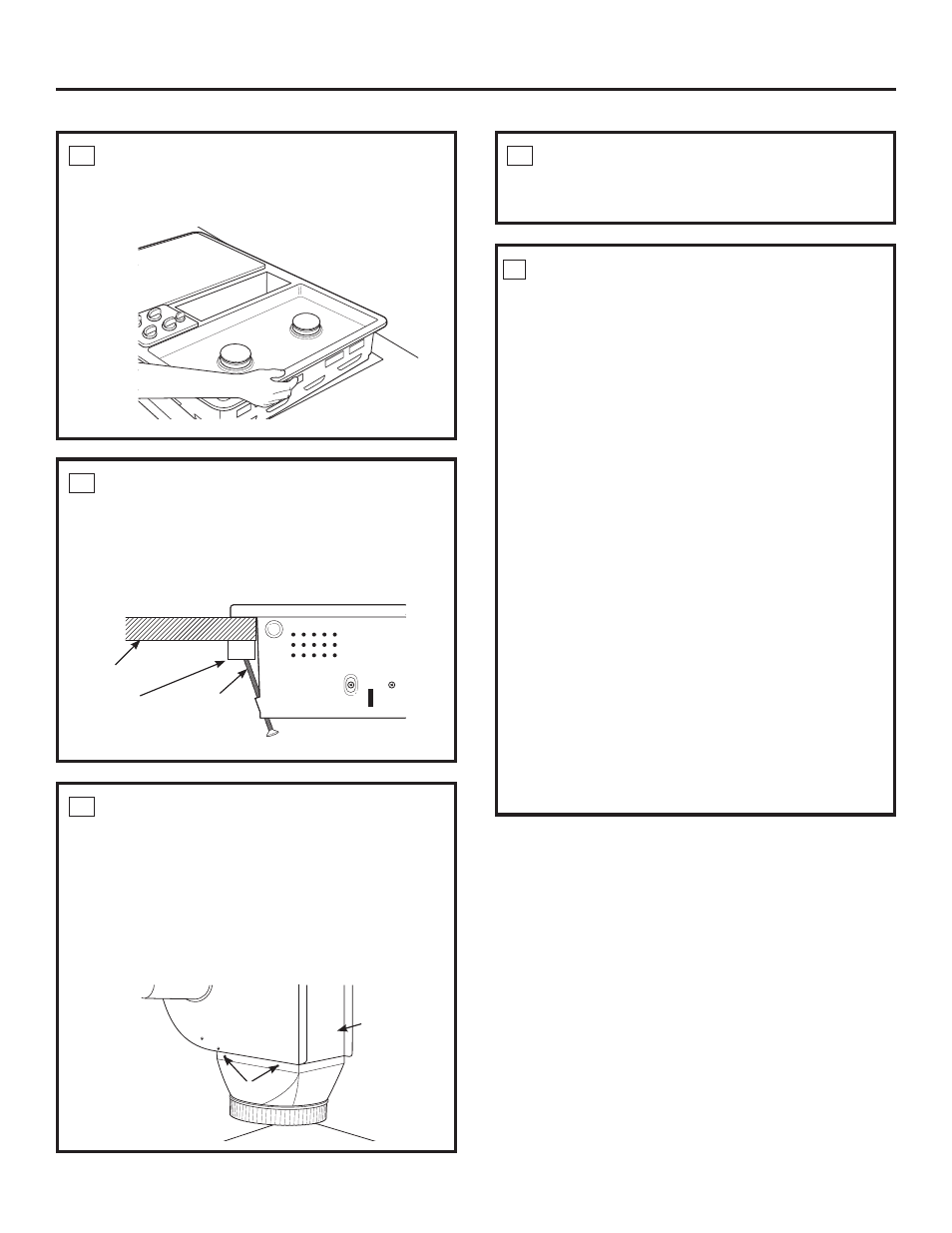

Lower the cooktop into the countertop opening,
guiding it into position.
12
6(&85(7+(&22.723
Tighten the tie-down bolts to secure the cooktop
to the counter. For countertops less than 1” thick,
securely attach filler blocks of wood to the bottom
of the countertop where the tie-down bolts will be
tightened.
13
Countertop
Filler wood block
for countertops
OHVVWKDQ”WKLFN
Tie-down
bolt through
cooktop tab
237,21$/$77$&+$%/2:(5
75$16,7,21'8&7
If using 6” round standard ductwork, attach a
blower transition duct. This 3 1 ø 4
” x 10” rectangle to
6” round transition duct is available at your local
building supply store.
Install the transition duct to the blower outlet.
Secure all joints with duct tape to assure an
airtight seal.
Screw (on
other side)
Screws
14
28
&211(&77+('8&7:25.
Connect the ductwork prepared earlier to the
blower transition duct.
15
