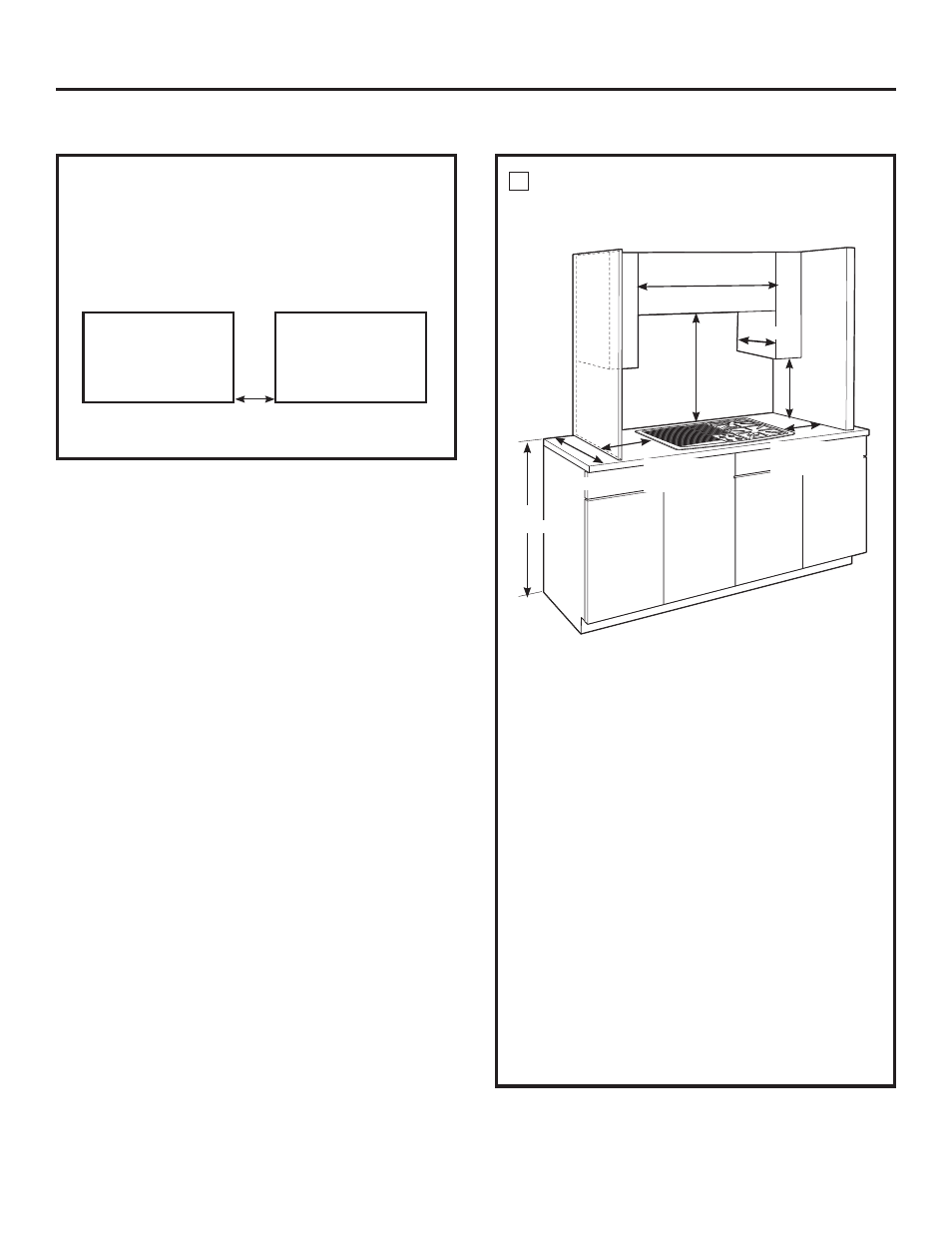

I167$//,1*&$%,1(7629(5<285

&22.723

Avoid placing cabinets above the cooktop unit, if

possible, in order to reduce the hazards caused by

reaching over heated surface units.

If the cabinets are installed above the cooktop,

allow a minimum 30” (76.2 cm) clearance between

the cooking surface and the bottom of the cabinet.

A non-combustible material must be installed on

the under side of the cabinet. Use a flame retardant

millboard at least 1/4” (6.3 mm) thick, or gypsum

board at least 3/16” (4.7 mm) thick, covered with 28

gauge sheet steel or 0.020” (.5 mm) thick copper.

The maximum depth of cabinets above the cooktop

is 13” (33 cm).

(;&(37,21 Installation of a listed microwave

oven or cooking appliance over the cooktop shall

conform to the installation instructions packed with

that appliance.

Working areas adjacent to the cooktop should have

an 18” (45.7 cm) minimum clearance between the

countertop and the bottom of the cabinet. If the

clearance is less than 18” (45.7 cm), the adjacent

cabinets should be at least 8” (20.3 cm) from the side

of the cooktop.

21

,QVWDOODWLRQ,QVWUXFWLRQV

0,1,08063$&,1*5(48,5(0(17

When installing a double bay downdraft cooktop

in combination with another downdraft cooktop,

maintain the minimum spacing between units as

shown below. Installing them too close will affect

cooking performance.

25”

(63.5 cm)

30” min

(76.2 cm)

30”

(76.2 cm)

13”

(33 cm)

18”

(45.7 cm)

8” min to wall

(20.3 cm)

8” min to wall

(20.3 cm)

36”

(91.4 cm)

1

35(3$5$7,21

5

3

ø

4

14.6 cm
