HP All-in-One SB600c Storage Blade LEDs

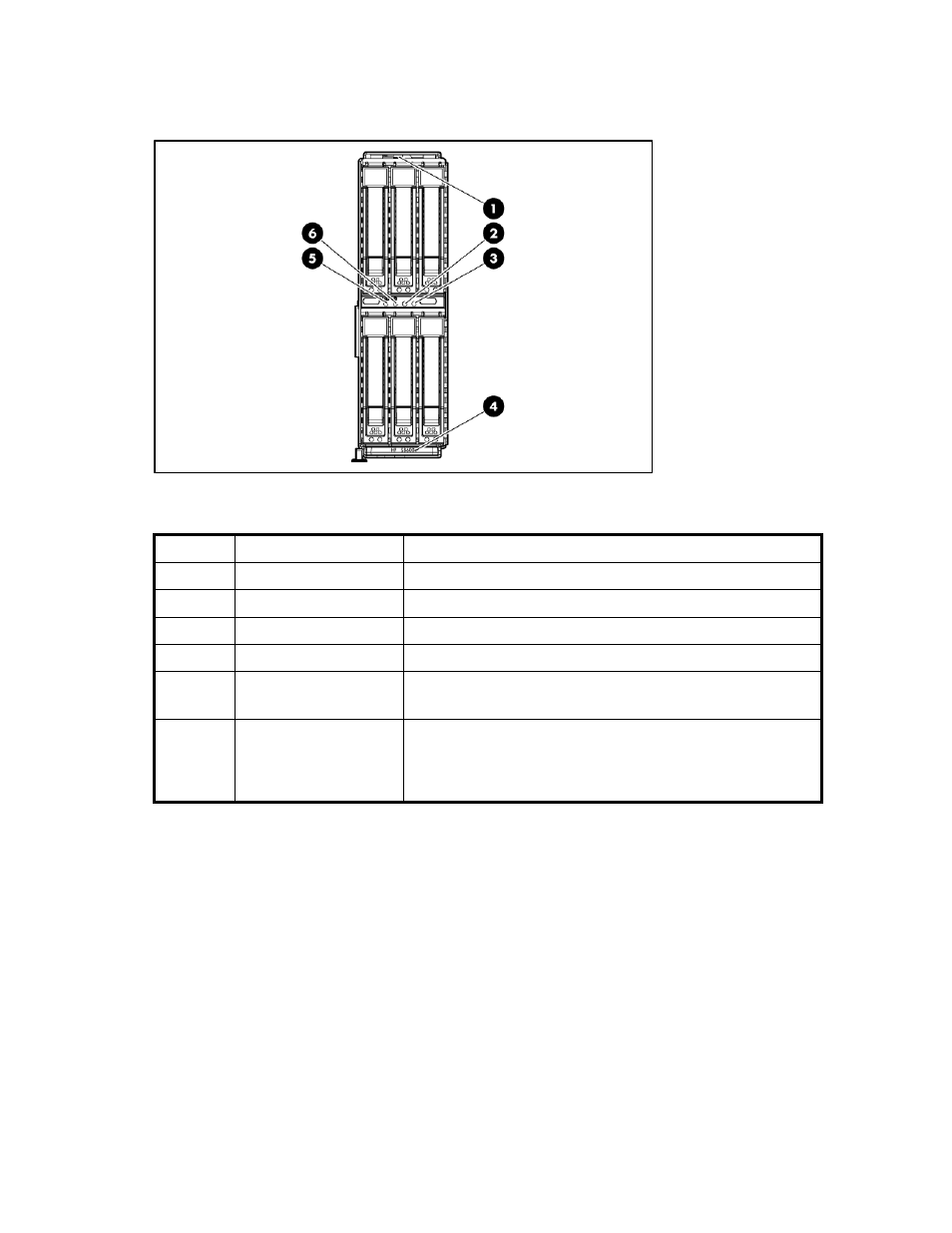

Figure 11 HP All-in-One SB600c Storage Blade LEDs
Table 7 HP All-in-One SB600c Storage Blade LEDs

Item

Description

Status

1

Serial Pull tab

N/A

2

Reserved

N/A

3

Reserved

N/A

4

Storage Blade Handle

N/A

5

UID LED

Blue = Identified
Off = Not identified

6

System Health LED

Green = Normal operation
Flashing amber = Degraded condition
Flashing red = Critical condition

All-in-One SB600c Storage Blade Solution

45
