Table 2 Interconnect bay numbering and device mapping c7000 Blade enclosure
Server blade signal Interconnect bay Interconnect bay labels
NIC 1 (Embedded) 1
NIC 2 (Embedded) 2
Mezzanine 1 3 and 4
Mezzanine 2 5 and 6
7 and 8
Interconnect bay numbering and device mapping for the c3000 Blade enclosure

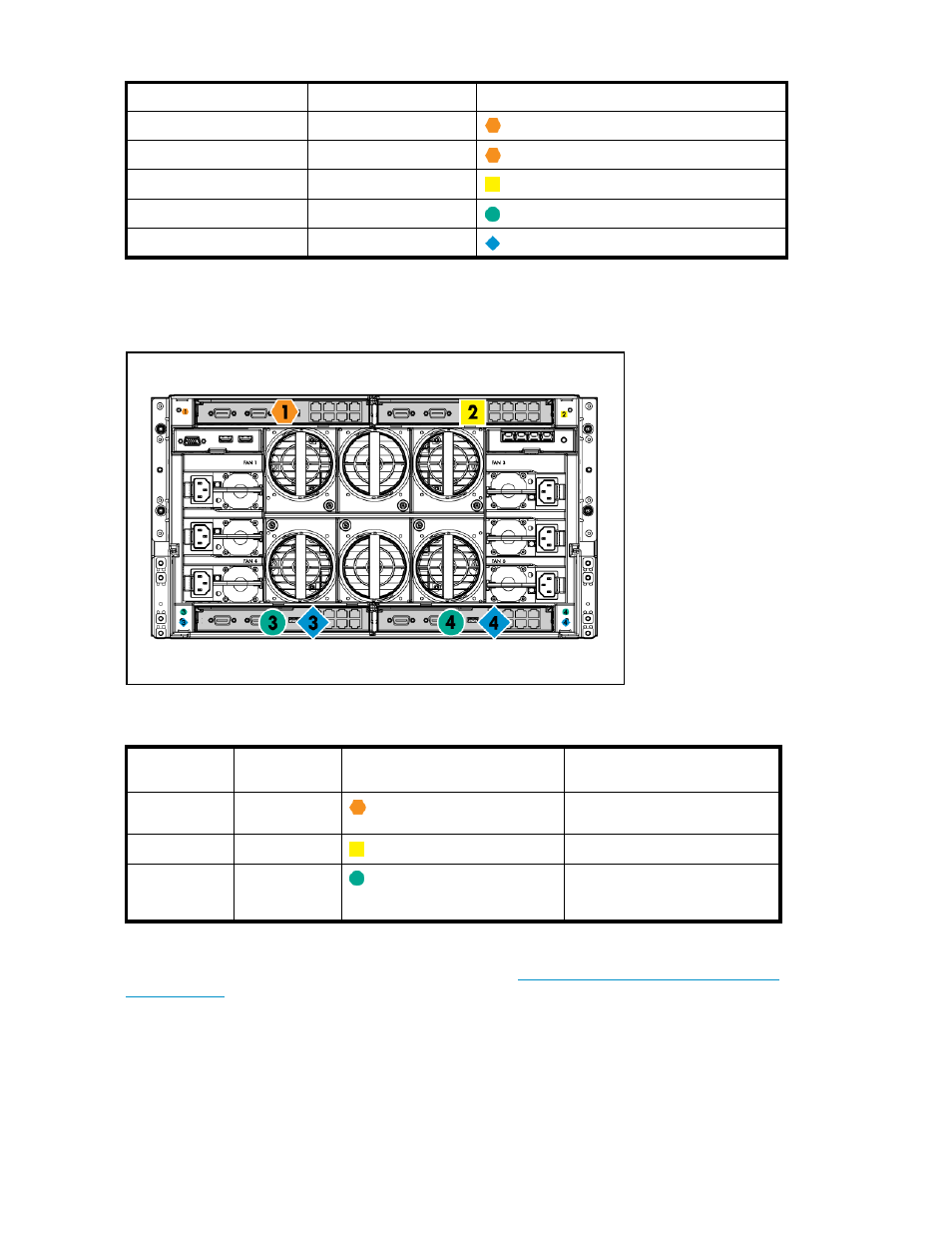

Figure 4 c3000 Blade enclosure interconnect bay numbering
Table 3 Interconnect bay numbering and device mapping ports c3000 Blade enclosure
Server blade
signal
Interconnect
bay number
Interconnect bay label Notes
NICs 1, 2
(embedded)
1 —
Mezzanine 1 2 Four port cards connect to bay 2
Mezzanine 2 3,4 Four port cards; Ports 1 and
3 connect to bay 3. 2 and 4
connect to bay 4.
For detailed port mapping information, see theHP BladeSystem Enclosure installation poster or the
HP BladeSystem Enclosure setup and installation guide at http://www.hp.com/go/bladesystem/
documentation
