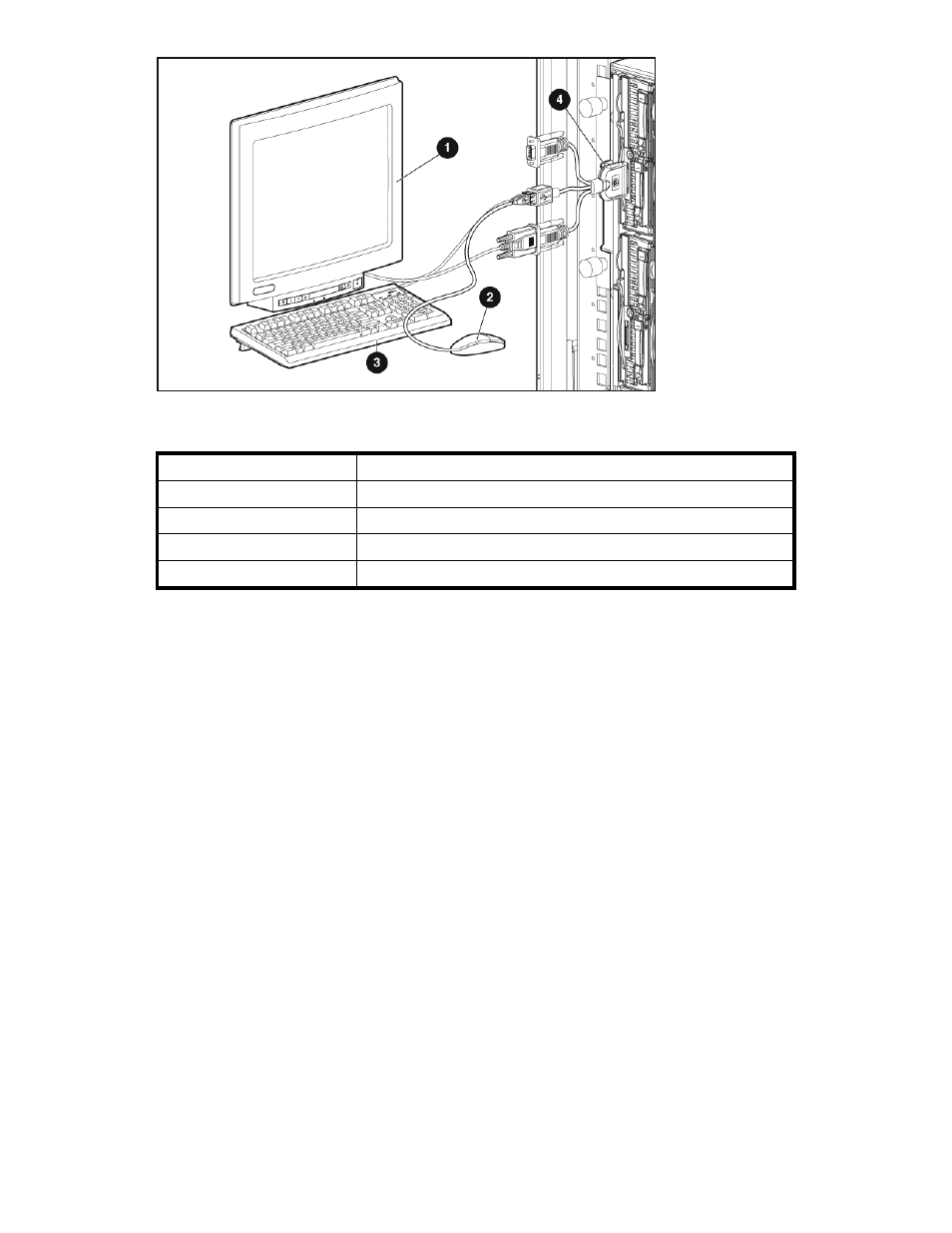

Figure 8 Connecting with a local KVM
Table 4 Local KVM connection components

Item

Description

1

Monitor

2

USB mouse

3

USB keyboard

4

Local I/O cable

Accessing a server blade with local media devices

Use the following configuration when configuring a server blade or loading software updates and

patches from a USB DVD-ROM or a USB diskette.

1.

Connect the local I/O cable to the server blade.

2.

Connect the video connector to a monitor.

3.

Connect a USB hub to one USB connector.

4.

Connect the following to the USB hub:
• USB DVD-ROM drive

• USB keyboard
• USB mouse
• USB diskette

34

Hardware Options installation and cabling
