Installing interconnect modules

For specific steps to install interconnect modules, see the documentation that ships with the interconnect

module.

Interconnect bay numbering and device mapping for the c7000 Blade enclosure

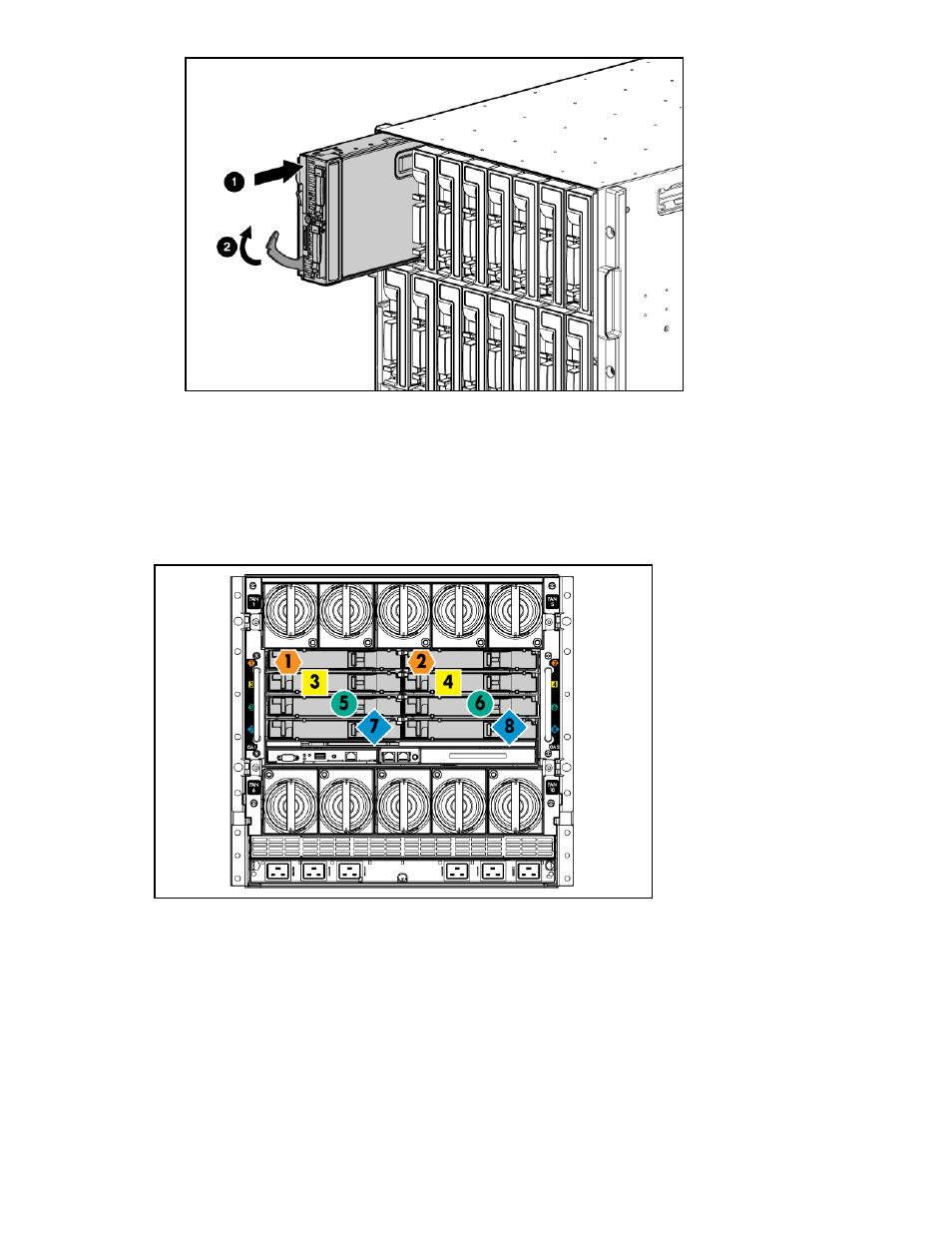

Figure 3 c7000 Blade enclosure interconnect bay numbering

To support network connections for specific signals, install an interconnect module in the bay

corresponding to the embedded NIC or mezzanine signals.

All-in-One SB600c Storage Blade Solution
