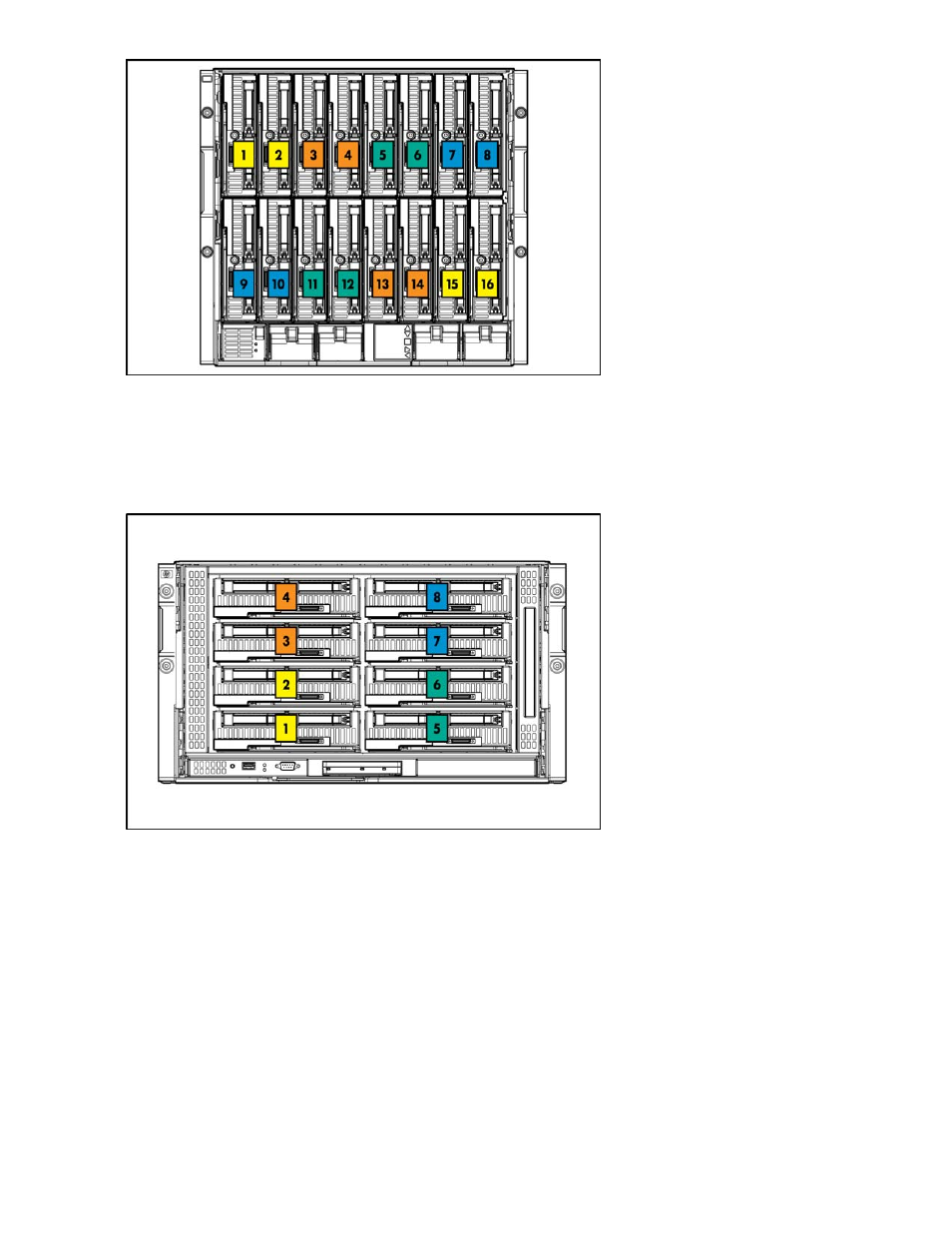

Figure 1 c7000 Enclosure half-height device bay numbering

HP BladeSystem c3000 Enclosure

The colors correspond to a partner bay; for example 1 and 2 are in one partner bay.

Figure 2 c3000 Enclosure half-height device bay numbering

Installation guidelines

Observe the following guidelines when installing the server and storage blades for the HP AiO SB600c:

•

Install the storage blade prior to installing the server blade

•

Before installing and initializing the server blade, install any server blade options, such as an

additional processor or mezzanine card.

Onboard Administrator is used to configure the enclosure and the HP AiO SB600c. To function with the

HP AiO SB600c, Onboard Administrator version 1.30 or later is required.

12
