Chapter 7 Mounting the Server in the Rack
62
5. Repeat steps 1 through 6 to attach the second rail to the left-hand rack
columns.
Step 2: Placing Tinnerman Nuts on the Front Columns
1. Place two Tinnerman nuts on the right front column of the rack. See
Figure 7-4.
•
Place the first nut in the twelfth hole above the bottom of the
mounting rail.
•
Place the second nut in the twenty-sixth hole above the bottom of the
rail.
When the HP NetServer is installed on its rails, these nuts must line up
with the slots in the flanges on the front of the HP NetServer. You will
insert screws through the flanges' holes and into the Tinnerman nuts.
Twelfth Hole
Twenty-Sixth
Hole
Bottom of
mounting rail

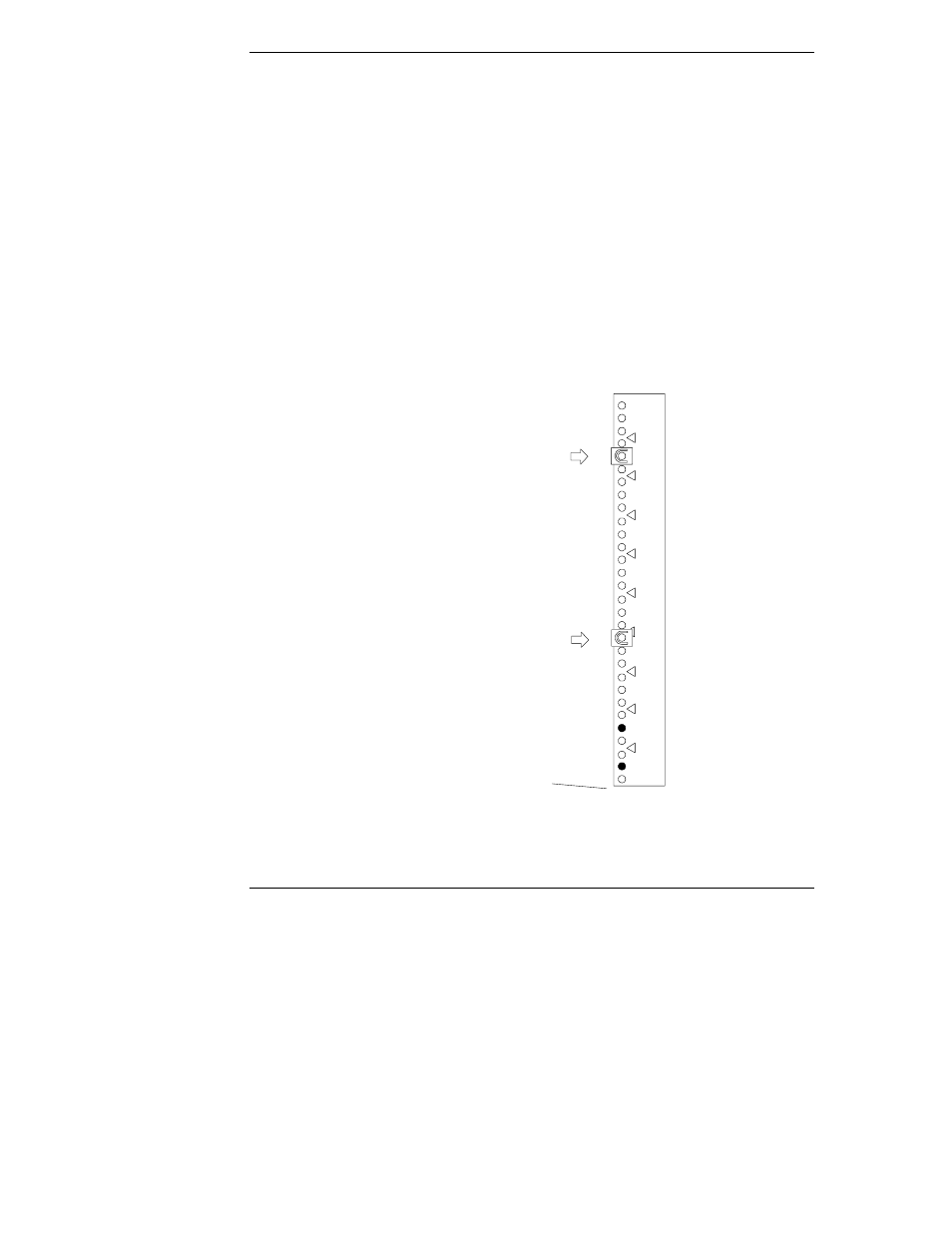

Figure 7-4. Placing Tinnerman Nuts on the Front Column
