Chapter 5 Installing Additional Memory
41
Retaining
Clip
Retaining
Clip

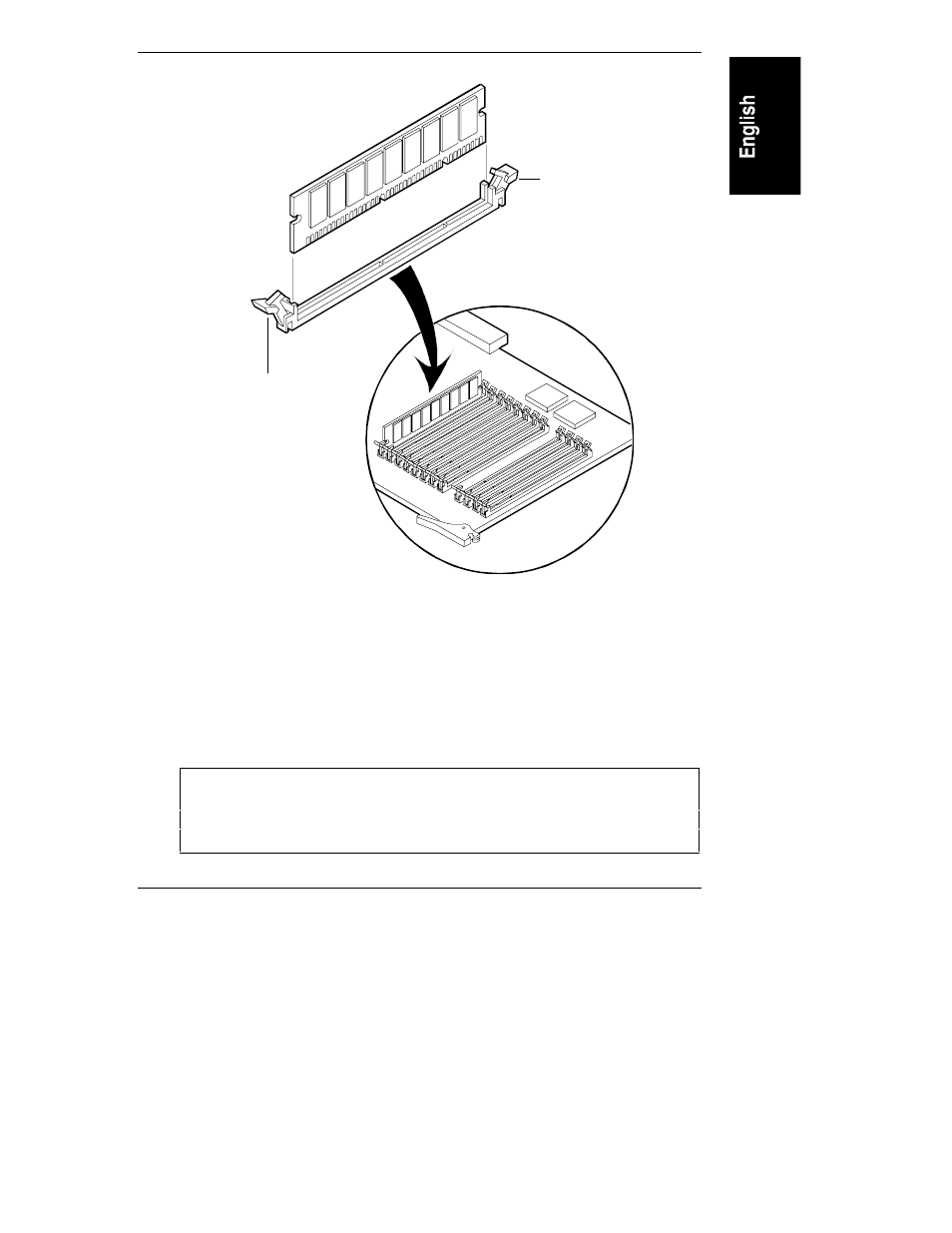

Figure 5-6. Installing a DIMM Module
5. Align the notches on the SDRAM DIMM with the notches on the socket.
6. Hold the SDRAM DIMM so that the front edge faces straight down into
the connector (at a 90
°
angle to the memory board).
7. Insert the SDRAM DIMM carefully into the desired slot. The retaining
clips will grasp the SDRAM DIMM automatically if it is inserted
properly.
CAUTION Do not rock the SDRAM DIMM into place, but apply firm
and even pressure. If a gap exists between the retaining clips
and the SDRAM DIMM module, remove the module and
repeat steps 5-7.
