2.3.3 AC POWER CONNECTIONS
WARNING: UNIT SHOULD HAVE A POWER SWITCH OR CIRCUIT BREAKER IN CLOSE PROXIMITY OF
EQUIPMENT AND WITHIN EASY REACH OF THE OPERATOR. THE SWITCH SHALL BE MARKED AS THE
DISCONNECTING DEVICE FOR THE UNIT.

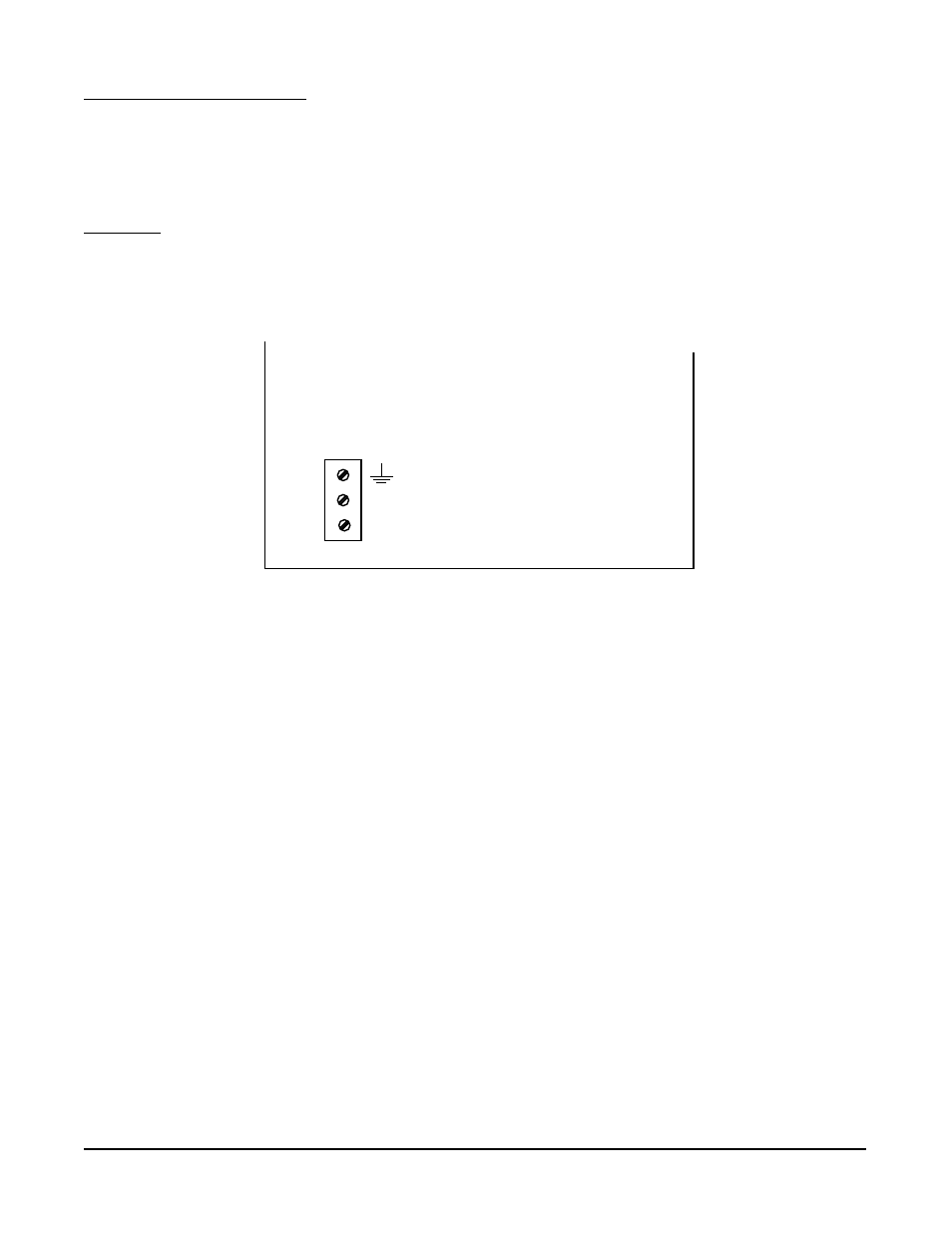

FIGURE 2-6
Connect the line voltage, hot and neutral, to L and N respectively. Connect the ground wire to the terminal
labeled G.
G
L
N
UNIVERSAL POWER SUPPLY
~
~
