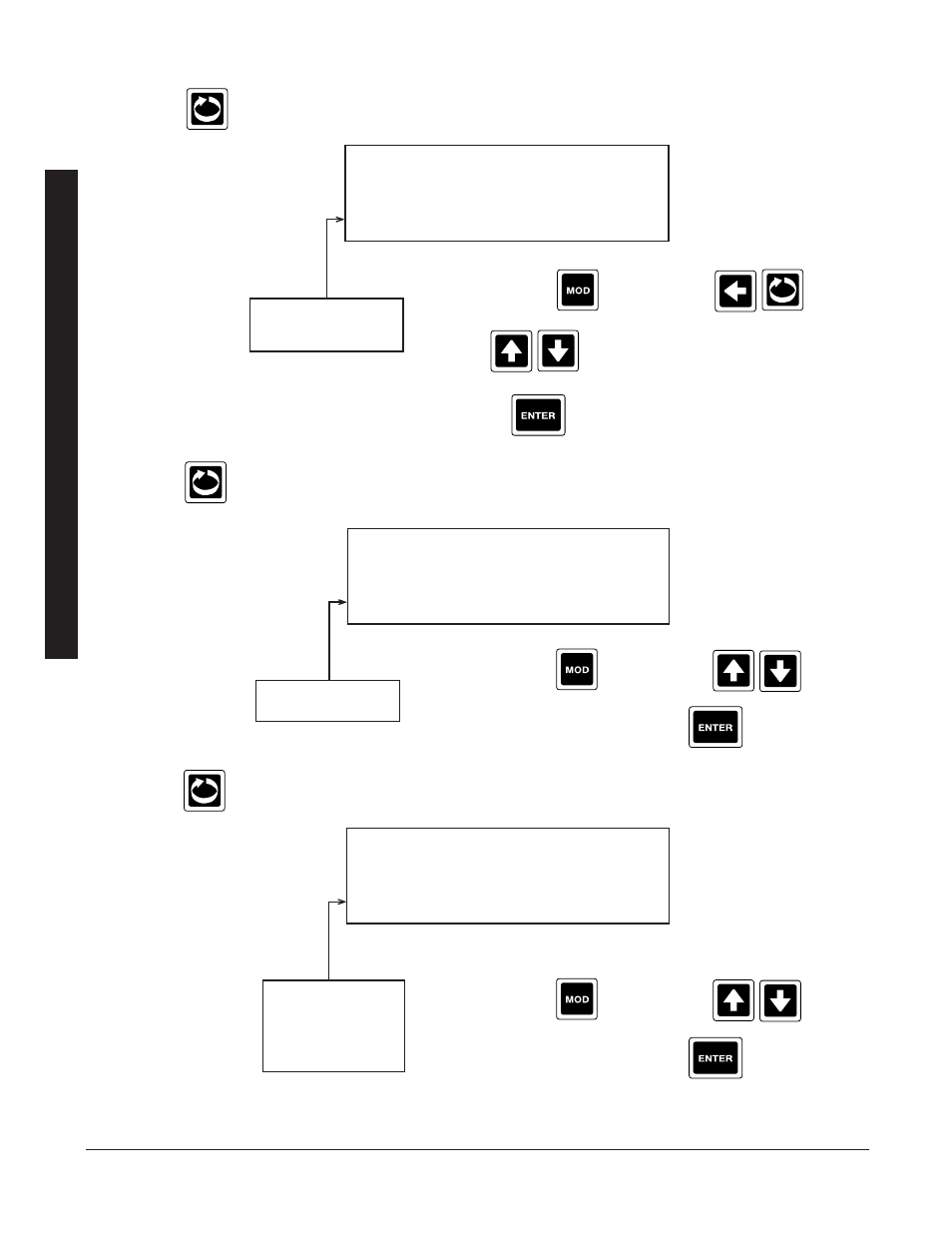

12. Press the
to advance to the next parameter, ALARM 1 TIME BASE (only seen if Ax1 TYPE is RATE).
13. Press the
to advance to the next parameter, ALARM 1 SAMPLE PERIOD (only seen if Ax1 TYPE is
RATE).
14. Press the
to advance to the next parameter, ALARM 1 HYSTERESIS.
NOTE: If RATE Alarm is selected, Hysteresis equals RATE in units/TIME BASE.
Press the
to change, then
to
desired value, then press the
.
Ax1 TIME BASE
PER SEC
Selections
PER SEC PER MIN
PER HOUR PER DAY
Press the
to change, then
,
to desired choice, then press
the
.
Press the
to change, then
to
desired value, then press the
.
Ax1 SAMPLE PERIOD
10 SECONDS
Selections
1 to 9999 seconds
Note: Units correspond
to Units configured in
Process Variables.
Ax1 HYSTERESIS
3 units
Selections
±
999999
(decimal position = 0)
±
9.9999
(decimal position = 4)
