1.2 INSTALLATION OF PEN CARTRIDGE ASSEMBLY
Remove the pen cartridge assembly from its shipping container. With mounting tab on the bottom, slide the pen
cartridge assembly (item 2 on Figure 1-1) into the print actuator (item 1 on Figure 1-1).

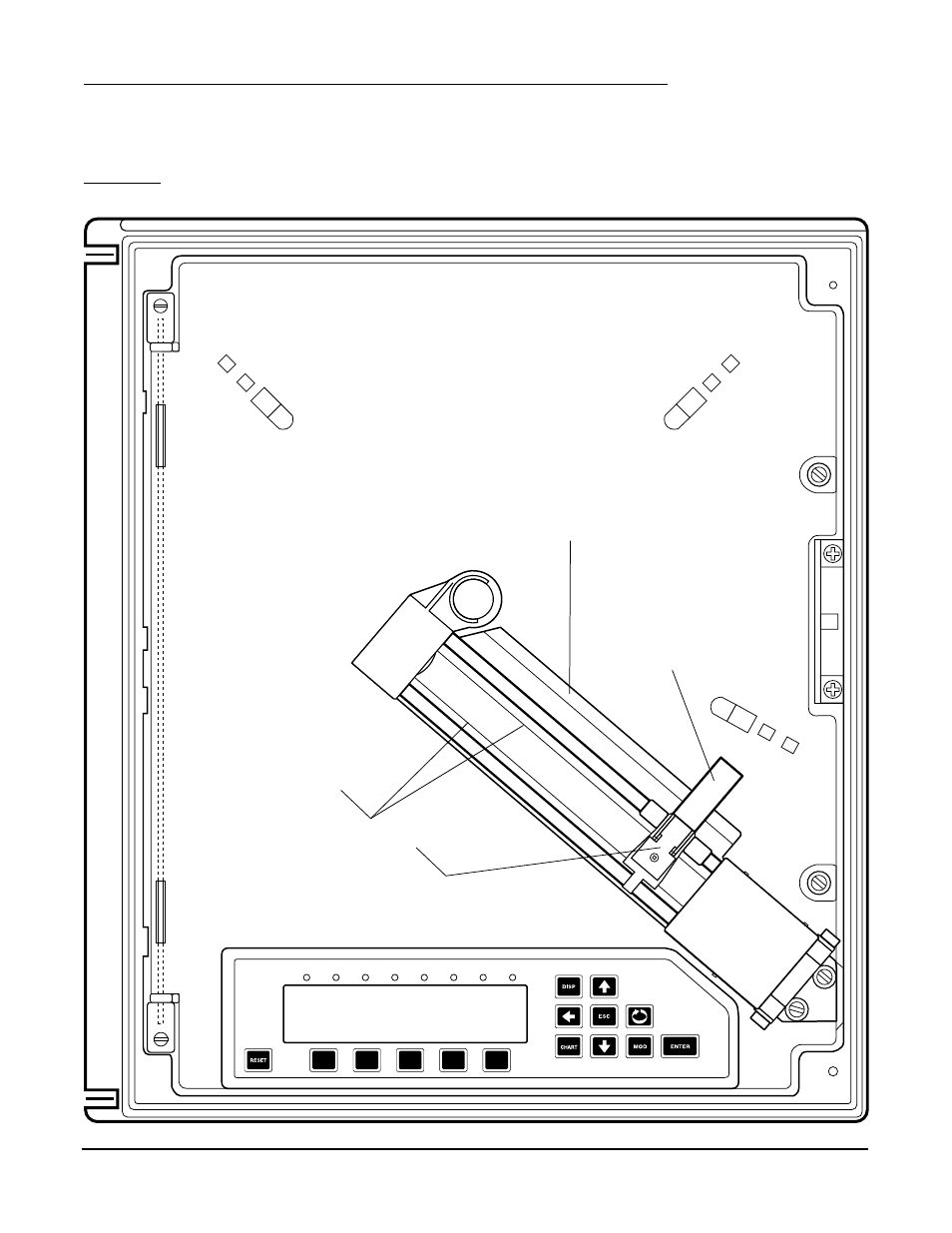

FIGURE 1-1
1
2
3
4
5
6
7
8
INSTALL PEN
CARTRIDGE (2)
PRINT ACTUATOR (1)
PRINT ACTUATOR
TRAVERSE CABLE
PLASTIC CHART SHIELD
(DO NOT REMOVE)
