50 LUN Manager for the XP128/XP1024
2. Click the User Authentication tab. The User Authentication pane appears.

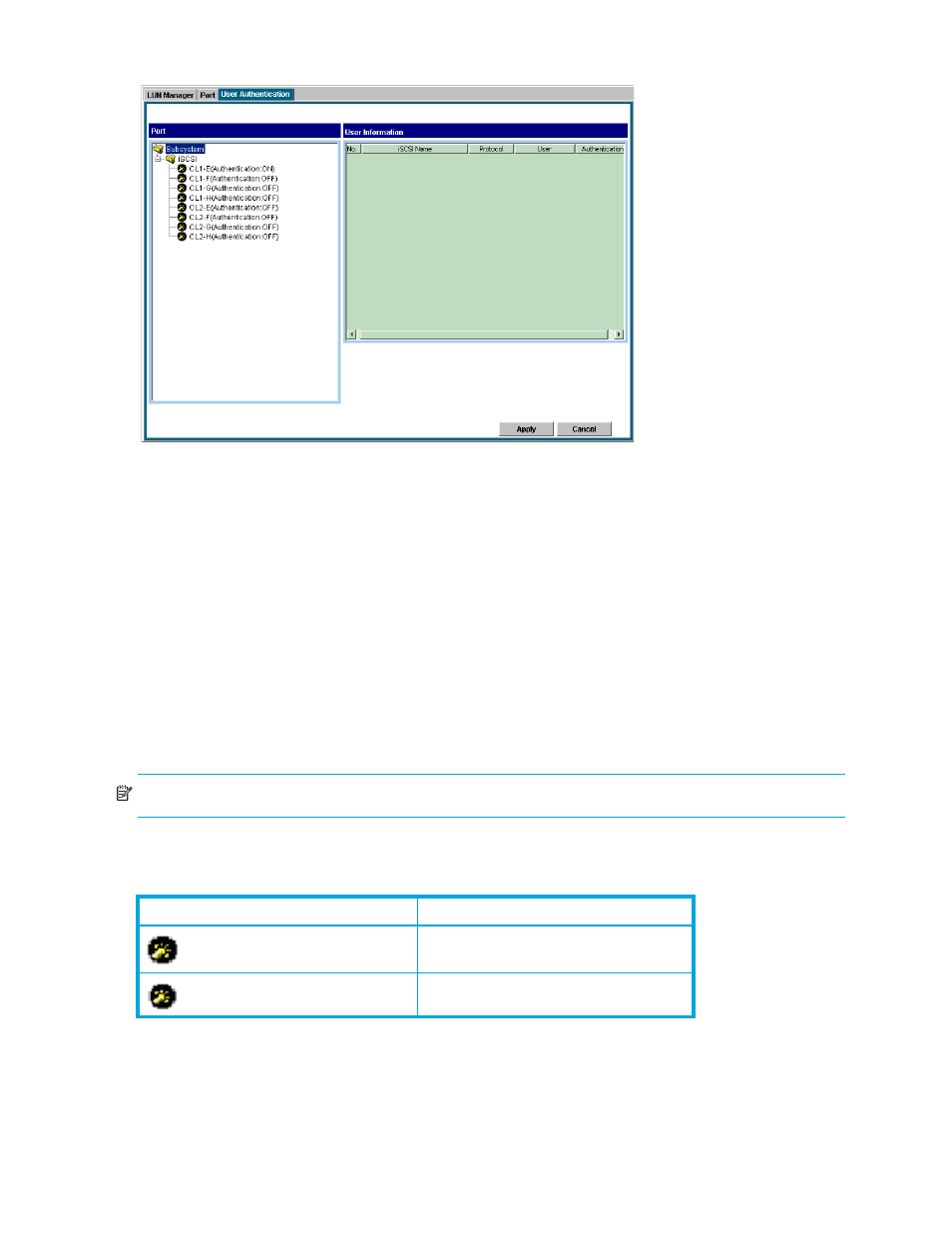

Figure 24 User Authentication tab (LUN Manager pane)
User Authentication tab
The User Authentication tab includes the port tree and User Information (Host) table.
Port tree
This tree displays information about user authentication on each port. When you select a port from this
tree, the User Information (Host) table on the right displays user information of hosts registered on the port.
In addition, the User Information (Port) table below the User Information (Host) table displays user
information of the selected port.
The iSCSI folder appears below the Subsystem folder located at the top of the tree. If you double-click the
iSCSI folder, iSCSI ports in the disk array appear as icons. The port name and user authentication status to
the right of each icon:
• (Authentication:ON): The port performs host authentication.
• (Authentication:OFF): The port does not perform host authentication. This is the default value.
NOTE: The iSCSI folder is displayed only if the disk array contains an iSCSI channel adapter.
The following icons are used to indicate the port’s user authentication status.
User Information (Host) table
The User Information (Host) table, on the top right of the User Authentication tab, displays user information
of hosts that are allowed to connect to the iSCSI port specified in the tree. You can register up to 64 user
information items in this table.
Table 14 iSCSI port icons for User Authentication operations
Icon Status
CLX-Y (Authentication:ON) The port authenticates hosts
CLX-Y (Authentication:OFF) The port does not authenticate hosts
