LUN Configuration and Security Manager XP user guide for the XP128/XP1024 29

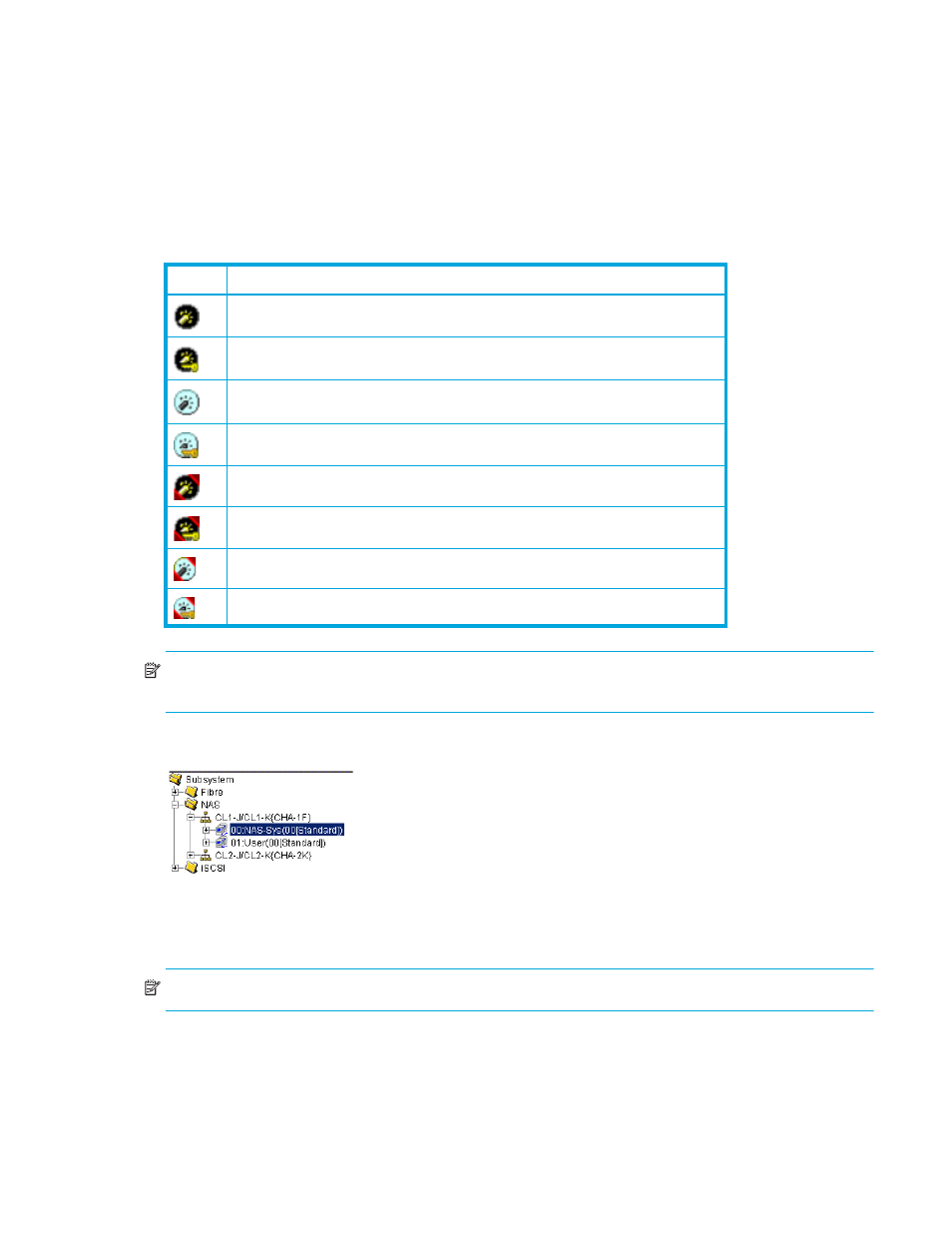

LU Path tree
The LU Path tree on the upper left of the LUN Manager tab lists the Fibre Channel and NAS ports in the
disk array and hosts connected to them. Hosts are identified by nicknames and WWNs and are classified
by host groups.
The LU Path tree may contain different folders: Fibre Channel, NAS, iSCSI, and so on.
Fibre Channel folder
The following Fibre Channel port icons are used in the LU Path tree:
NOTE: High-speed (2 port) mode is available only if the XP disk array has firmware version 21.06.22 or
later installed.
NAS folder
Figure 11 NAS folder in LU path tree
In a NAS environment, if you double-click the NAS folder, NAS ports in the disk array appear as icons.
Two port names appear to the right of each icon, followed by the channel adapter name in parentheses.
NOTE: The NAS folder appears only if the disk array contains one or more NAS channel adapters.
Table 6 Fibre Channel port icons for LUN Manager operations
Icon Status
A short-wave port in standard mode without LUN security
A short-wave port in standard mode with LUN security
A long-wave port in standard mode without LUN security
A long-wave port in standard mode with LUN security
A short-wave port in high-speed mode without LUN security
A short-wave port in high-speed mode with LUN security
A long-wave port in high-speed mode without LUN security
A long-wave port in high-speed mode with LUN security
