32 LUN Manager for the XP128/XP1024
LU Path table
On the right side of the LU Path tree is a table that displays LU Path information about the hosts in the tree.
The table contains the following information:
• LUN: LUNs (address numbers) assigned to LUs, which are LDEVs that can be accessed by hosts. If no
paths are defined, the other table columns are blank.
The following icons indicate status.
• CU:LDEV: The CU image and LDEV numbers. If an LDEV number ends with the sharp symbol (#), the
logical volume is an external LU.
• Emulation: Emulation type for each LDEV
• Capacity: Size of each LDEV
• RAID: RAID level for each LDEV. If the logical volume is an external LU, the RAID column displays a
hyphen (-) instead of a RAID level.
• Array Group: Names of the array groups. If an array group name begins with the letter E, the group
includes one or more Flex Copy XP LDEVs.
• Paths: Number of alternate paths, if any
• Access Attribute: Access attribute of each LDEV
• Ex-Dev. Info: The array where the LDEVs exist.
WWN or iSCSI name table

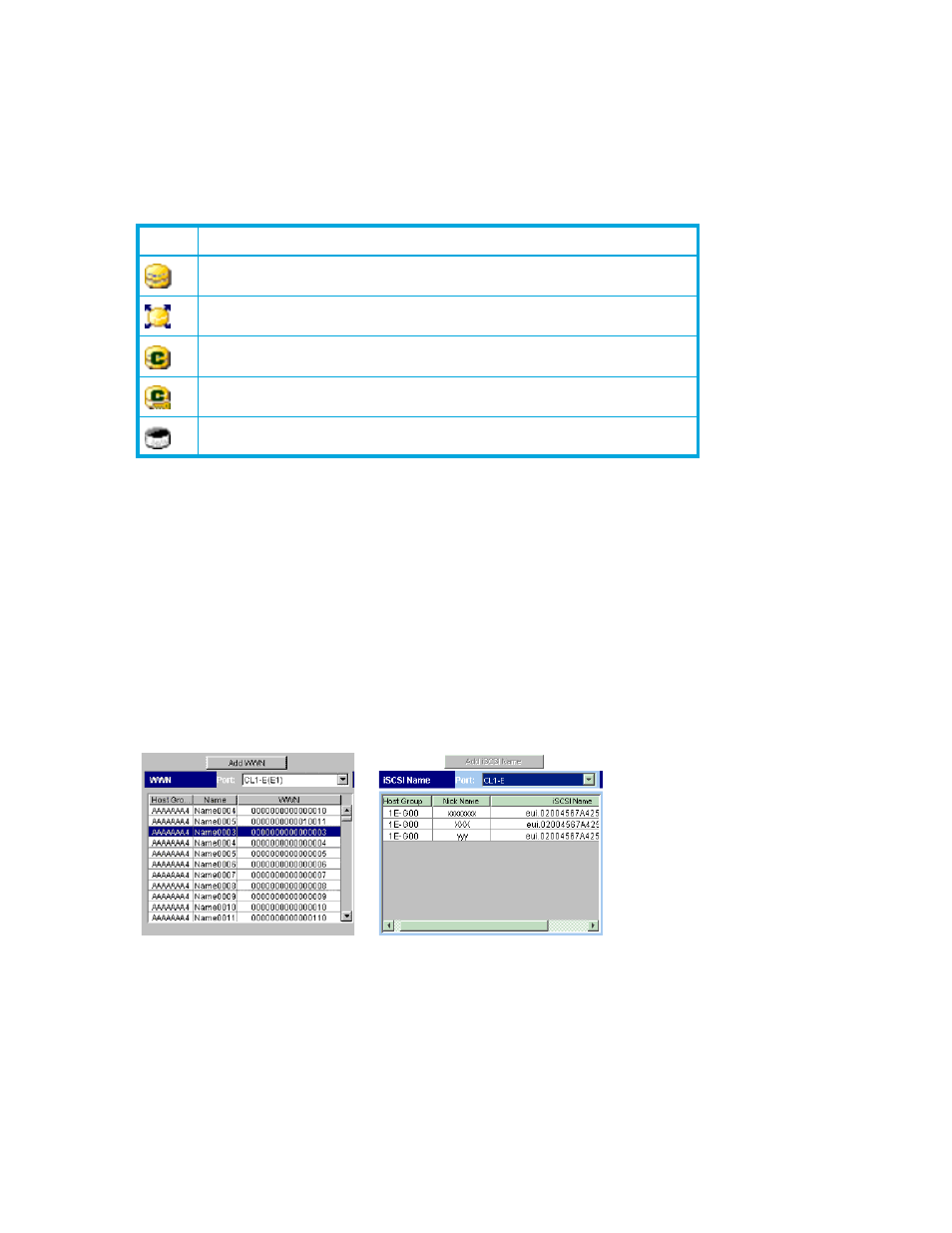

Figure 13 WWN and iSCSI name tables
The lower-left corner of the LUN Manager tab displays the WWN or iSCSI Name table. If you selected a
Fibre Channel port in the LU Path tree, the WWN table appears. If you selected an iSCSI port, the iSCSI
Name table appears.
The WWN table lists host bus adapters that are connected to Fibre Channel ports on the disk array and
the iSCSI Name table lists host bus adapters that are connected to iSCSI ports on the disk array.
Table 9 LUN icons for LUN Manager operations
Icon Status
A logical volume to which an LU path is defined
An expanded LU
A command device
A command device with security enabled
A LUN to which no LU path is defined
