Using iLO 2 125
• Rack name
• Logged-in iLO Location
This section annotates the blade you are logged into. You can only configure blade settings for this
blade.
• Selected Bay Location
This section annotates the currently selected bay. You can view information for many different types
of components, including blades, power supplies, network components, and enclosures.
• Enclosure Details
Information about a particular enclosure is viewed by selecting Details located on the enumerated
enclosure headers.

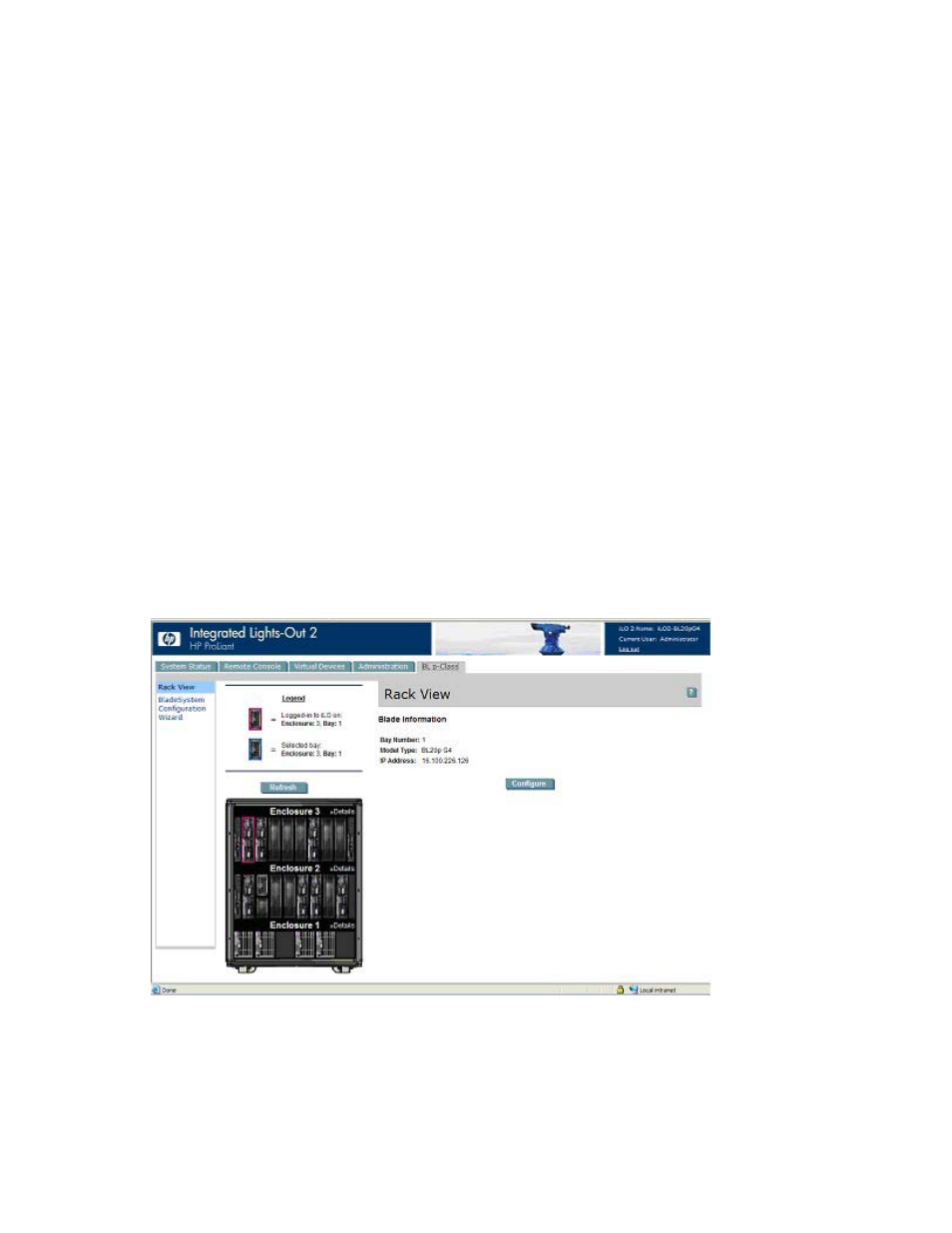

A Refresh button is available to obtain current Rack View information. Click Refresh to force the entire
graphical representation of the rack to be redrawn. This operation takes a few moments.
If the rack view information cannot be properly obtained, an error message appears in place of the
rendered components. The Refresh button can be used to make another attempt to obtain the proper rack
view data. Rack View functionality requires version 2.10 or later of the Server Blade and Power
Management Module firmware to display correctly.
Blade configuration and information
The blade configuration option provides information regarding the identity, location, and network address
of the blade selected on the Rack View page. To view these settings, select a blade component and select
Configure on the Rack View (on page
124 ) page. You can change some of the settings for the blade in
which you are currently logged in. To save changes, click Apply.
The following fields are available:
• Identification Information
o Bay Name
o Bay Number
