Description Item
PCI power connector 24
TPM connector 25
PCIe riser board connectors (2) 26
Accessing the HP System Insight Display
You access the HP System Insight Display the same way for the VLS9000 and VLS9200 systems.
See
“Accessing the HP Systems Insight Display” (page 178) .

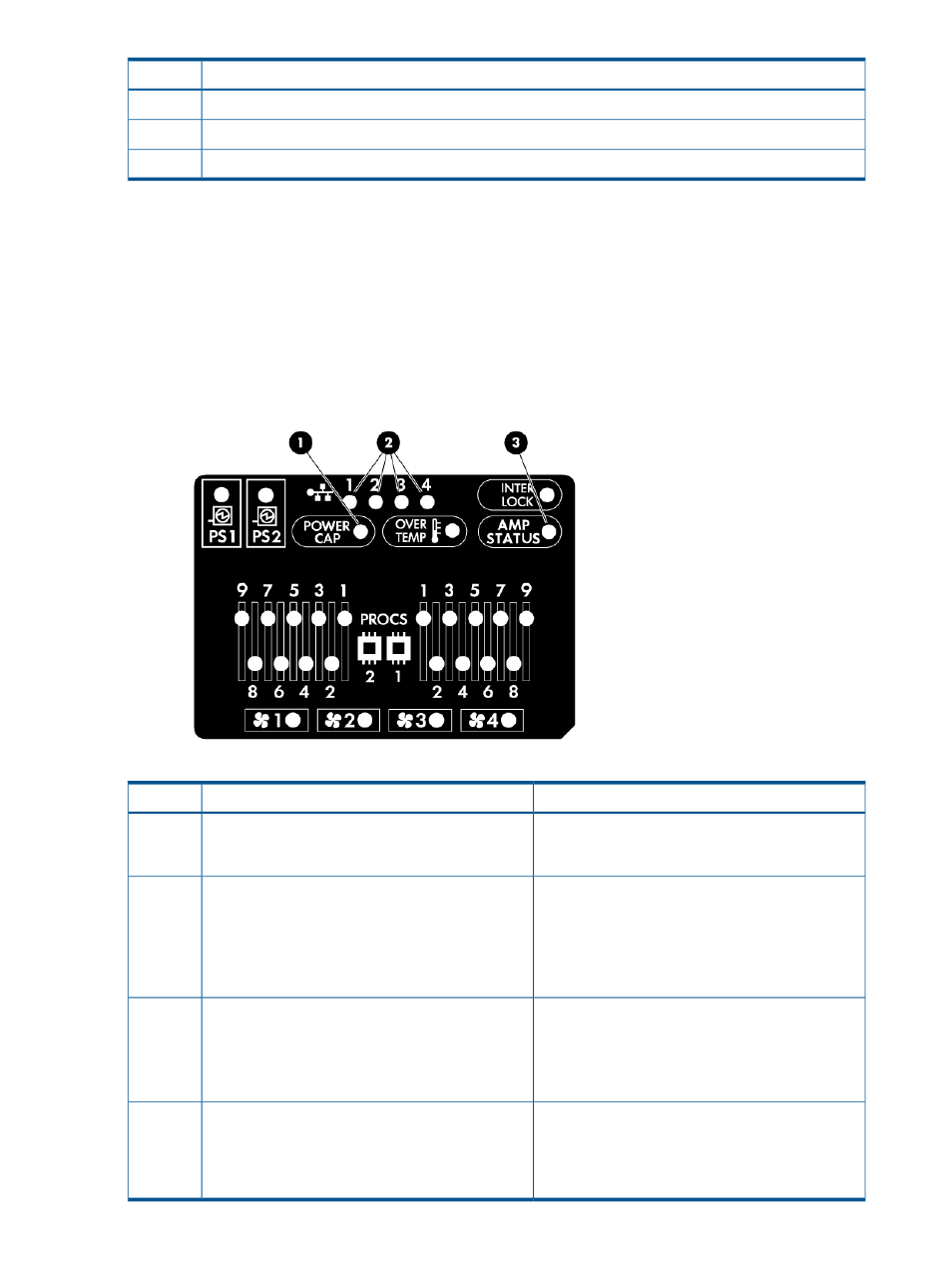

HP Systems Insight Display and LEDs
The display provides status for all internal LEDs and enables diagnosis with the access panel
installed.
To view the LEDs, access the HP Systems Insight Display.
Status Description Item
To determine Power cap status, see HP Systems
Insight Display LEDs and Internal Health LED
Combinations
.
Power cap LED 1
Green = Network link exists NIC LEDs 2
Flashing green = Network link and activity exist
Off = No link to network exists
If power is off, the front panel LED is not active. For
status, see
Rear Panel LEDs and Buttons .
Green = AMP mode enabled AMP status 3
Amber = Failover
Flashing amber = Invalid configuration
Off = AMP mode disabled
Amber = Failure All other LEDs
Off = Normal.
For possible failure causes, see HP Systems Insight
Display LEDs and Internal Health LED Combinations .
