Centralized Backup Configuration
A centralized backup configuration, as shown in
, allows you to maximize the
resources and performance of the Exchange servers through off-host central control management
capabilities. A single backup server can remotely create virtual copies on multiple Exchange servers
and manage all virtual copies on the backup server.
This type of configuration is recommended if you need to manage multiple Exchange servers or
are in a clustered environment.

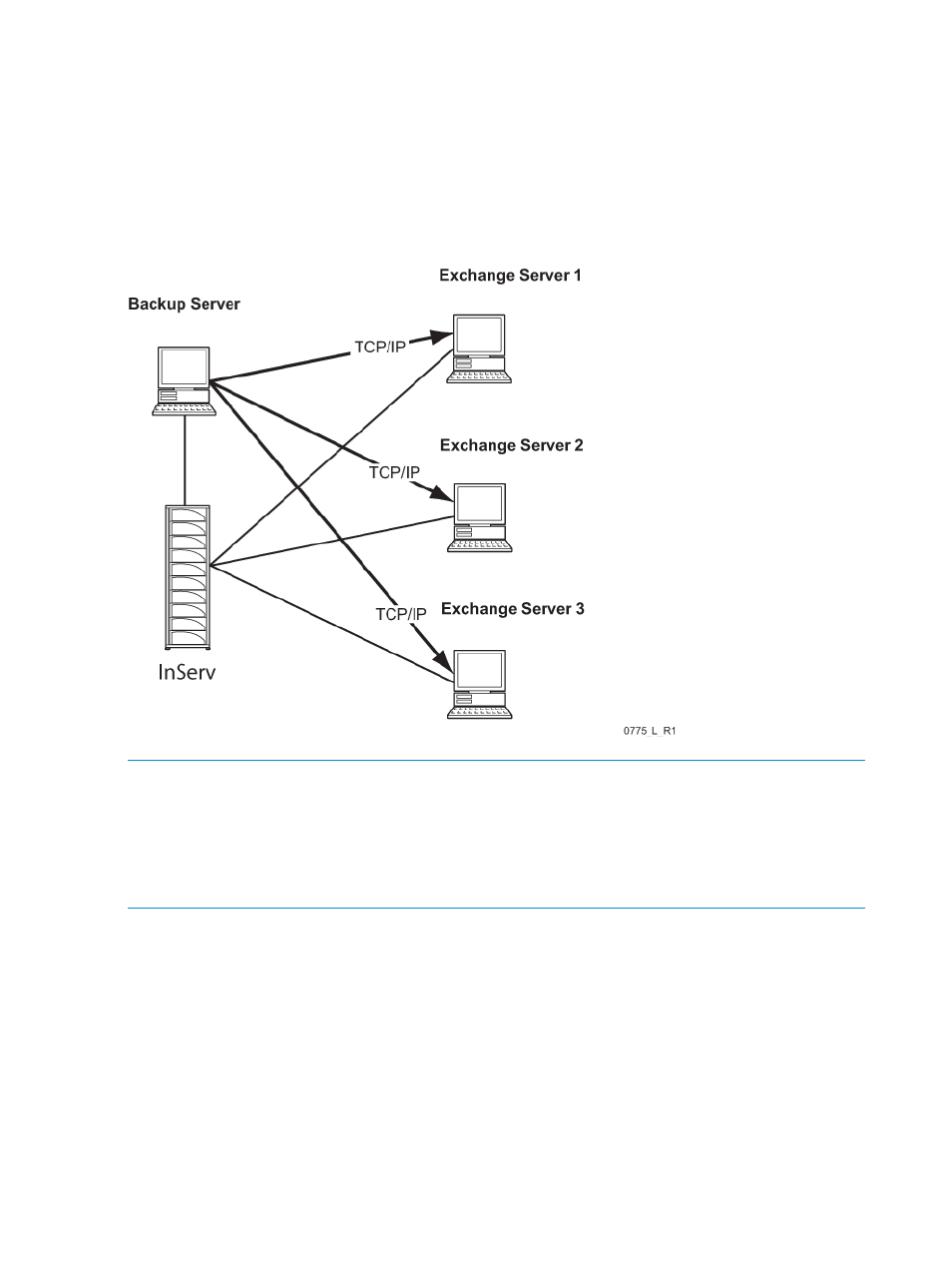

Figure 2 Centralized Backup Configuration
NOTE:
The Exchange System Management Tools is required on the Recovery Manager Backup
Server for Exchange database for validation purposes. In addition, the Exchange Servers and the
Management Tools must use matched release and service pack versions.
NOTE:
All the Exchange servers, including the Recovery Manager Backup Server component,
must be in the same Windows domain (unless you have configured Recovery Manager to use
multiple Active Directory domains).
Single Host Backup Configuration
A single host backup configuration, as shown in
, allows you to manage virtual
copies locally on the Exchange server.
14
Overview of Recovery Manager
