How VSS Works with Exchange

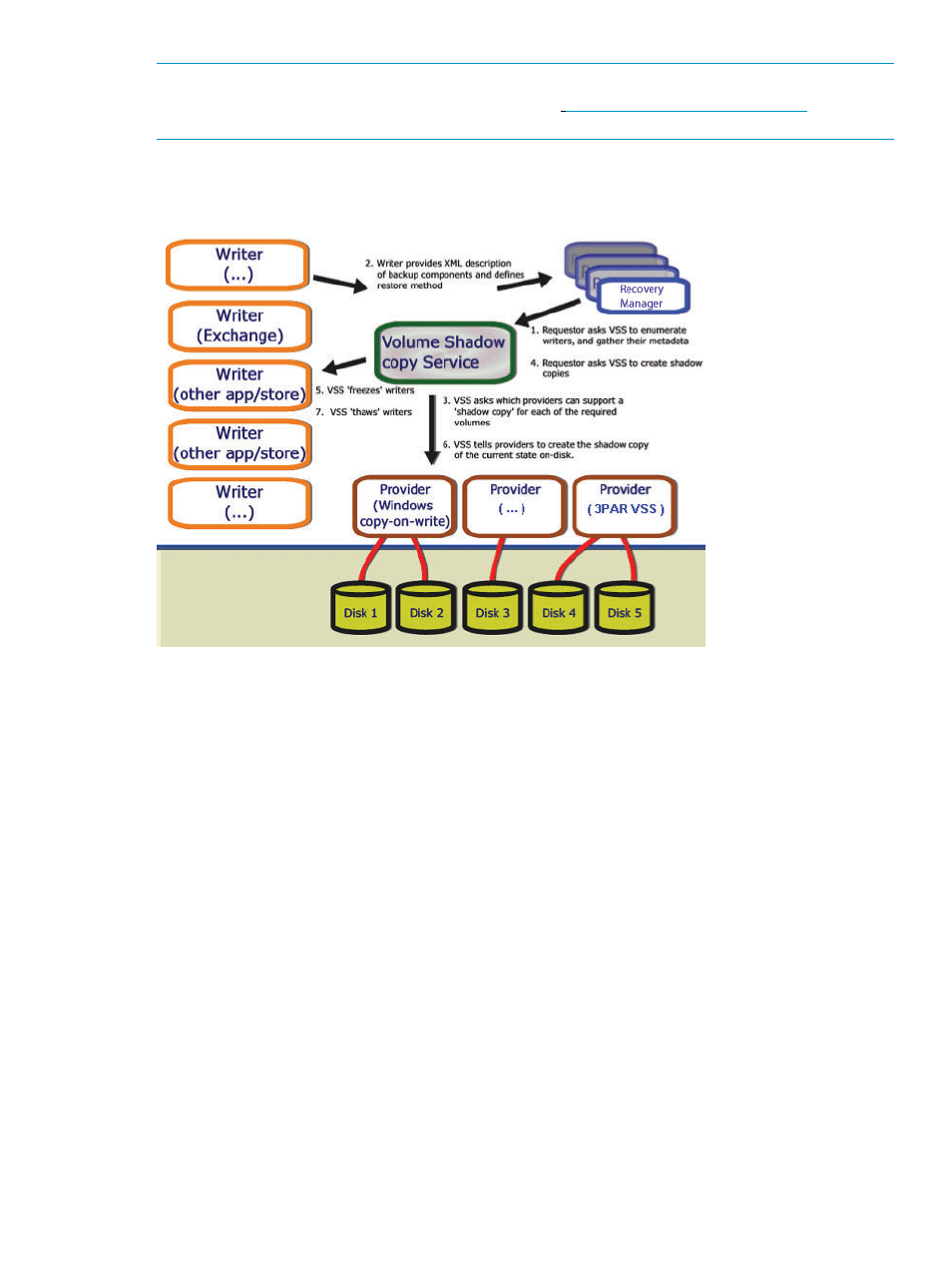

Figure 1 HP 3PAR VSS Provider Software for Microsoft Windows Operation Overview
1.
The requestor (Recovery Manager) sends a command to the Volume Shadow Copy service to
take a shadow copy of the selected Exchange storage group.
If a previous request is still in process, Recovery Manager adds the new request to the request
queue.
2.
The Volume Shadow Copy service communicates with the Exchange writer to flush the current
log file generation to disk and suspend any writes to the log files and to the .edb file. The
.stm
file is not allowed to grow; however, read-only access is still allowed. Therefore, anything
that is already there can still be accessed from the client.
3.
Volume Shadow Copy service communicates with the provider to initiate the shadow copy
process for the disk volumes that contain Exchange data. VSS talks to the writers and providers
to fix a point in time for the shadow copy to take place; it is the provider that actually does
the shadow copy.
4.
The shadow copy typically takes less than a minute. Clients that use Microsoft Outlook in
cached mode do not notice any disruption. Clients of earlier versions of Outlook might see
the hourglass icon for several moments during the shadow copy process.
5.
After the shadow copy is created, Volume Shadow Copy service communicates with the
Exchange writer to indicate that it can resume writing to disk.
6.
The queues of the email transactions are written to the logs.
The shadow copy is now available to the requestor for backing up.
Recovery Manager Layout
Recovery Manager allows for many types of configuration, depending on your setup.
