ADTRAN Express XRT - Manual (Page 66)

Chapter 5. Upgrading Software
52 Express XRT User Guide 61202.153L3-1
first button on the left). Once a connection is established, Con-
nected
displays at the bottom of the Session window.
10.Type AT!FLASHLOAD to initiate the software update. The
AT command will not be visible since echo is off by default. To
enable echo, type ATE1.
11.Press the Y key on the keyboard when prompted if you are
ready to proceed with the software upgrade.
12.Click on the Transfer menu and then click Send.

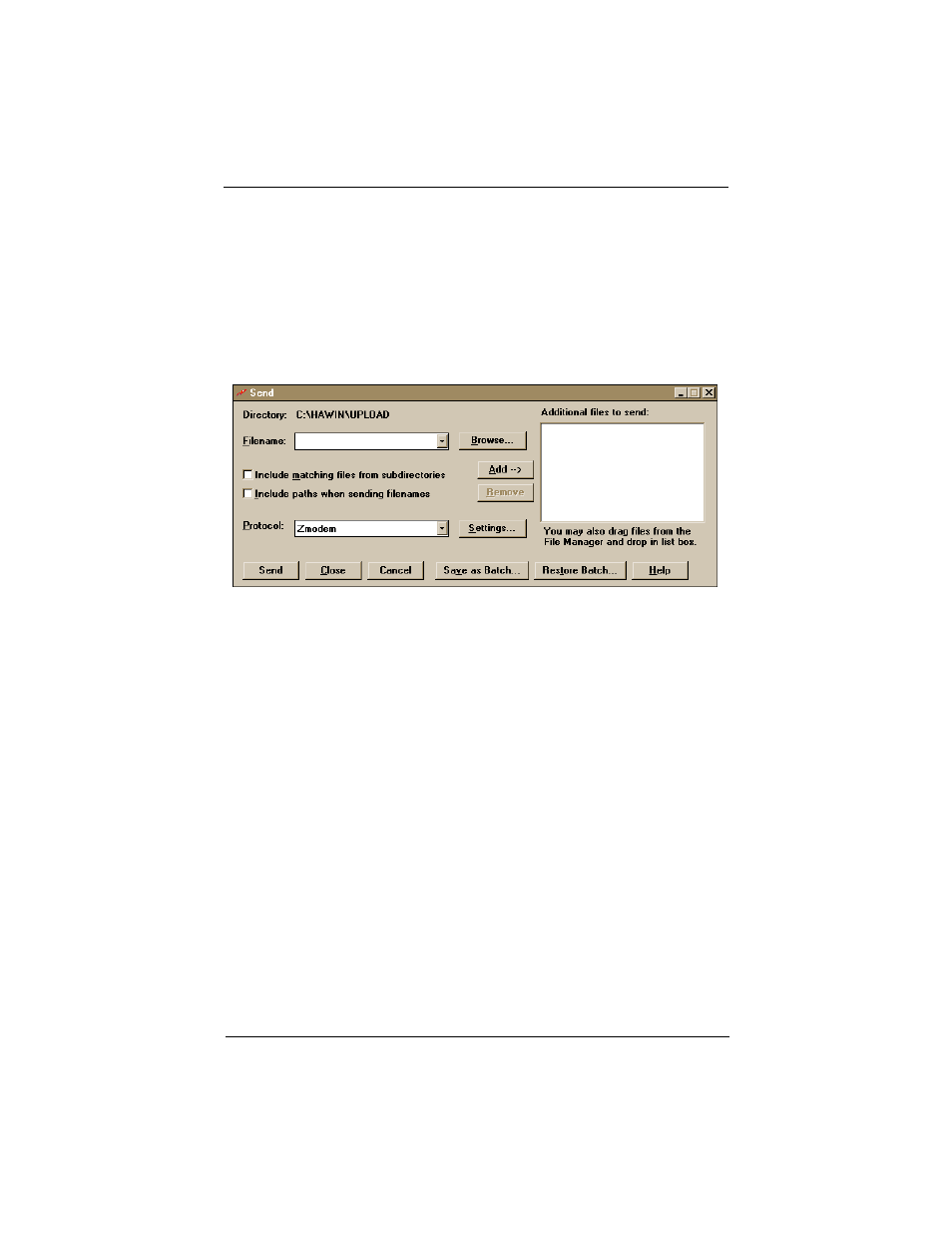

Figure 5-4
Send Dialog Box
13.Click Browse to locate the software upgrade file.
14.Select 1K Xmodem for the Protocol.
15.Click Send.
16.Once the download is complete, exit HyperACCESS, saving
the session if desired.
The software update is now complete. If the PWR/LINE, B1, and
B2
LEDS are flashing, the software update failed. See Trouble-
shooting on page 53 if the software upgrade failed.
