Network Management Card User’s Guide
4
Front Panel
Features

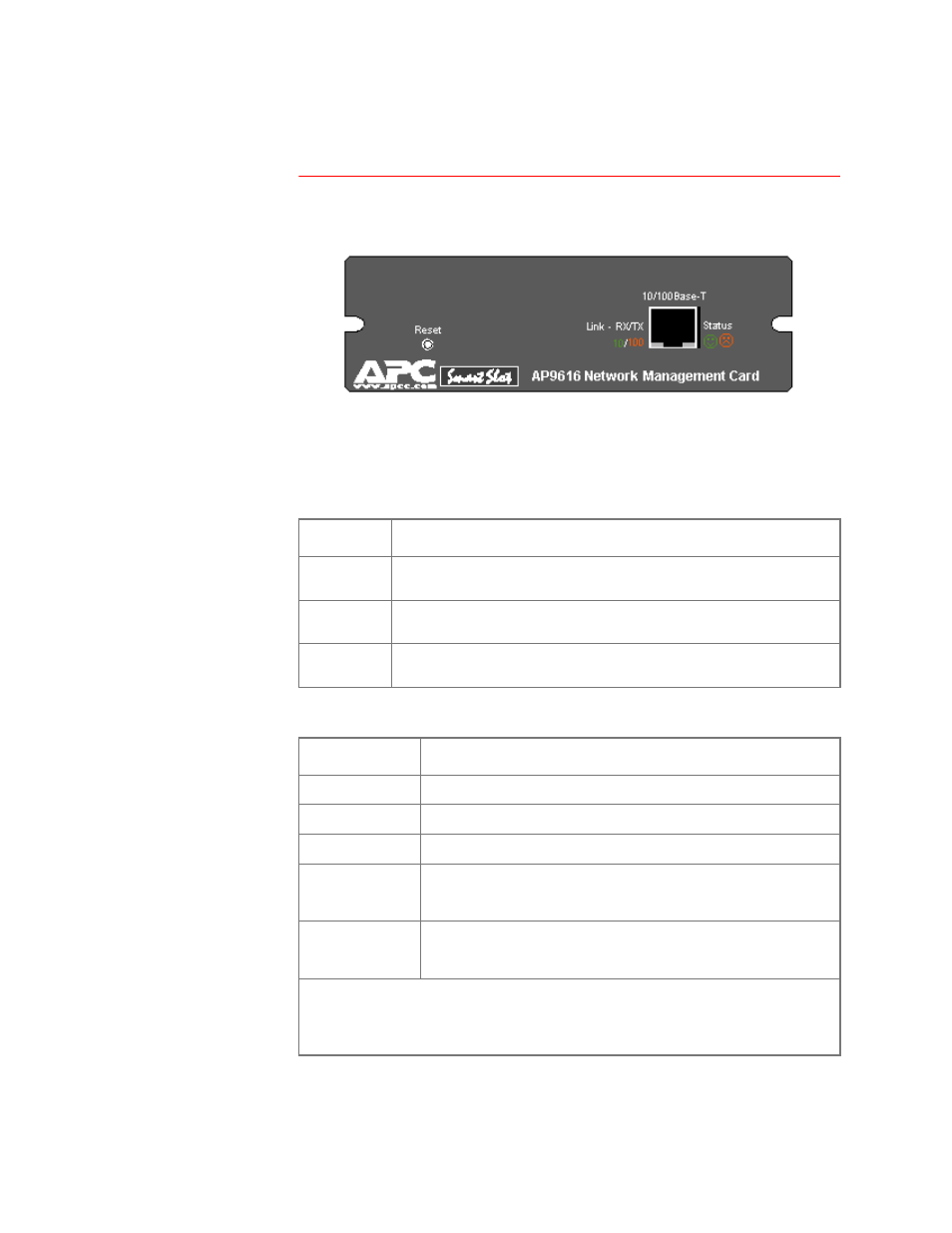

The following graphic identifies the Network Management Card’s
features:
Reset Button.
Allows you to reset the Management Card
while power
is on.
10/100Base-T Port.
Used to connect to the Ethernet network.
Link-RX/TX LED.
This
LED
indicates the network status.
Status LED.
This
LED
indicates the status of the Management Card.
&RQGLWLRQ
'HVFULSWLRQ
Off
The device which connects the Management Card to the network is
turned off or not operating correctly.
Flashing
Green
The Management Card is receiving data packets from the network at
10 Megabits per second (Mbs).
Flashing
Orange
The Management Card is receiving data packets from the network at
100 Megabits per second (Mbs).
&RQGLWLRQ
'HVFULSWLRQ
Off
The Management Card has no power.
Solid Green
The Management Card has valid network settings.
Flashing Green
The Management Card does not have valid TCP/IP settings.
1
Solid Orange
A hardware failure has been detected in the Management Card.
Contact APC Technical Support as described in
Flashing
Orange
The Management Card is making
BOOTP
requests. If you do not
use a BOOTP server, you need to configure the Management
Card’s TCP/IP settings.
1
1 For information about how to configure the three TCP/IP settings that the
Management Card needs to operate on the network, see the Network Management
Card Installation and Quick Start Manual provided in printed format, and in PDF
format on the APC Network Management Card utility CD (.\doc\Insguide.pdf).
