Left Side Right Side
e Ink Tank
Cartridges of ink in various colors.

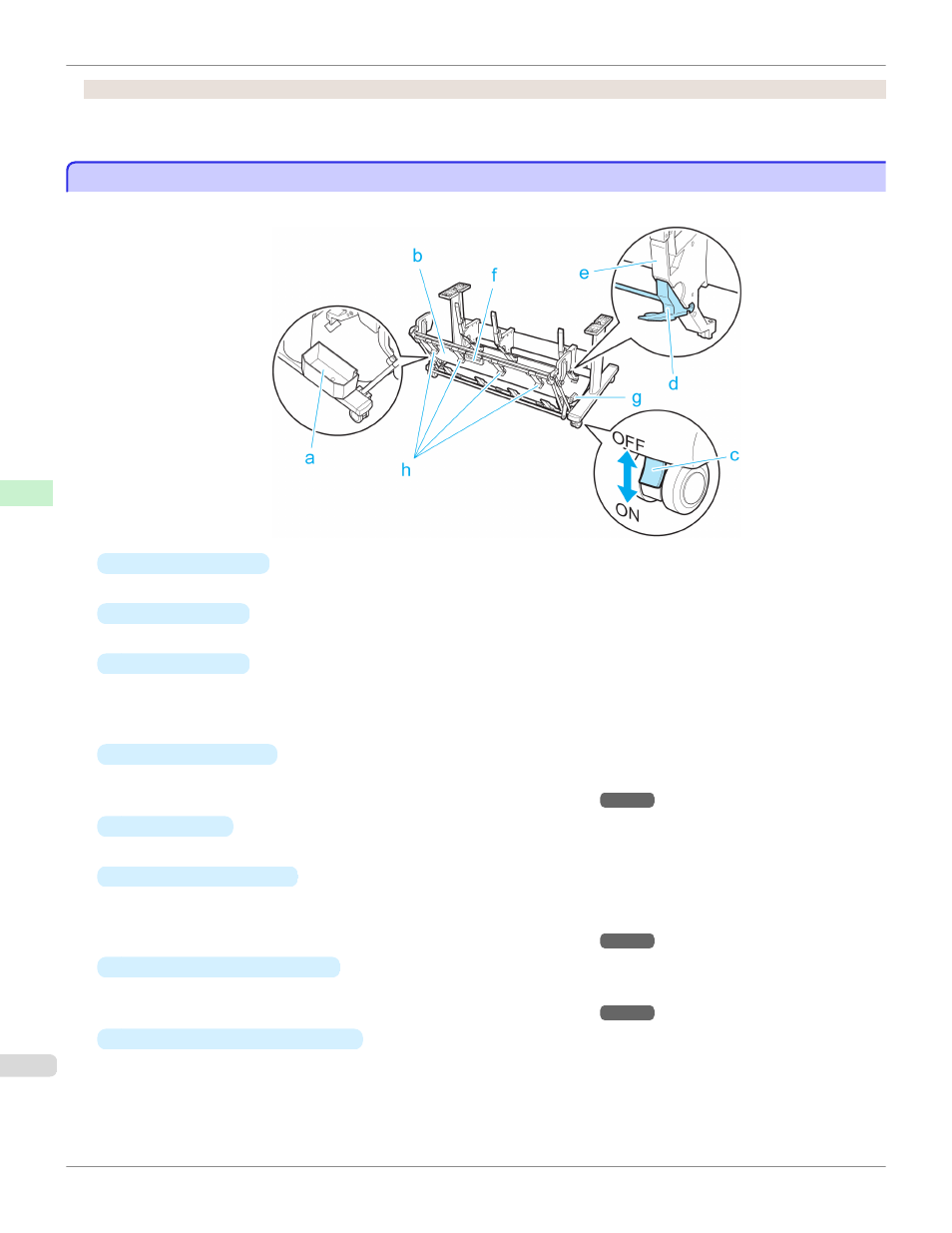

Stand Stand
• Printer Stand ST-34
a Accessory Pocket
Stores printer accessories.
b Output Stacker
Printed documents are ejected into the output tray.
c Locking Caster
Lock to immobilize the caster.
Before moving the printer, always unlock all four casters. Moving the printer while casters are locked may
scratch the casters or the floor.
d Adjustable Stopper
Pull out depending on the paper size when using the output stacker in the Extended position A.
For details on the extended position, see "Using the Output Stacker."
→P.472
e Paper Guide
Guides printed documents into the output stacker.
f Output stacker handle
This handle is grasped and supports the sliding output stacker when putting the output stacker into Extended
position B and returning it to the regular position.
For details on the extended position, see "Using the Output Stacker."
→P.472
g Output stacker release lever
Pull this lever towards you to release Extended position B.
For details on the extended position, see "Using the Output Stacker."
→P.472
h Output Stacker Ejection Guides
This guide supports the paper that is output when using the output stacker in Extended position B.
Stand iPF765
