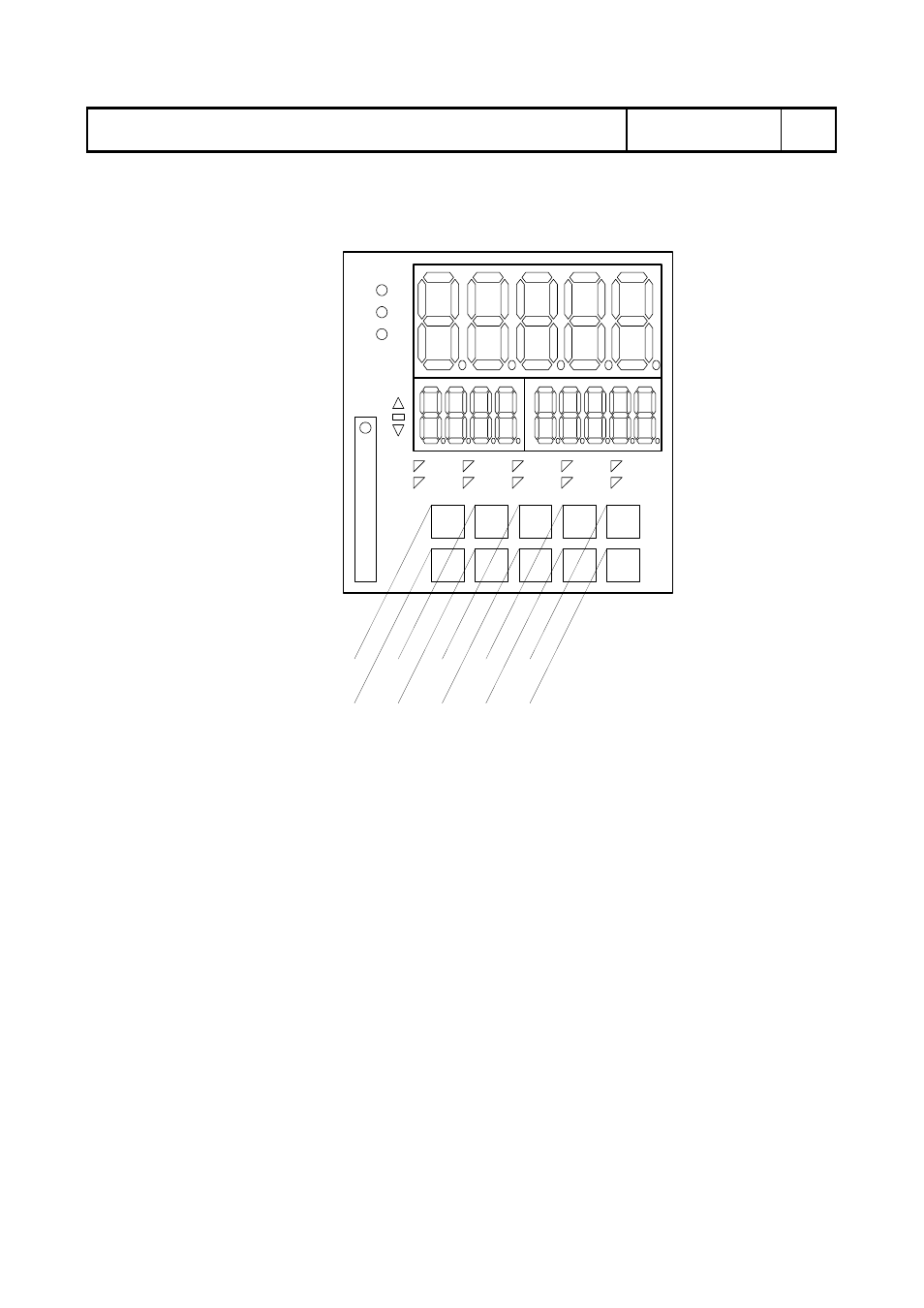

3. Key description
① CH key
Changes displayed channels.
② A/M key
Toggles the system between Auto and Manual.
③ F1 key
④ F2 key
⑤ F3 key
Serve as function keys, thus setting an operation.
⑥ MODE key
Changes screens.
⑦ ▼ key
⑧ ▲ key
Change the setting.
⑨ ≪ key
Moves the setting change digit.
⑩ ENT key
Finalizes a setting entered.
