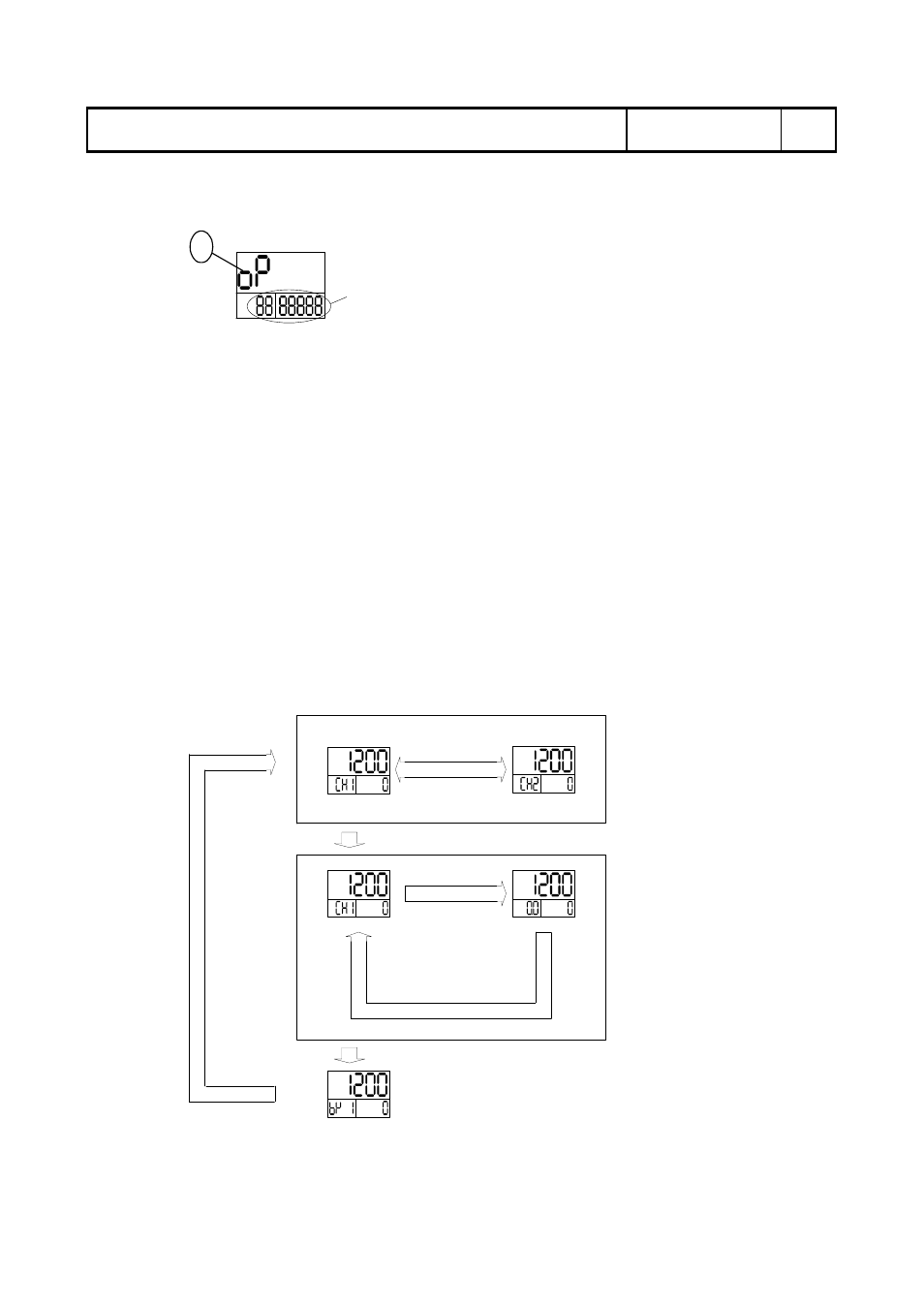

Initial screen 2 (option check screen)
Option
Green
Options: Option types
: Communications (RS-485/RS-232C)
: CT1, CT2 (measurement range, 0-50A)
: CT1, CT2 (measurement range, 0-120A)
: Event input
: Infrared communications
: Sensor power supply
: Data log
: Transmission output (voltage 0-1V DC)
: Transmission output (voltage 0-5V DC)
: Transmission output (voltage 1-5V DC)
: Transmission output (voltage 0-10V DC)
: Transmission output (current 4-20mA DC)
About the operation screen
ＣＨ key
MODE + CH key
MODE + CH key
3 seconds later
ＣＨ key
MODE + CH key
PV/SV/CH display
PV/SV/MV display
PV/SV/bank display
If the DIs are not set to bank switchover, the ▲
and ▼ keys can be used to switch over banks.
Allows channel switchover. The
channel display remains on for 3
seconds after channels are
switched over.
The auxiliary screen in the PV/SV/MV display switches over among CH1MV1, CH1MV2,
CH2MV1, and CH2MV2 every time the CH key is pressed.
