(2) OFF delay
Turning on the system starts it in a startup setting state.
When a set time is up, control stops.
OFF delay
(control in
progress)
Stop state
(control
stopped)
OFF delay T.O.
Power
OFF
Power ON
(3) Repeat
Turning on the system starts it in a startup setting state.
It will repeat a set number of ON delays and OFF delays, then ends in a final setting state.
The set repetition frequency will be the number of timer starts for reaching the final state.
To terminate the final state with control, for example, set the number of ON delays to be
executed, with the repetition frequency.
If the ON delay, OFF delay, or repetition frequency is set to a "0," it will enter the final state
the moment it is turned on.

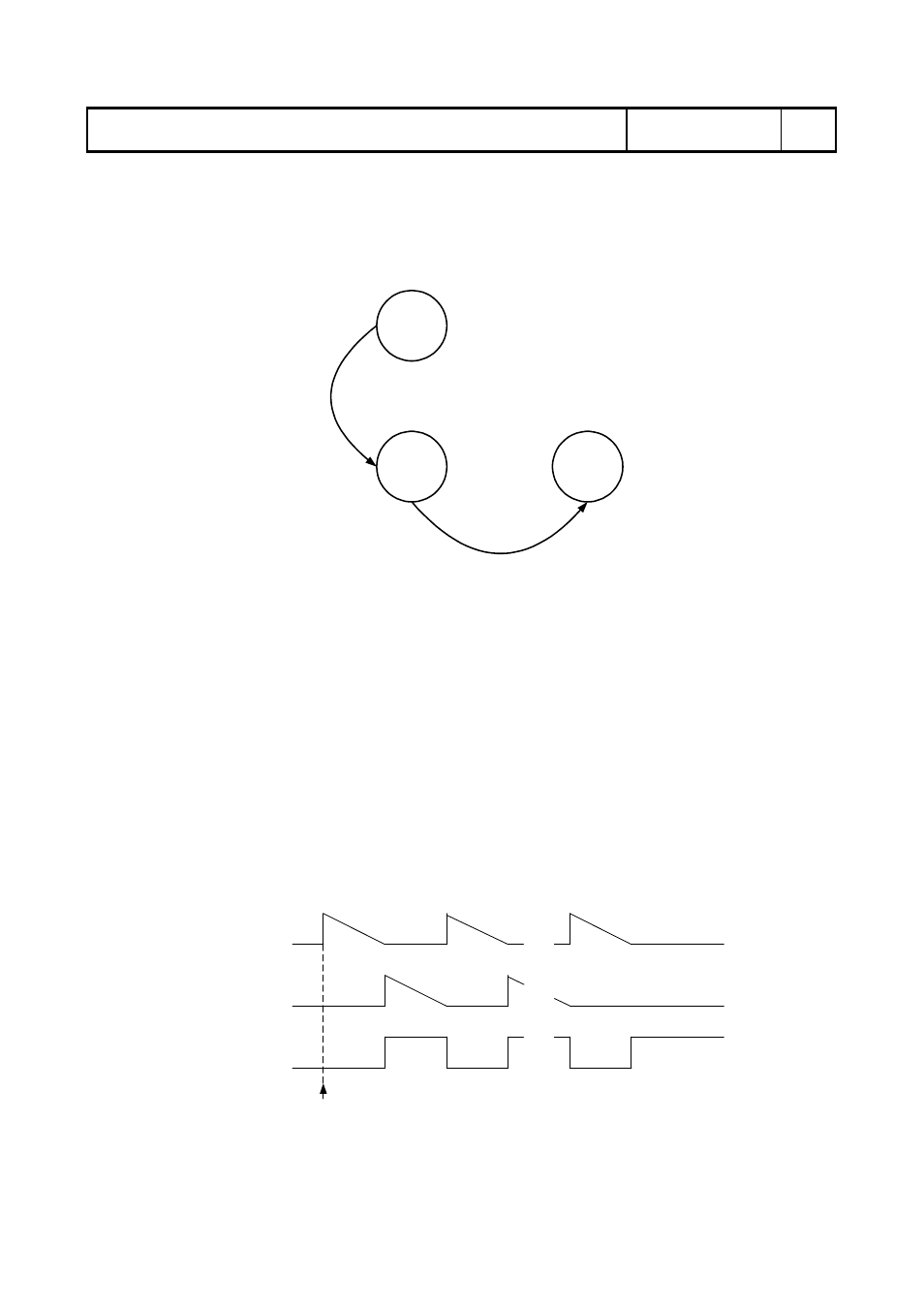

Following is a timing chart.
Startup state, RDY; stop state, RUN
ON delay
timer
OFF delay
timer
Control state
Power ON
