MODE key
MODE key

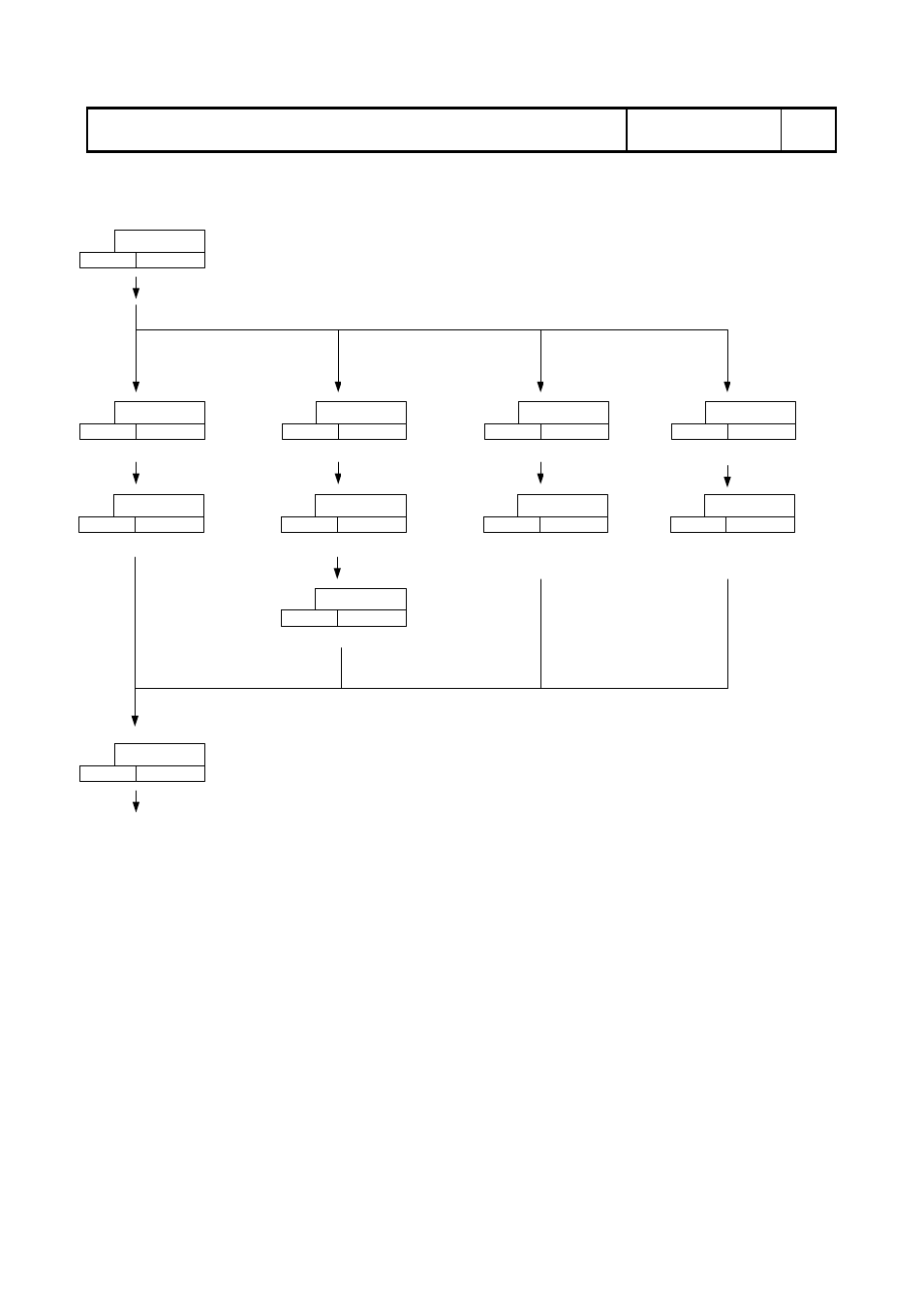

Set an SV limiter upper limit

 
MODE key
Set an SV limiter lower limit

 
MODE key
Set an upper limit for cascade scaling
Set a lower limit for cascade scaling
Set the SV for cascade AT
Set an upper limit for remote scaling
Set a lower limit for remote scaling
Adjust the feedback resistance
when fully closed
Adjust the feedback resistance
when fully open
MODE key

 
MODE key

 
MODE key

 
MODE key
MODE key

 
MODE key

 
MODE key
 
 
MODE key
MODE key

 
MODE key

 
MODE key
With cascade control selected With remote input selected With potentiometer input selected
