150kW InfraStruXure System—Installation and Start-Up 23
Install Shielding Troughs, Shielding
Partitions, and Cable Ladders
Shielding Troughs and Shielding Partitions for overhead wiring along rows
If you ordered APC Shielding Troughs, Shielding Partitions, and Cable Ladders to route overhead
wiring for your system, assemble the Shielding Troughs and the Shielding Partitions along the rows
of enclosures and assemble the Cable Ladders between rows.
See also
For information on grounding the Shielding Troughs and Shielding Partitions, see the
instruction sheet (990-1393B) included with the Shielding Troughs and Shielding
Partitions.
Shielding Troughs.

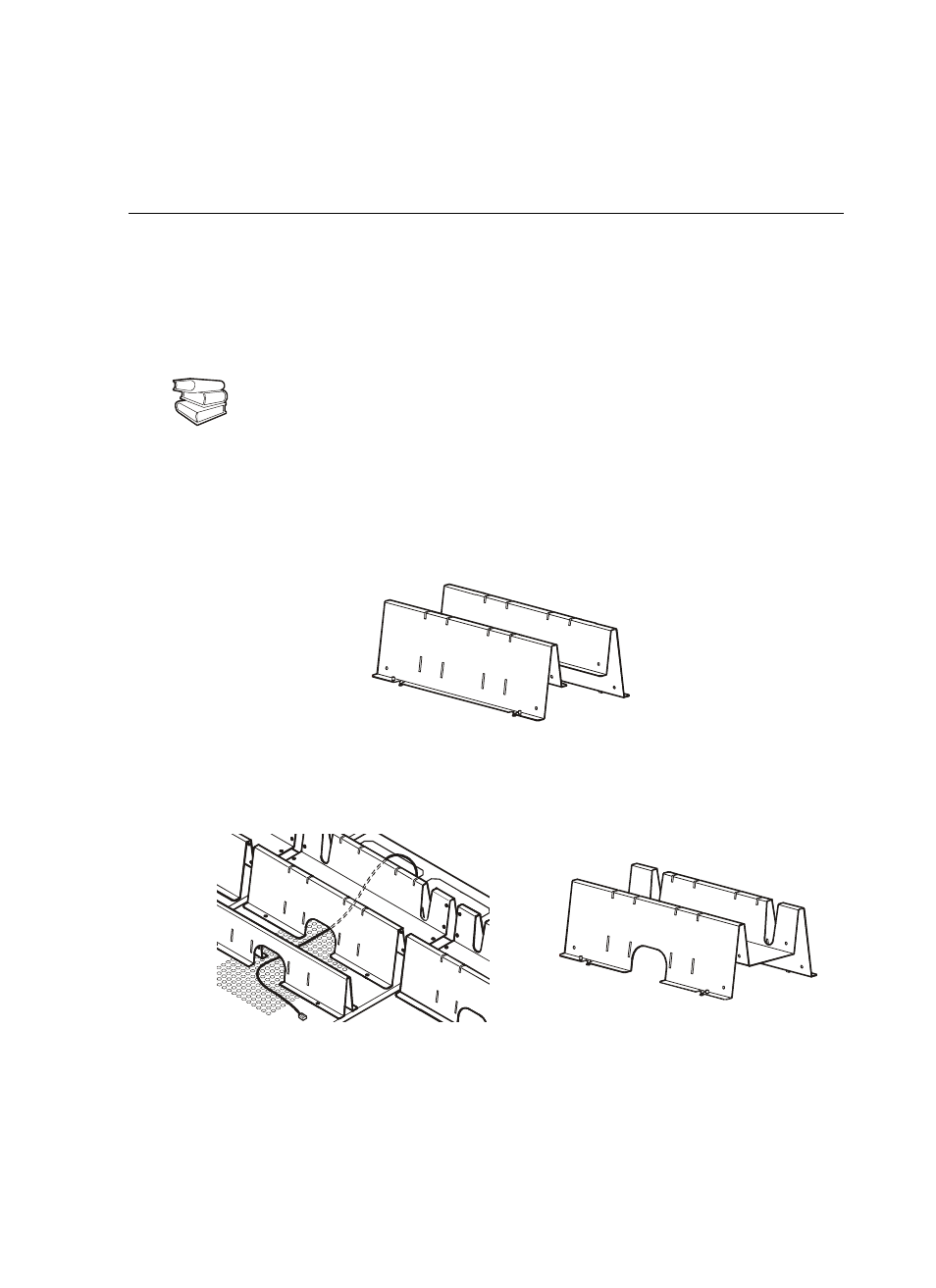

There are two types of Shielding Troughs:
• The PDU Shielding Trough, 24 inches (610 millimeters) in length, is not adjustable. The
trough sits on top of the InfraStruXure PDU and accommodates power cables as they exit the
roof of the PDU.
• The NetShelter Shielding Trough is 24 inches (610millimeters) in length and is not adjustable.
The Shielding Troughs have an opening in each side through which you route data cables to
the Shielding Partitions.
Shielding Trough accessories.
APC offers the following accessories for Shielding Troughs:
• Shielding Trough Covers for both 24- inch (600-millimeter) wide (AR8174BLK) and 30-inch
(750-millimeter) wide (AR8175BLK) enclosures. Contact APC for more information.
• Shielding Trough End Caps (AR8167BLK) to place on the side of a Shielding Trough at the
end of a row. Contact APC for more information.
