150kW InfraStruXure System—Installation and Start-Up
5

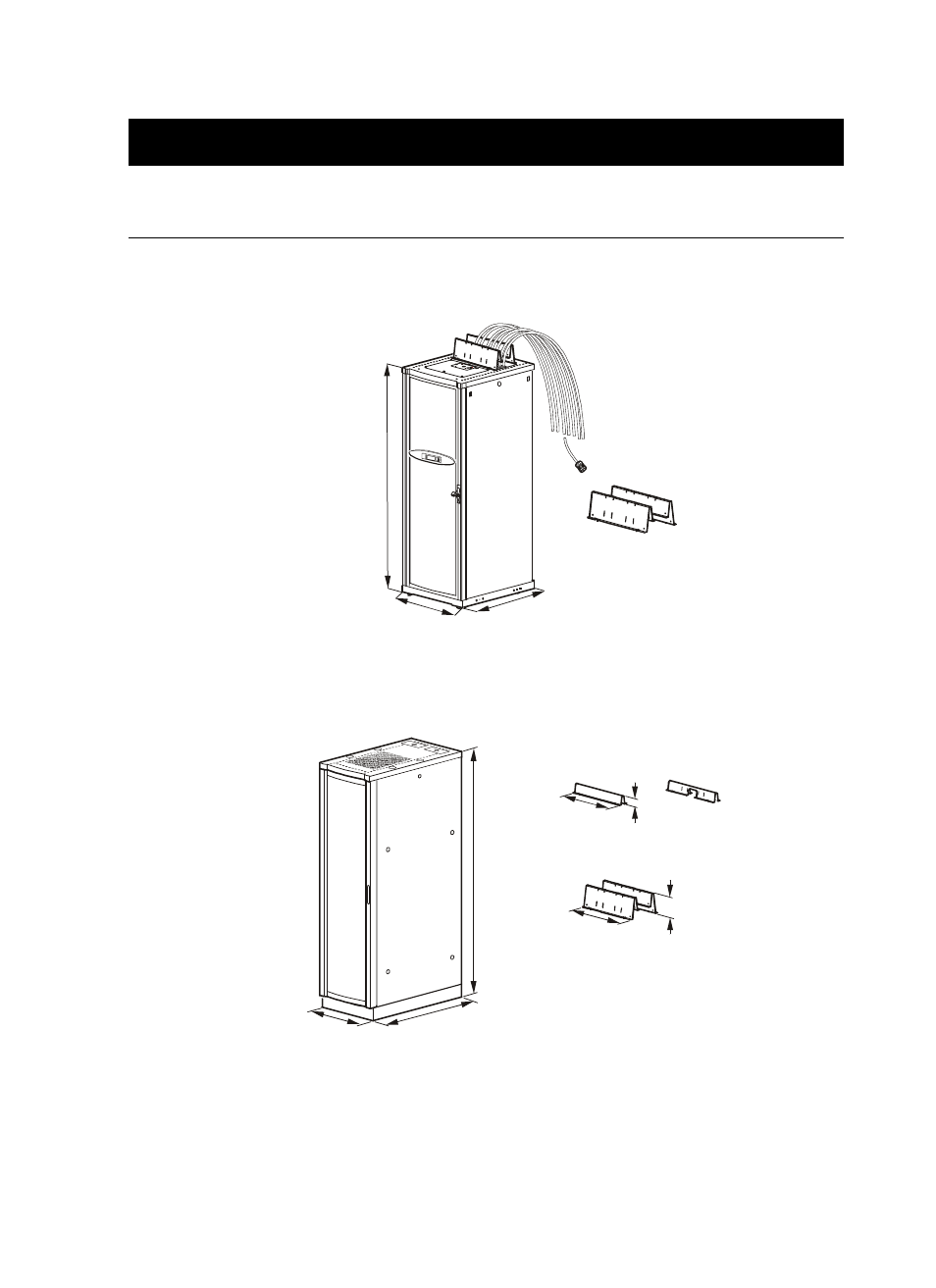

Site Planning
Dimensions
InfraStruXure PDU
NetShelter VX Enclosure
81in (2060mm)
7.2in
(183mm)
Without PDU Shielding Trough
Including PDU Shielding Trough
88.2in (2240mm)
36in (910mm)
29in (710mm)
23in (584mm)
PDU Shielding Trough
Shielding Partitions
23.5in
4.8in
(597mm)
(122mm)
23.5in
(597mm)
7.2in
(183mm)
81.5in
(2070mm)
42.2in
23.5in
(597mm)
(1072mm)
