6.4 Drive profile DRIVECOM 21
If the drive profile parameter (P551) is switched on in the frequency inverter, the device supports the
profile as per DRIVECOM 21 (speed profile). The mandatory objects are implemented (see
overview).
The profile is only valid in parameter set 1.

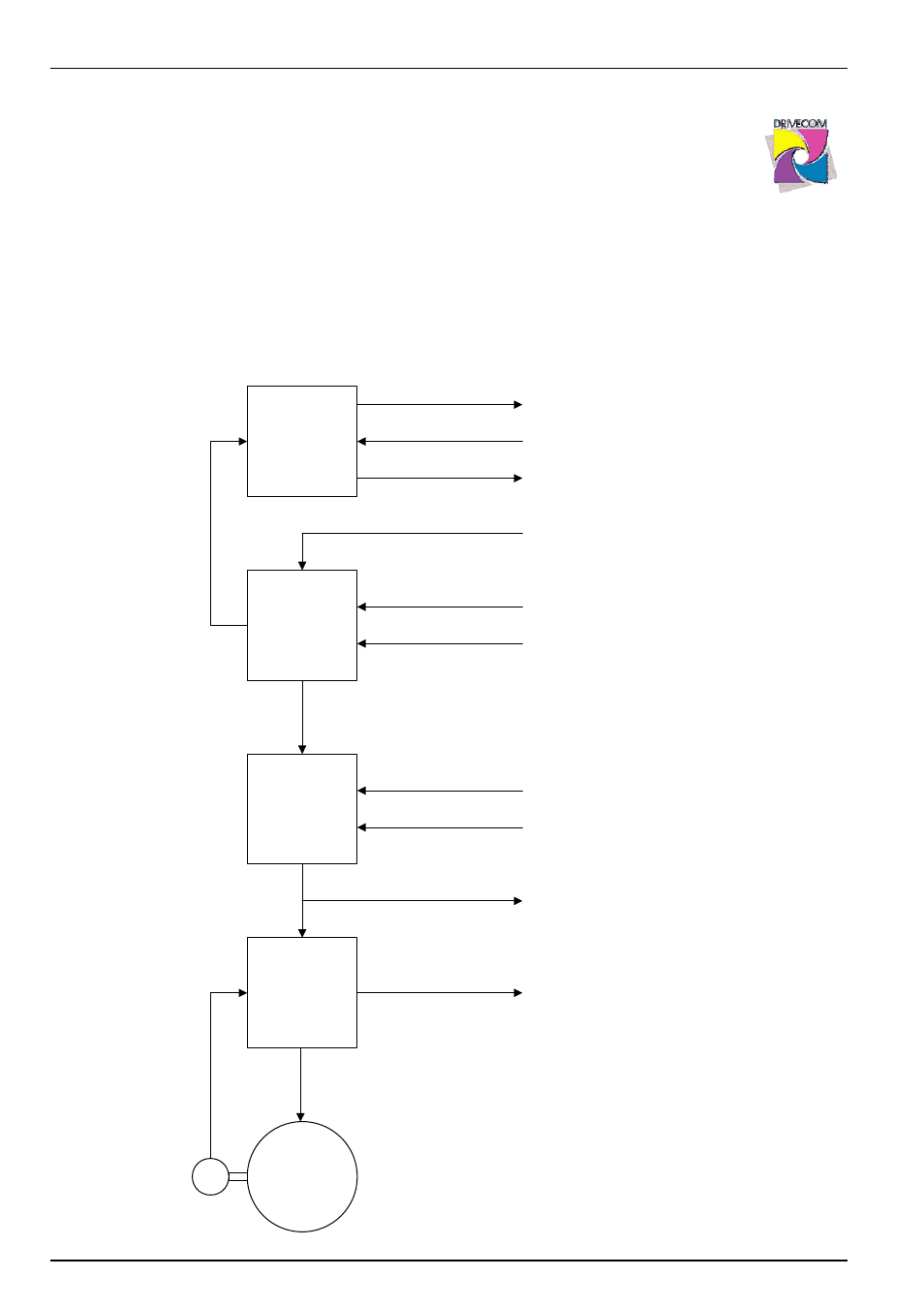

6.4.1 Speed functions overview
M T
Controller
Speed
restriction
Ramp
function
Status
Limit
value
reached
Error code
USS
display
Status word
Setpoint
Minimum amount
Acceleration
Maximum amount
Deceleration
Guidance variable
Actual value
Speed function 1
DRIVECOM
display
Control word
P700
P104
P105
P102 / P105
P103 / P105
P718.2
Pzd
Pzd
Pzd
Pzd
P603F
Pzd, P6040
P6046.1
P6048.1 / P6048.2
P6043
Pxxx = Parameter No.
Pzd = process data
Pzd, P6041
Pzd, P6042
Pzd, P6044
P6046.2
P6049.1 / P6049.2
(Mandatory objects only)
