2 Implementation
MI 0700 GB-0414
25
Pos : 23 /Migrati onsl eitf aden/ SK 700E - SK 500E/2. U ms etz ung/ 2. 1. 3 Z us ätzlic he O pti onen f ür die F unkti onalit ät en @ 2\ mod_1358177217573_388. doc x @ 53251 @ 3 @ 1

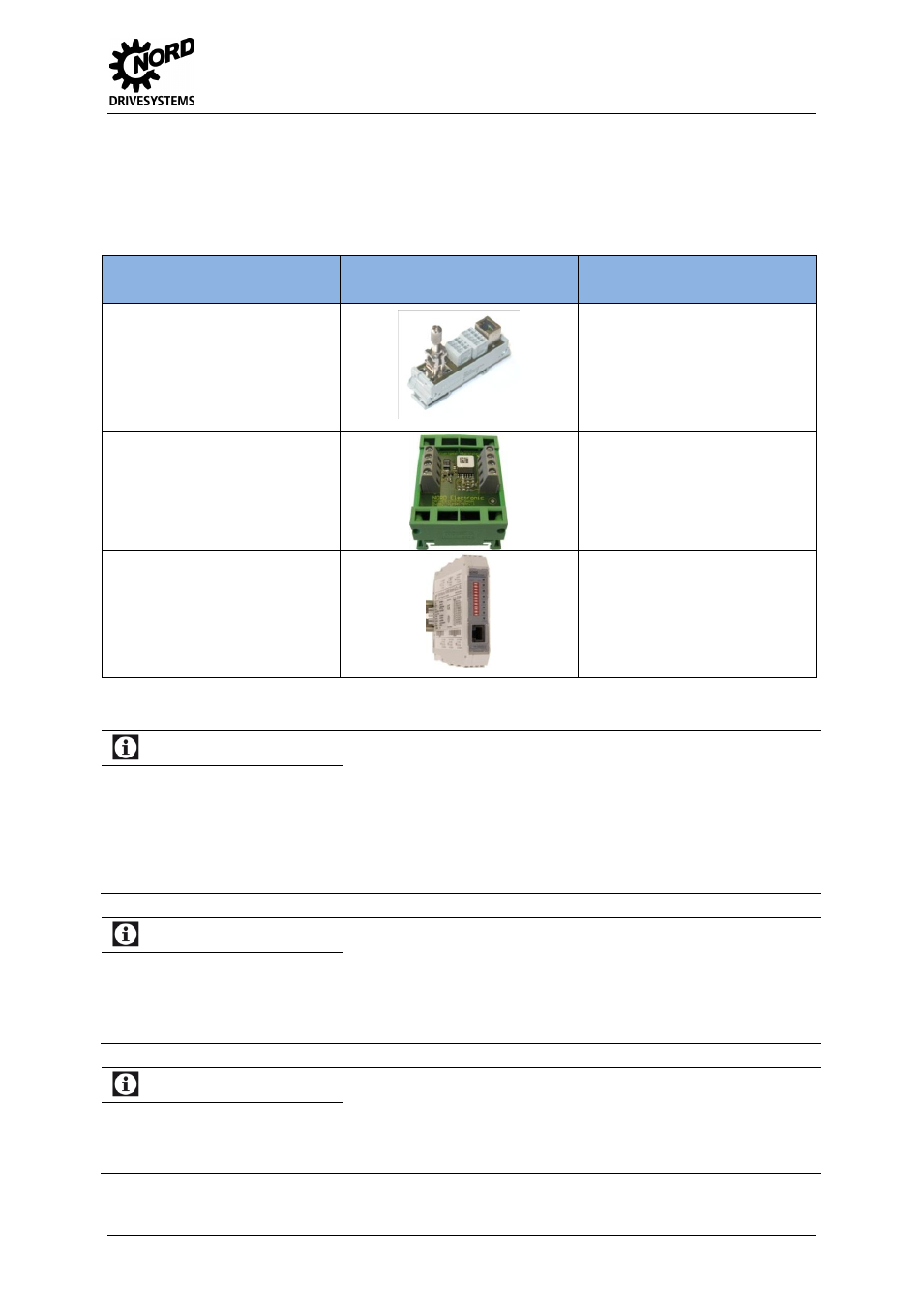

2.1.3 Additional options for the functions
To migrate the various application functions, several options are available for the SK 5xxE series of
frequency inverters.
Options
Name
Part Number
WAGO
adapter module
RJ45/terminal
278910300
Setpoint converter
±10
V → 0 … 10 V
278910320
IO extension
SK EBIOE-2
(only SK 540E / SK 545E)
275900210
Table 10: Overview of additional function options
Information
WAGO adapter module RJ45/terminal
The WAGO adapter module RJ45/terminal comes with a shield clamp and is used to connect the CAN bus cable
sand the external necessary 24 V power supply for the CAN / CANopen bus system. Signal connection occurs
with spring terminals on the input side and an RJ45 western socket on the output side. This adapter module
RJ45/terminal facilitates the connection of the CAN bus system to frequency inverters of performance levels ≥
SK 52xE.
For more information and details, please refer to the operating instructions of the frequency inverter.
Information
Setpoint converter ± 10 V
The setpoint converter ± 10 V is used to convert the signal for
the analogue inputs of unipolar (0 … 10 V and
0 / 4
… 20 mA) to bipolar (- 10 V … + 10 V) voltages. SK 5xxE frequency inverters of size 5 (≥ 11 kW) and higher
can process unipolar and also bipolar analogue inputs by way of configuration with DIP switches.
For more information and details, please refer to the operating instructions of the frequency inverter.
Information
IO extension
IO extension SK EBIOE-2 lets you connect additional IO control signals and is suitable for SK 540E or SK 545E
frequency inverters.
For more details please refer to Technical Information / Data Sheet TI 275900210.
