7
1.1.7 DIGITAL COMMUNICATIONS
The instrument can be ordered with a Digital Communications option that provides the
capability of bi-directional communications with a supervisory computer. A dual pen
instrument can have an individual address selected for each pen. Refer to the Communica-
tions Protocol Manual (Form 2878) for more details regarding the communications option.
This manual is included with the unit when the communications option is specified.

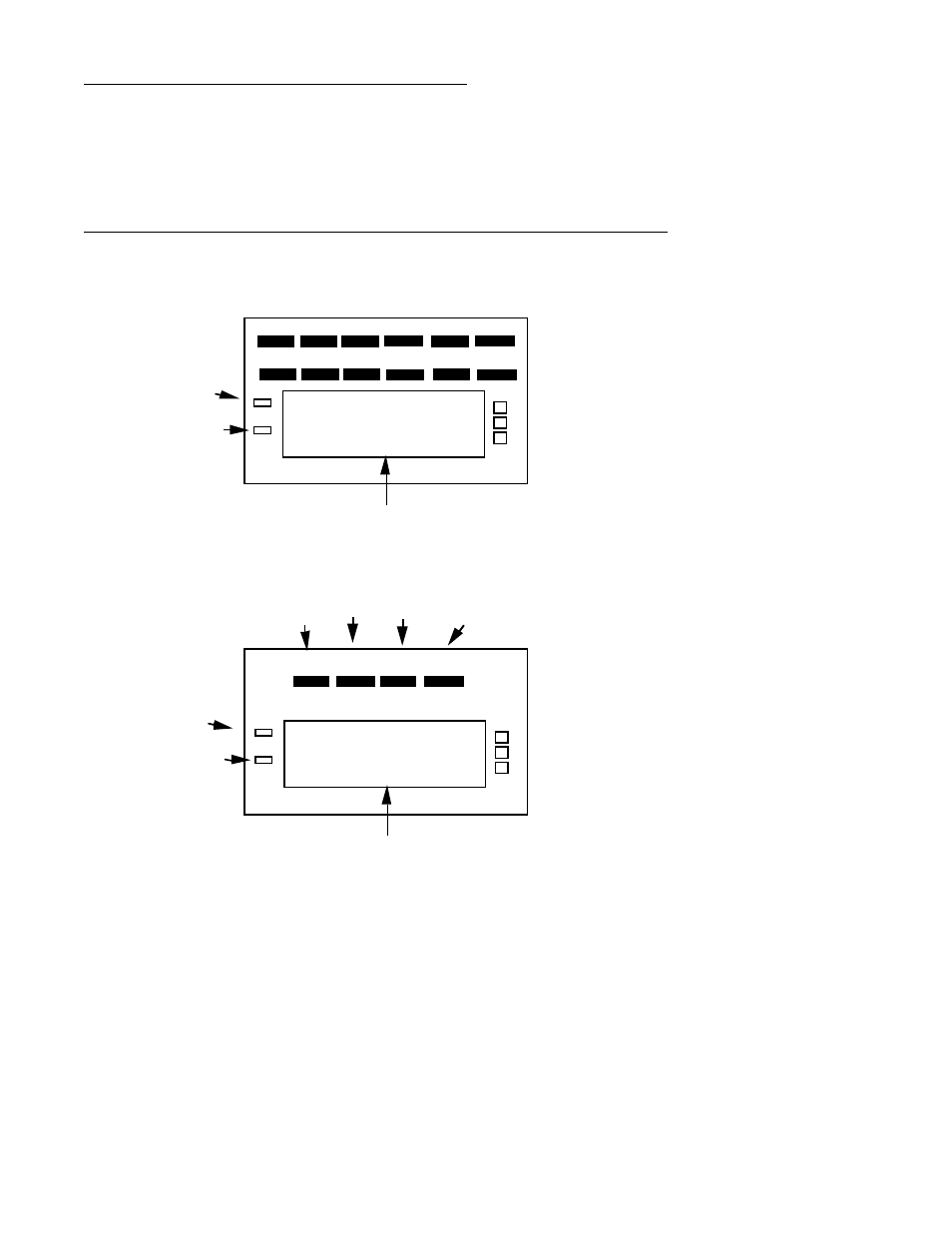

FIGURE 1-2
Digital Display
C
F
U Minus
Sign
SP Setpoint
ALRM OUT2 OUT1 MAN RAMP SOAK
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
Pen 1 Display
Digital Display
C
F
U
Alarm
ALRM
Minus
Sign
OUT2 OUT1 MAN
SP
Manual
Output 1 Output 2
Setpoint
Pen 2 Display (if Present)
