Di2/3, 2-wire transmitter supply 8, Out3 as logic output 8, Out3 transmitter supply 8 – West Control Solutions KS 42-1 User Manual

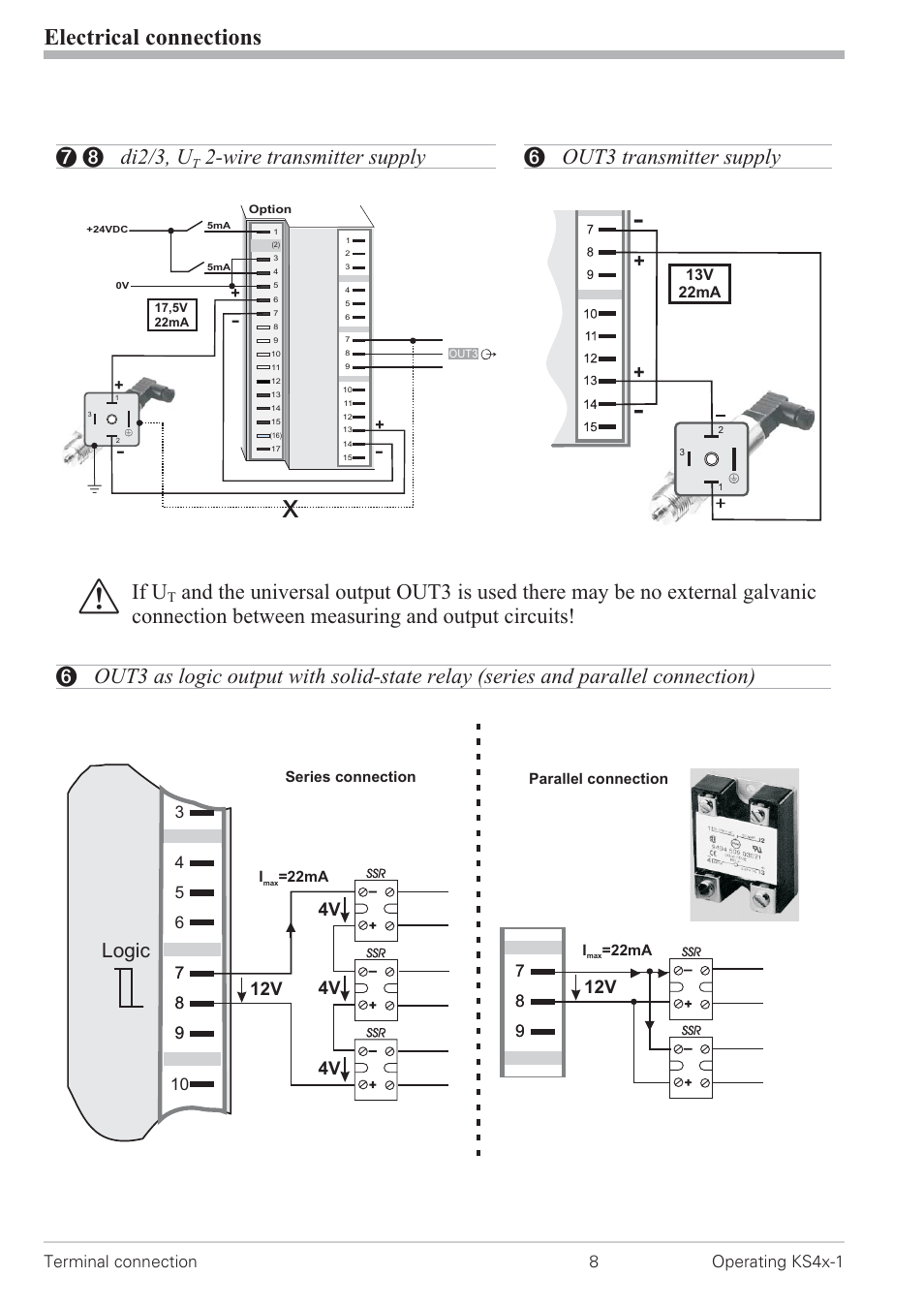

Page 8: Electrical connections, If u, 6 out3 transmitter supply, 7 8 di2/3, u, Wire transmitter supply, Logic, 4v 12v

Text mode
Original mode

Di2/3, 2-wire transmitter supply 8, Out3 as logic output 8, Out3 transmitter supply 8 | Electrical connections, If u, 6 out3 transmitter supply, 7 8 di2/3, u, Wire transmitter supply, Logic, 4v 12v | West Control Solutions KS 42-1 User Manual | Page 8 / 60
