Installation and operating instructions 47 BATCHFLUX

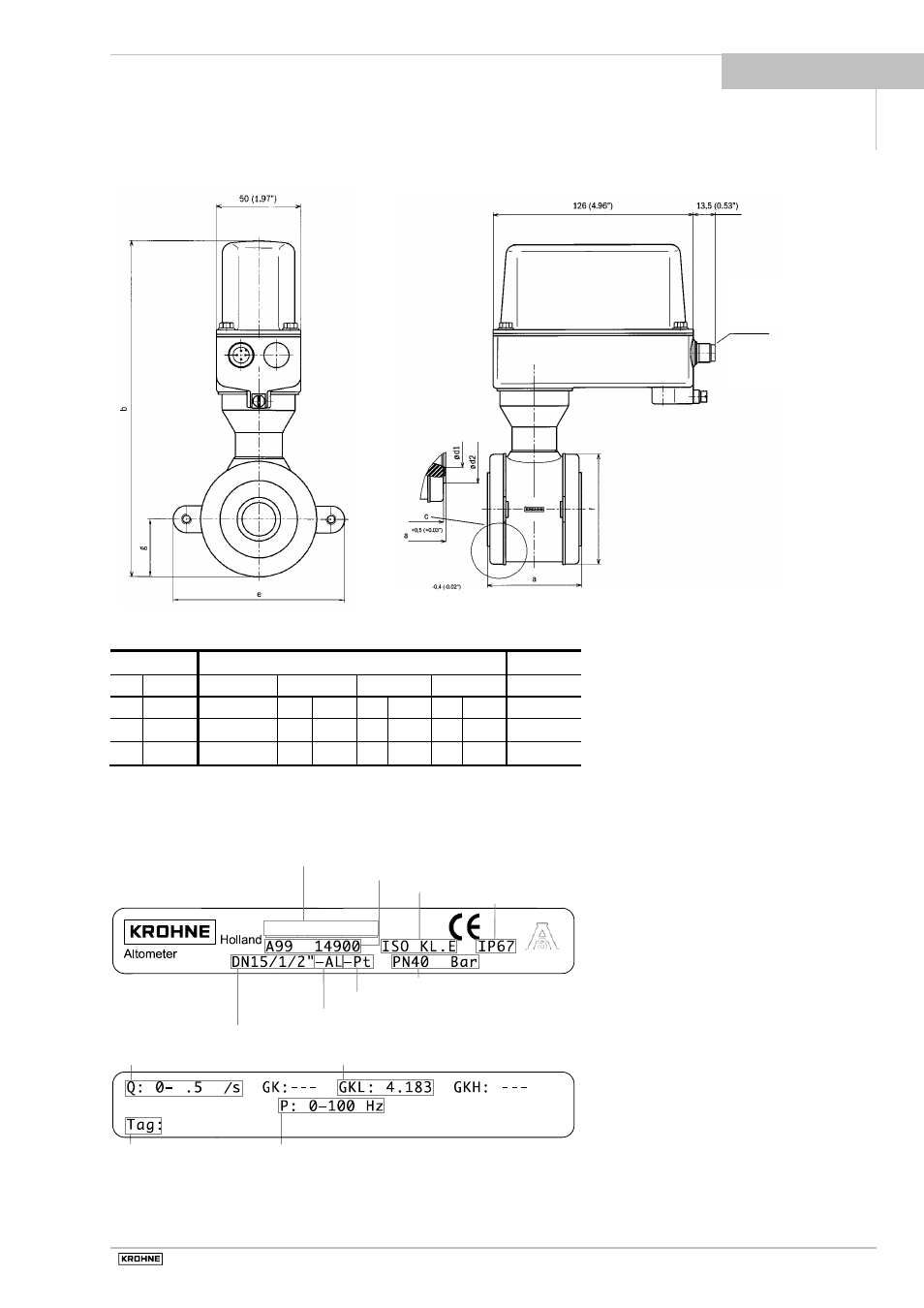

DN 25 – 40 / 1“ – 1½“
Meter size Dimensions in mm (inches) Weight
DN inches a b f g kg (lb)
25 1 58 (2.28) 200 (7.87) 66 (2.68) 34 (1.34) 1.6 (3.6)
32 1 1 /
4
83 (3.27) 215 (8.46) 81 (3.19) 42 (1.65) 2.3 (5.1)
40 1 1 /
2
83 (3.27) 215 (8.46) 81 (3.19) 42 (1.65) 2.3 (5.1)
10.6 Instrument nameplates
miniature
circular
connector
series 713,
4-pin
10
l
Type designation
Serial No.
Insulation class of field coils
Protection category to IEC529/EN60529
Pressure rating/flange class
Electrode material: platinum
Measuring tube material: Al
2
O
3
aluminium oxide
Meter size: DN mm and inches
Measuring range Primary constant
28-03
IFM 5015 K /B /2
