Installation and operating instructions 15 BATCHFLUX
3 Start-up
Before powering the system, check that it has
been correctly installed according to Sections 1
and 2.
The compact flowmeter is delivered ready for
operational use. All operating data have been
factory set in accordance with your
specifications.
Power the unit, and the flowmeter will
immediately start process flow measurement.
3.1 Check for availability
Please note!
Do not open the housing of the BATCHFLUX IFM 5015 K.
Danger of contamination with substances likely to destroy the moisture barrier of the electronic
equipment (e.g. if CIP or SIP cleaned from the outside).
Therefore, please contact your KROHNE Service engineer before you open the housing.
•

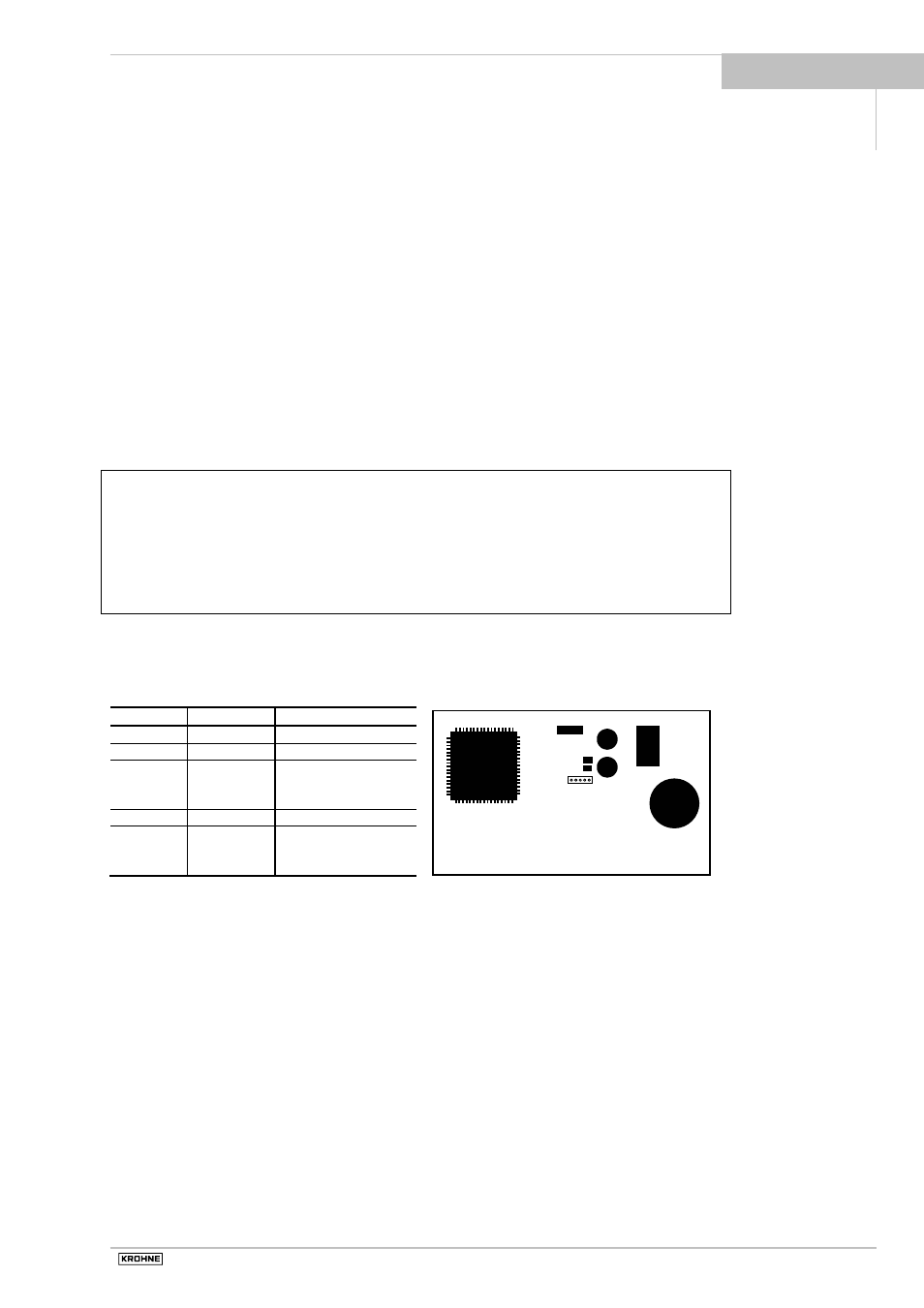

The measurement status is signalled by the
light-emitting diodes (LED) below the cover
of the converter housing (see amplifier
board on right).
LED 1 LED 2 Function
flashing off in order
flashing flashing overdriving
on flashing Fatal Error
(defective operating
parameter)
off on defective hardware
off off no supply voltage
or hardware
is defective
•
Refer to Section 6 for operator control.
Furthermore, external facilities (hand-held
communicator HHT 010, PC, etc.) can be
connected on the pc board of the control
electronics via the IMoCom interface. This will
enable precise checking of the correct mode of
operation of the Batchflux IFM 5015 K.
All operating data can be set and stored by
means of a personal computer via the IMoCom
interface. The digital IMoCom interface allows
the complete filling procedure to be graphically
represented on the PC, thus providing
visualization of system and valve properties.
3
LED 1
LED 2
